User Manual of Network Video Recorder
202

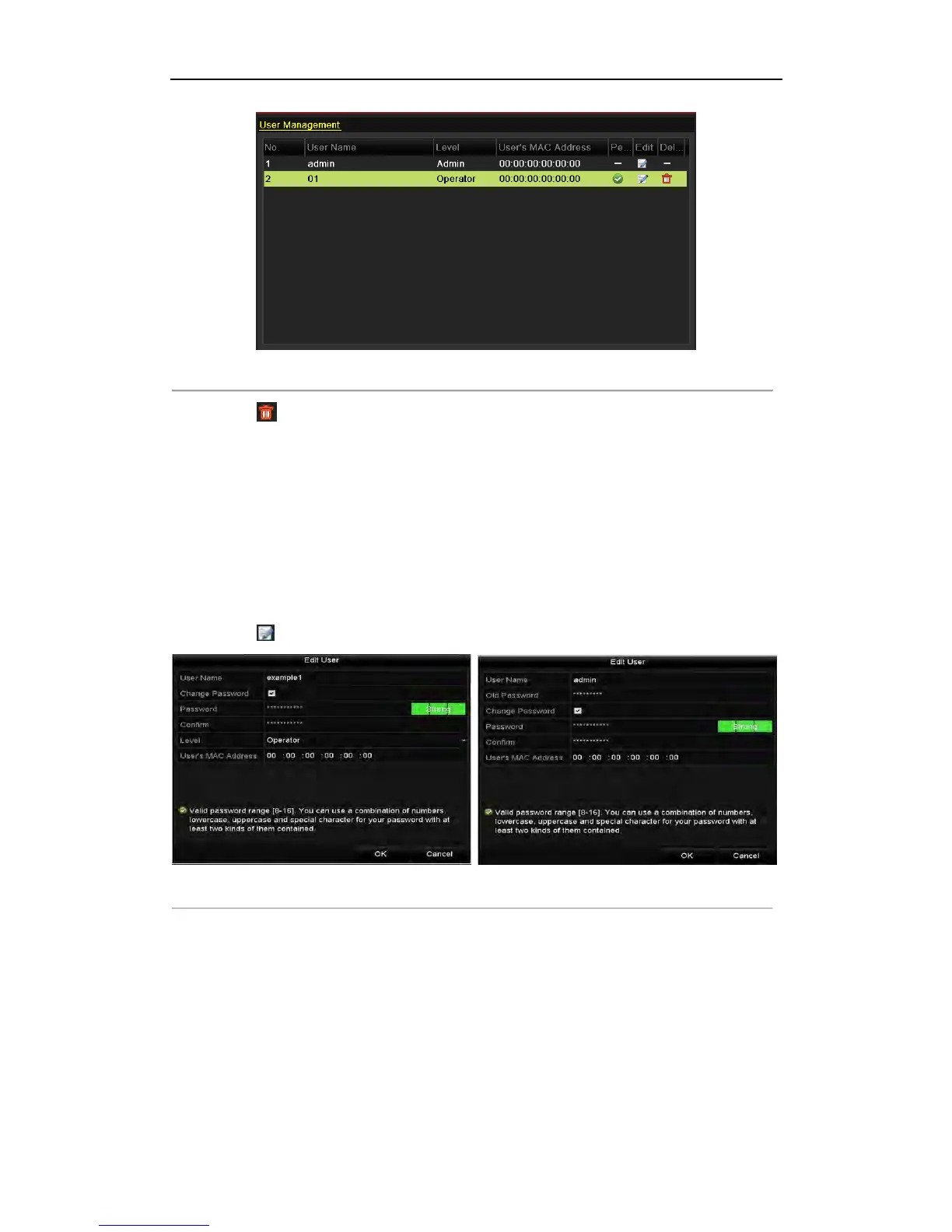

Figure 15. 9 User List
3. Click the icon to delete the selected user account.
15.5.3 Editing a User
For the added user accounts, you can edit the parameters.
Steps:
1. Enter the User Management interface.
Menu >Configuration>User
2. Select the user to be edited from the list, as shown in Figure 15. 9.
3. Click the icon to enter the Edit User interface, as shown in Figure 15. 10.
Figure 15. 10 Edit User Interface
4. Edit the corresponding parameters.
Operator and Guest
You can edit the user information, including user name, password, permission level and MAC address.
Check the checkbox of Change Password if you want to change the password, and input the new
password in the text field of Password and Confirm. A strong password is recommended.
Admin
You are only allowed to edit the password and MAC address. Check the checkbox of Change Password
if you want to change the password, and the input the correct old password, and the new password in the
text field of Password and Confirm.

Table of Contents

Other manuals for HIKVISION DS-7604NI-E1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7604NI-E1 and is the answer not in the manual?

HIKVISION DS-7604NI-E1 Specifications

General IconGeneral
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Video input channels4 channels
Supported resolutions1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supportedH.264+
HDMI outputYes
Card reader integratedNo
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Product colorBlack
Rack capacity1U
Output voltage12 V
Power consumption (typical)10 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
HDD capacity- GB
HDD interfaceSerial ATA
Maximum storage capacity4 TB
Number of HDDs installed0
Weight and Dimensions IconWeight and Dimensions
Depth230 mm
Width315 mm
Height45 mm
Weight1000 g
