HIKVISION DS-7604NI-E1 User Manual

User Manual of Network Video Recorder
196
15.2 Configuring General Settings
Purpose:
You can configure the BNC output standard, VGA output resolution, mouse pointer speed through the Menu >
Configuration > General interface.
Steps:
1. Enter the General Settings interface.
Menu >Configuration> General
2. Select the General tab.

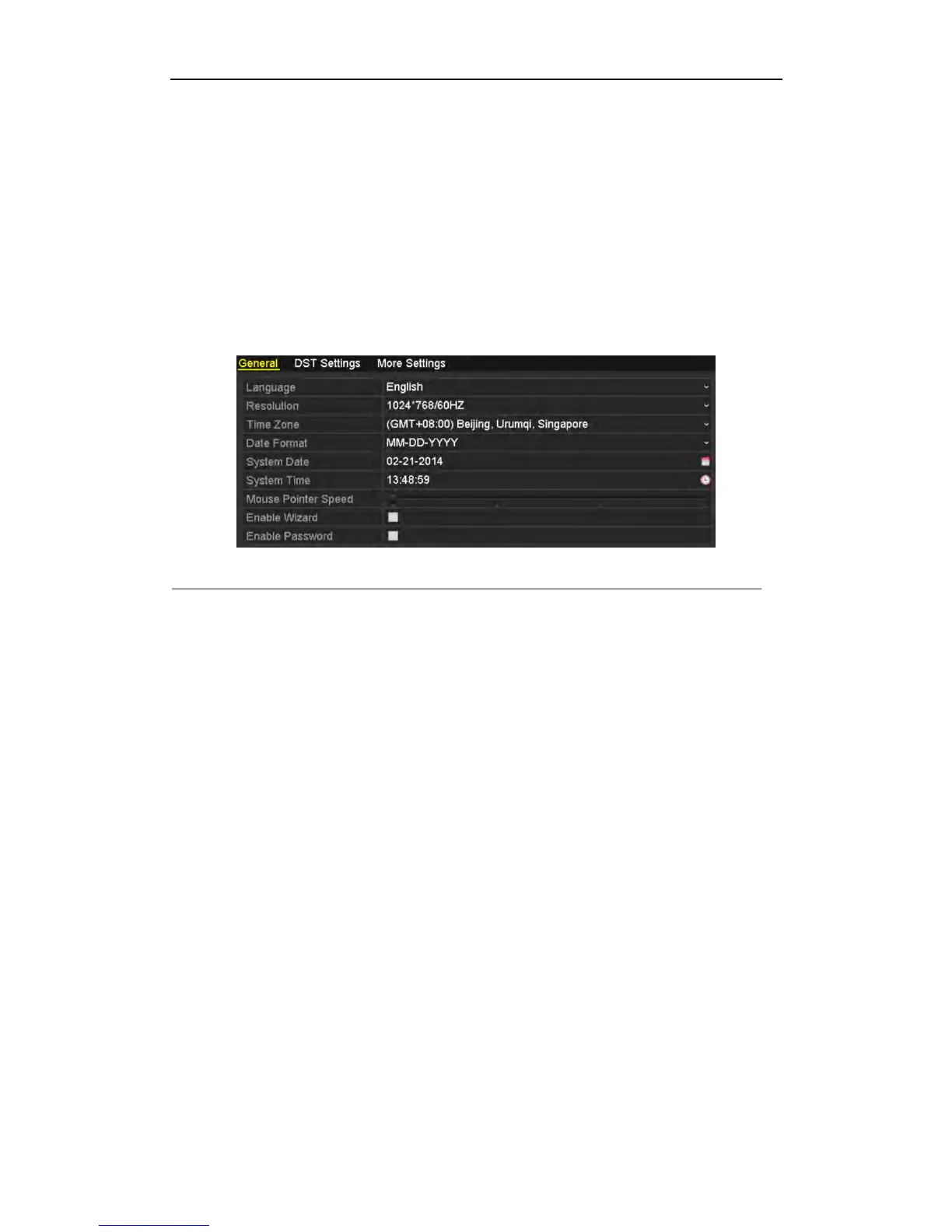

Figure 15. 2 General Settings Interface
3. Configure the following settings:
• Language: The default language used is English.
• Resolution: Select the resolution for the video output, which must be the same with the resolution of the
monitor screen.
• Time Zone: Select the time zone.
• Date Format: Select the date format.
• System Date: Select the system date.
• System Time: Select the system time.
• Mouse Pointer Speed: Set the speed of mouse pointer; 4 levels are configurable.
• Enable Wizard: Enable/disable the Wizard when the device starts up.
• Enable Password: Enable/disable the use of the login password.
4. Click the Apply button to save the settings.

HIKVISION DS-7604NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
HDMI output	Yes
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1U
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0

Weight and Dimensions

Depth	230 mm
Width	315 mm
Height	45 mm
Weight	1000 g
