User Manual of Network Video Recorder
138
10.2 Behavior Search
Purpose:
The behavior analysis detects a series of suspicious behavior based on VCA detection, and certain linkage methods
will be enabled if the alarm is triggered.
Steps:
1. Enter the Behavior Search interface.
Menu>VCA Search> Behavior Search
2. Select the camera (s) for the behavior search.
3. Specify the start time and end time for searching the matched pictures.

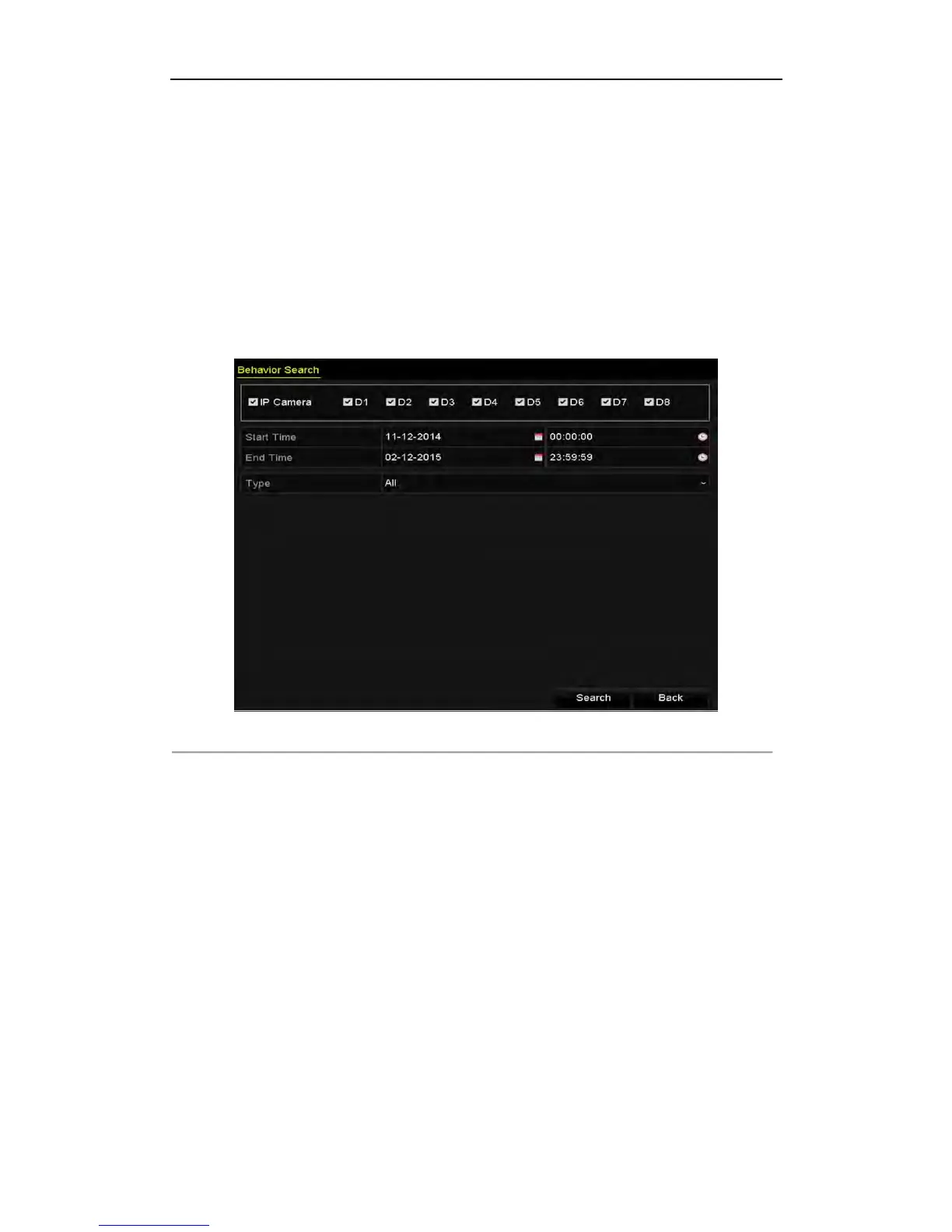

Figure 10. 4 Behavior Search Interface
4. Select the VCA detection type from the dropdown list, including the line crossing detection, intrusion
detection, unattended baggage detection, object removal detection, region entrance detection, region exiting
detection, parking detection, loitering detection, people gathering detection and fast moving detection.
5. Click Search to start searching. The search results of pictures are displayed in list or in chart.

HIKVISION DS-7604NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
HDMI output	Yes
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1U
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0

Weight and Dimensions

Depth	230 mm
Width	315 mm
Height	45 mm
Weight	1000 g
