User Manual of Network Video Recorder
195
15.1 Configuring RS-232 Serial Port
The RS-232 is provided by the DS-8600NI-E8 and DS-7700NI-E4 series NVR only.
Purpose:
The RS-232 port can be used in two ways:
Parameters Configuration: Connect a PC to the NVR through the PC serial port. Device parameters can be
configured by using software such as HyperTerminal. The serial port parameters must be the same as the
NVR’s when connecting with the PC serial port.
Transparent Channel: Connect a serial device directly to the NVR. The serial device will be controlled
remotely by the PC through the network and the protocol of the serial device.
Steps:
1. Enter the RS-232 Settings interface.
Menu >Configuration> RS-232

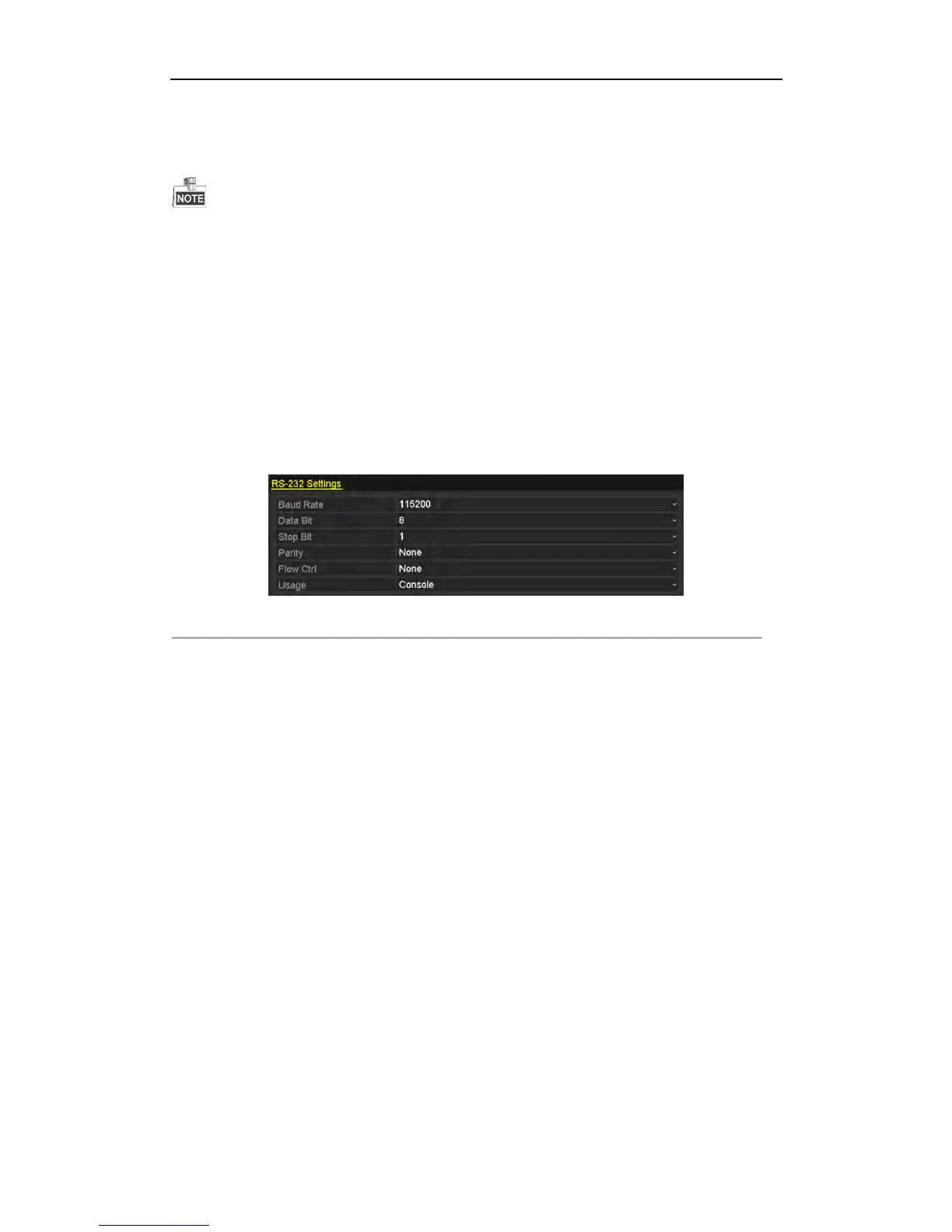

Figure 15. 1 RS-232 Settings Interface
2. Configure RS-232 parameters, including baud rate, data bit, stop bit, parity, flow control and usage.
3. Click the Apply button to save the settings.

Table of Contents

Other manuals for HIKVISION DS-7604NI-E1

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7604NI-E1 and is the answer not in the manual?

HIKVISION DS-7604NI-E1 Specifications

General IconGeneral
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Video input channels4 channels
Supported resolutions1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supportedH.264+
HDMI outputYes
Card reader integratedNo
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports1
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Product colorBlack
Rack capacity1U
Output voltage12 V
Power consumption (typical)10 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
HDD capacity- GB
HDD interfaceSerial ATA
Maximum storage capacity4 TB
Number of HDDs installed0
Weight and Dimensions IconWeight and Dimensions
Depth230 mm
Width315 mm
Height45 mm
Weight1000 g
