HIKVISION DS-7604NI-E1 User Manual

User Manual of Network Video Recorder
148

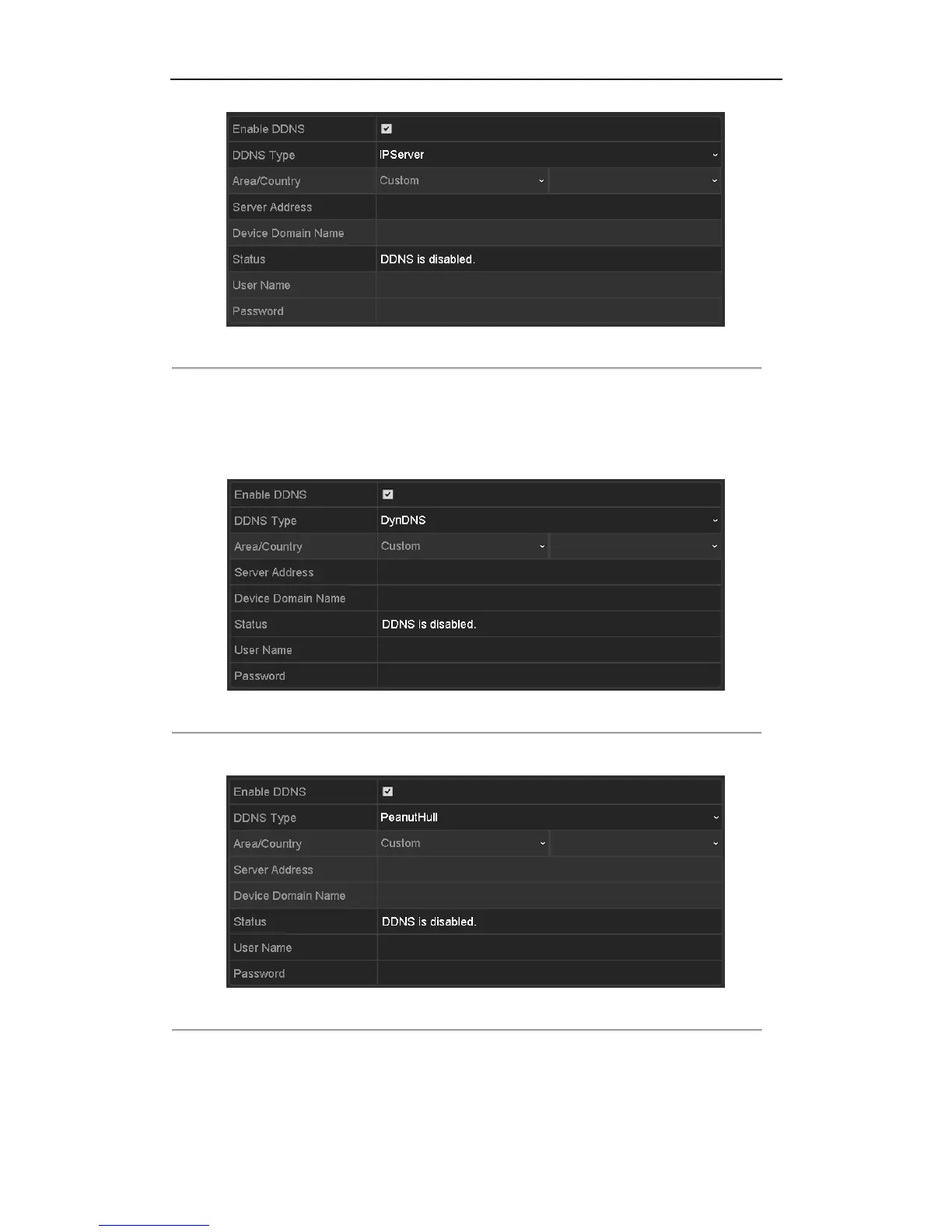

Figure 11. 5 IPServer Settings Interface
• DynDNS:
1) Enter Server Address for DynDNS (i.e. members.dyndns.org).
2) In the NVR Domain Name text field, enter the domain obtained from the DynDNS website.
3) Enter the User Name and Password registered in the DynDNS website.
Figure 11. 6 DynDNS Settings Interface
• PeanutHull: Enter the User Name and Password obtained from the PeanutHull website.
Figure 11. 7 PeanutHull Settings Interface
• NO-IP:
Enter the account information in the corresponding fields. Refer to the DynDNS settings.
1) Enter Server Address for NO-IP.

HIKVISION DS-7604NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
HDMI output	Yes
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1U
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0

Weight and Dimensions

Depth	230 mm
Width	315 mm
Height	45 mm
Weight	1000 g
