User Manual of Network Video Recorder
158
2) Click Apply button to save the settings.
3) You can click Refresh button to get the latest status of the port mapping.

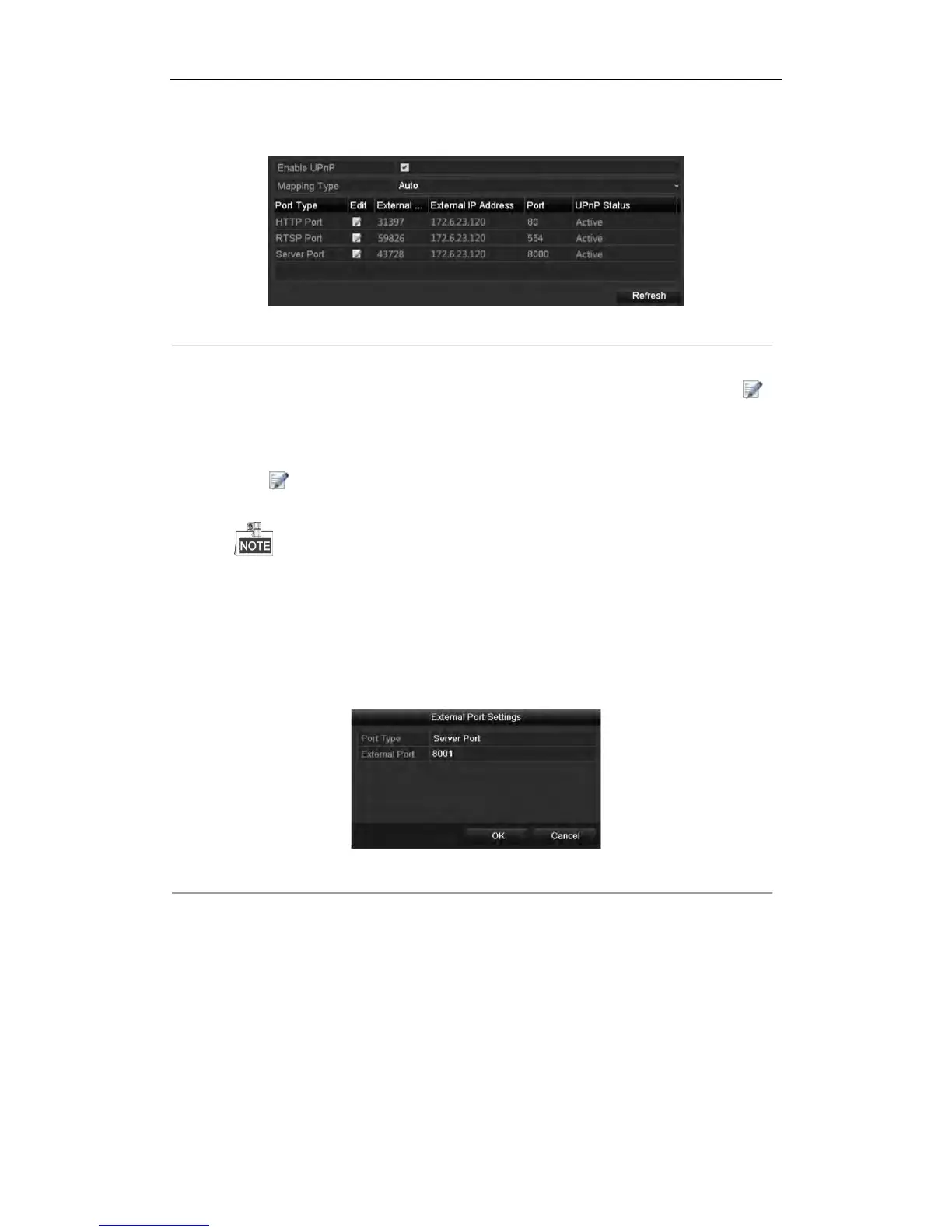

Figure 11. 24 UPnP™ Settings Finished-Auto
OPTION 2: Manual
If you select Manual as the mapping type, you can edit the external port on your demand by clicking to
activate the External Port Settings dialog box.
Steps:
1) Select Manual in the drop-down list of Mapping Type.
2) Click to activate the External Port Settings dialog box. Configure the external port No. for server
port, http port, RTSP port and https port respectively.
You can use the default port No., or change it according to actual requirements.
External Port indicates the port No. for port mapping in the router.
The value of the RTSP port No. should be 554 or between 1024 and 65535, while the value of the
other ports should be between 1 and 65535 and the value must be different from each other. If
multiple devices are configured for the UPnP™ settings under the same router, the value of the
port No. for each device should be unique.
Figure 11. 25 External Port Settings Dialog Box
3) Click Apply button to save the settings.
4) You can click Refresh button to get the latest status of the port mapping.
