User Manual of Network Video Recorder
187

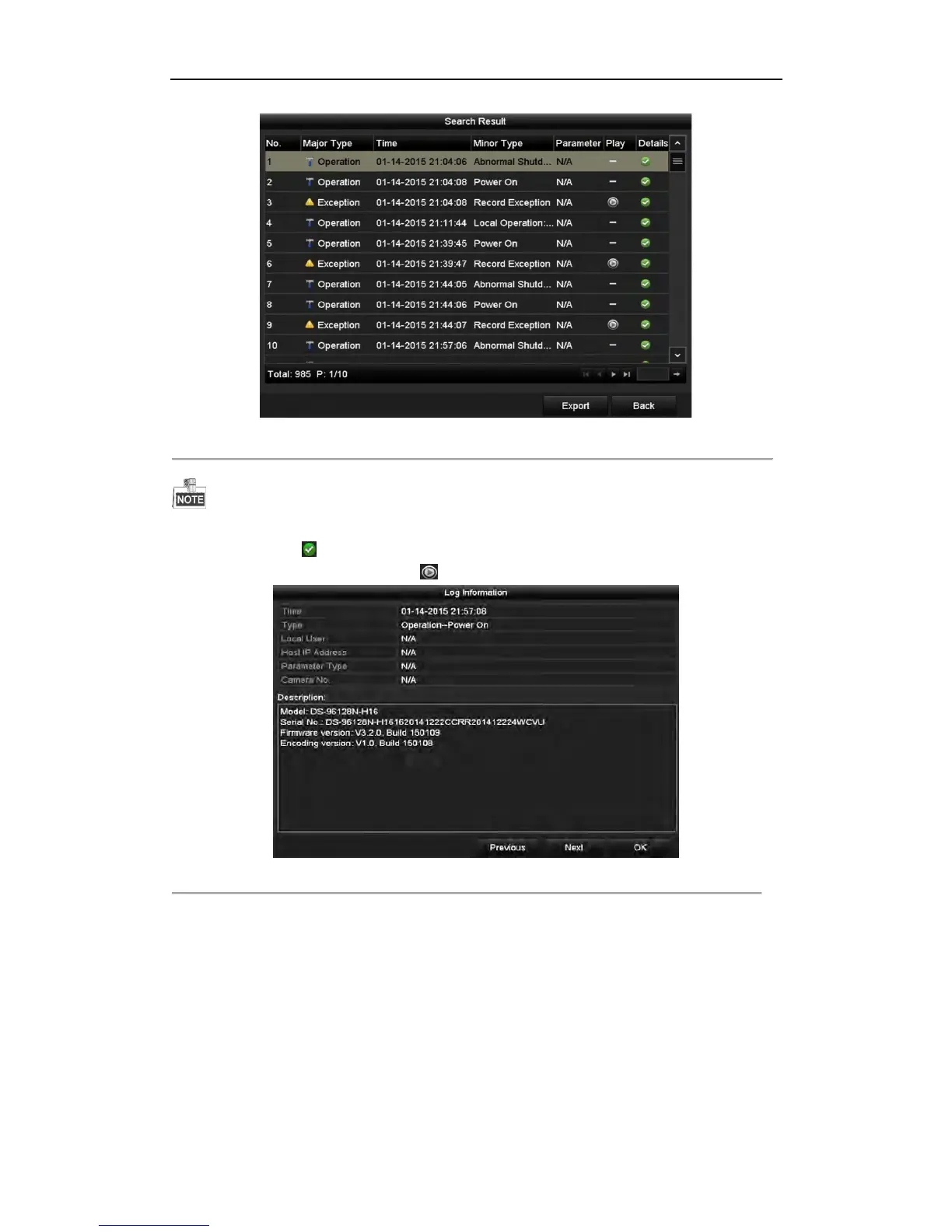

Figure 14. 3 Log Search Results
Up to 2000 log files can be displayed each time.
5. You can click the button of each log or double click it to view its detailed information, as shown in
Figure 14. 4. And you can also click the button to view the related video files if available.
Figure 14. 4 Log Details
6. If you want to export the log files, click the Export button on the Search Result interface to enter the Export
menu, as shown in Figure 14. 5.

HIKVISION DS-7604NI-E1 Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Video input channels	4 channels
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
HDMI output	Yes
Card reader integrated	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1U
Output voltage	12 V
Power consumption (typical)	10 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	- GB
HDD interface	Serial ATA
Maximum storage capacity	4 TB
Number of HDDs installed	0

Weight and Dimensions

Depth	230 mm
Width	315 mm
Height	45 mm
Weight	1000 g
