HIKVISION DS-7604NI-K1 User Manual

Network Video Recorder User Manual
250

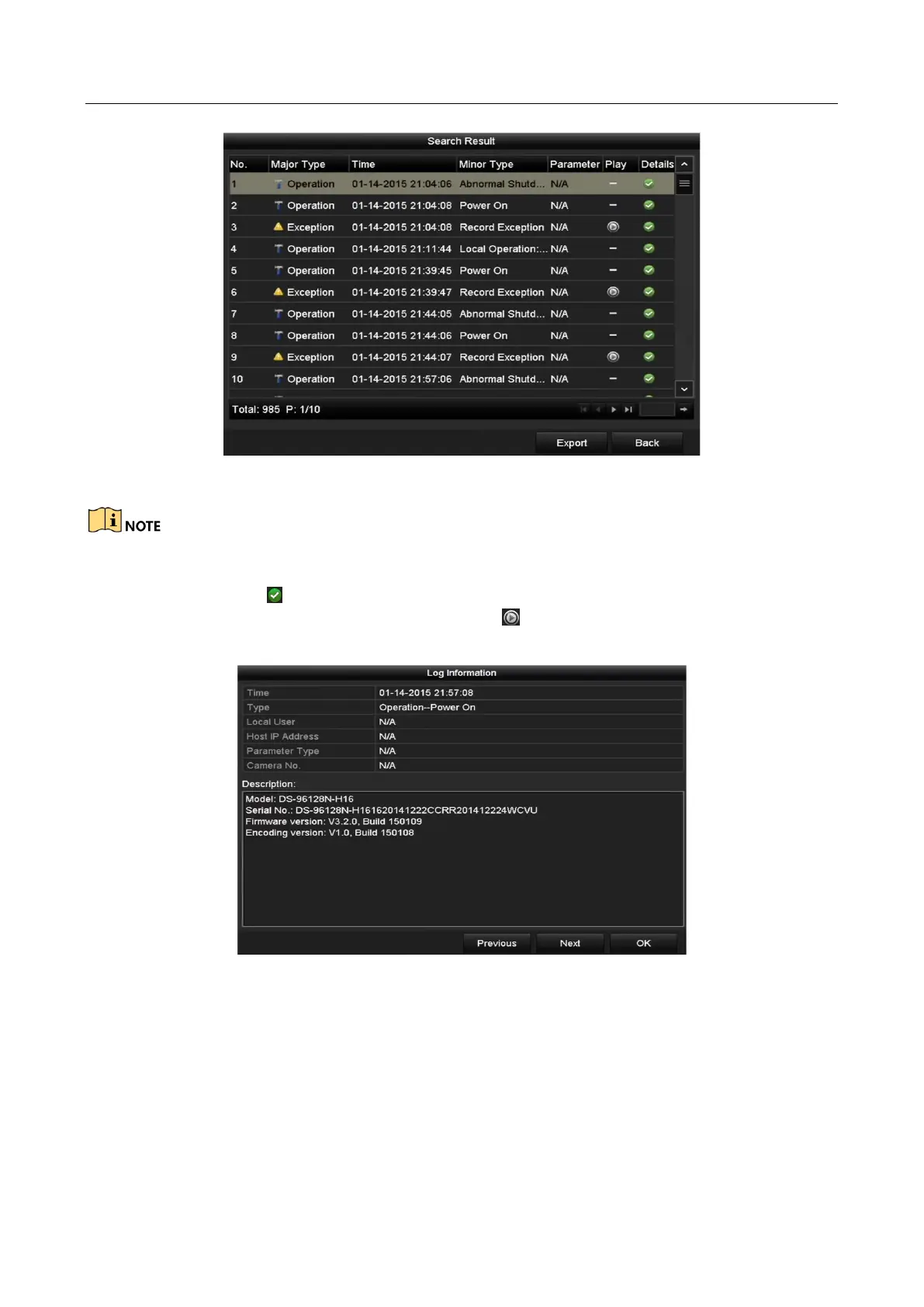

Figure 16-3 Log Search Results
Up to 2000 log files can be displayed each time.
Step 5 You can click the button of each log or double click it to view its detailed information, as
shown in Figure 16-4. And you can also click the button to view the related video files if
available.
Figure 16-4 Log Details
Step 6 If you want to export the log files, click the Export button to enter the Export menu, as
shown in Figure 16-4 Log Details.
You can also click Export All on the Log Search interface (Figure 15.2) to enter the Export
interface (Figure 15.5), and all the system logs will be exported to the backup device.

HIKVISION DS-7604NI-K1 Specifications

General

PTZ control	Yes
Display modes	Full screen, Live view, Playback, Split scren
Maximum frame rate	60 fps
Maximum resolution	3840 x 2160 pixels
Throughput data rate	40 Mbit/s
Video input channels	4 channels
Supported resolutions	3840 x 2160, 3840 x 2160, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768
Video formats supported	H.264, H.264+, H.265, MPEG4
Resolution at capture speed	1280x720@60fps, 1920x1080@60fps, 3840x2160@30fps
Built-in display	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Product color	Black
Rack capacity	1U
Operating temperature (T-T)	-10 - 55 °C
Output voltage	12 V

Weight and Dimensions

Depth	225 mm
Width	260 mm
Height	48 mm
Weight	1000 g
