HIKVISION DS-7604NI-Q1/4P Quick Start Guide

Network Video Recorder Quick Start Guide
9

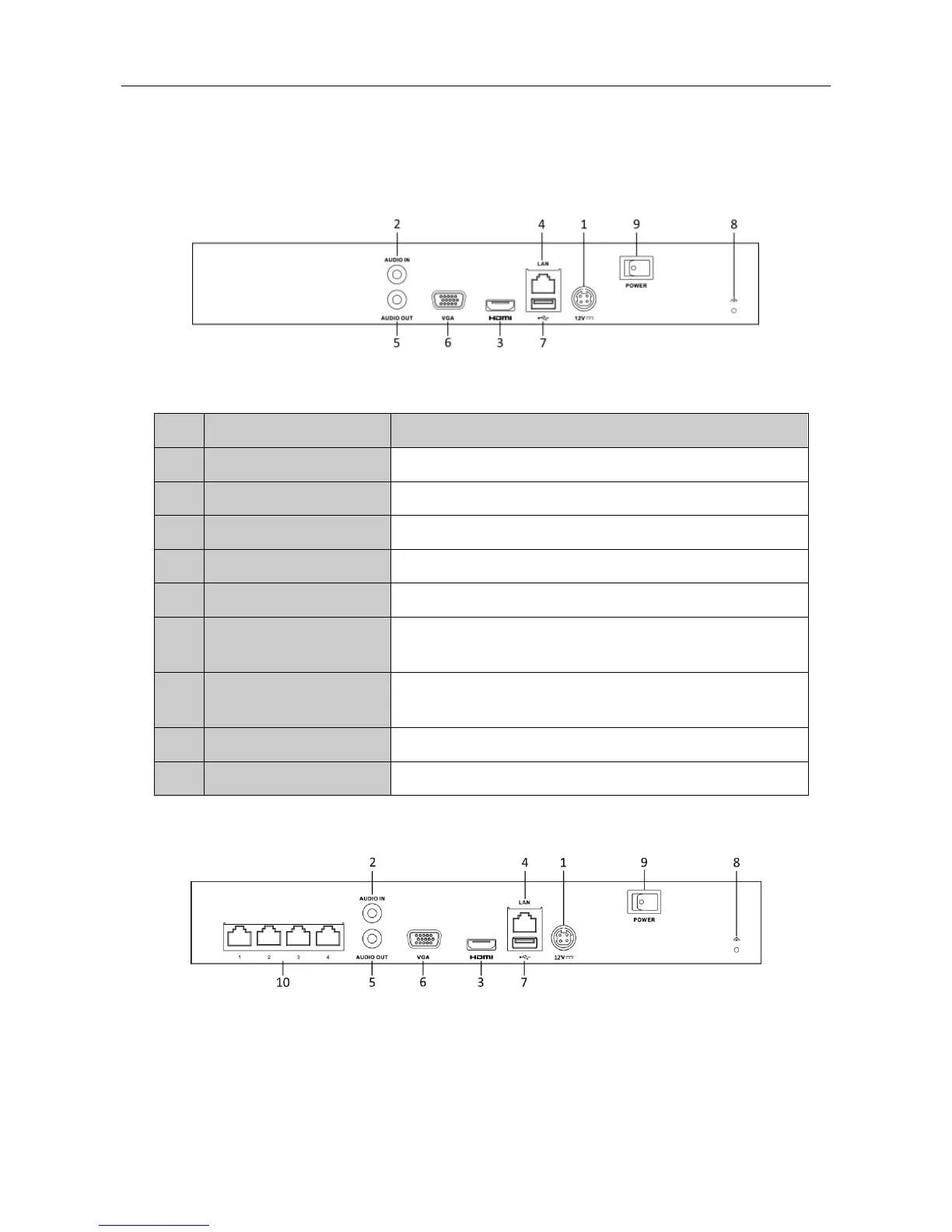

1.2 Rear Panel
DS-7600NI-Q1, DS-7600NI-K1 (B) and DS-7600NI-Q2 Series
Figure 1-4 DS-7600NI-Q1, DS-7600NI-K1 (B)and DS-7600NI-Q2 Series
Table 1-4 Panel Description
DS-7600NI-Q1/P, DS-7600NI-K1/P(B) and DS-7600NI-Q2/P Series
Figure 1-5 DS-7600NI-Q1/4P and DS-7604NI-K1/4P(B) Series
No.
Item
Description
1
Power Supply
12 VDC power supply.
2
Audio In
RCA connector for audio input.
3
HDMI Interface
HDMI video output connector.
4
LAN Network Interface
1, 10 /100 /1000 Mbps self-adaptive Ethernet interface.
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video
output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices
such as USB mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
