Network Video Recorder Quick Start Guide
19
3.4 Using the Unlock Pattern for Login
For the Admin user, you can configure the unlock pattern for device login.
After the device is activated, you can enter the following interface to configure the device unlock
pattern.
Step 1 Use the mouse to draw a pattern among the 9 dots on the screen. Release the mouse when
the pattern is done.

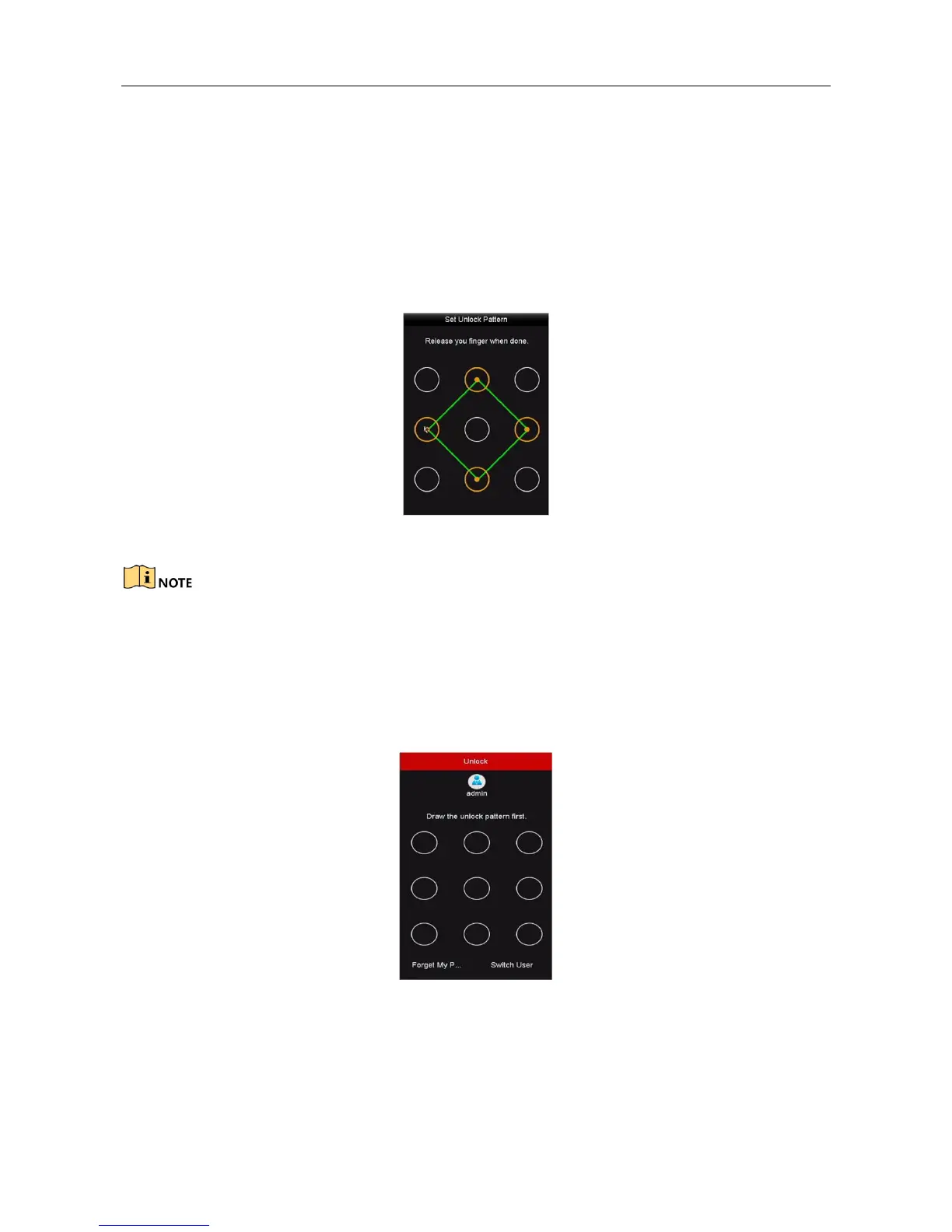

Figure 3-5 Draw the Pattern
Connect at least 4 dots to draw the pattern.
Each dot can be connected for once only.
Step 2 Draw the same pattern again to confirm it. When the two patterns match, the pattern is
configured successfully.
Step 3 You can use the configured unlock pattern for future login.
Figure 3-6 Draw the Unlock Pattern
3.5 User Login
Purpose:
