HIKVISION DS-7604NI-SE/P Quick Start Guide

www.hikvision.com/en/us

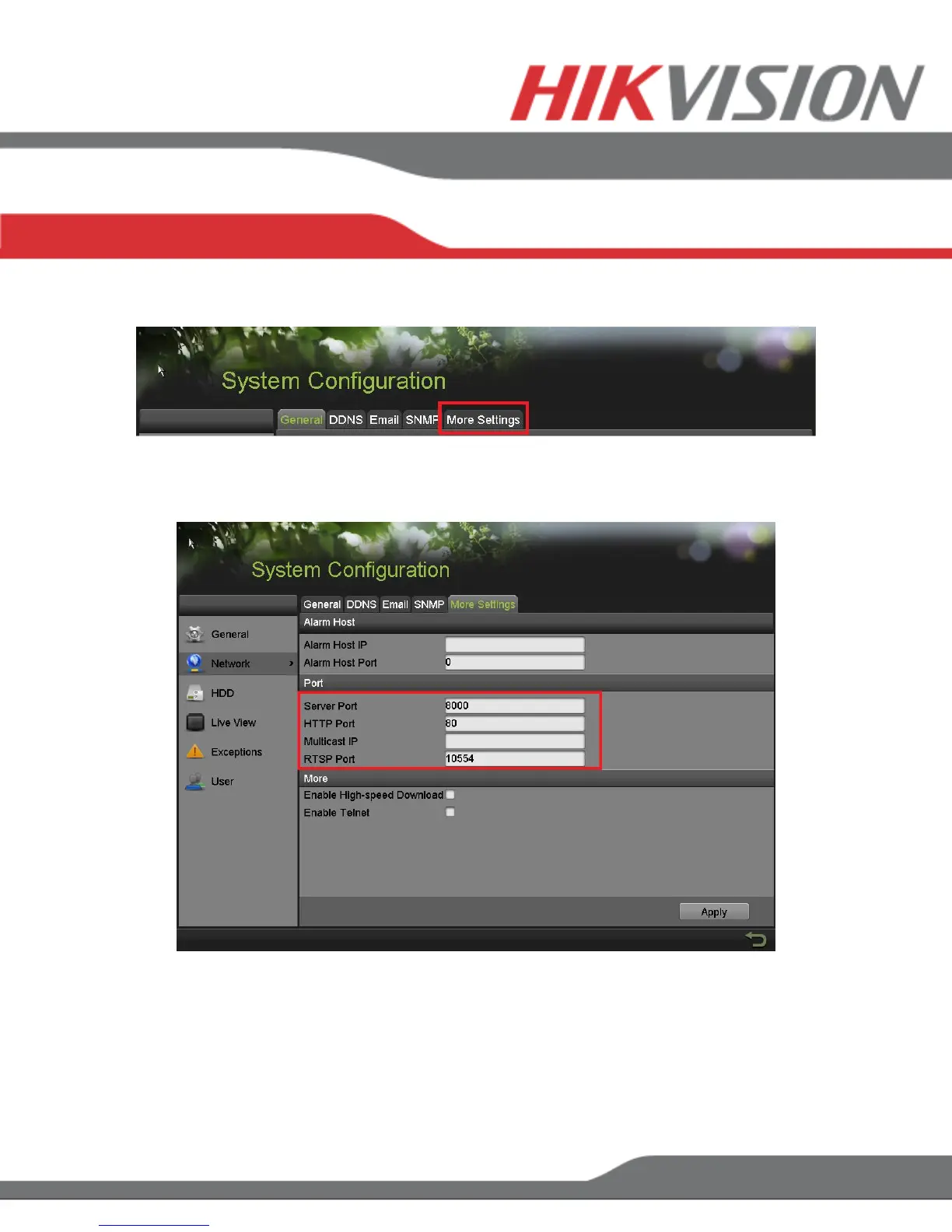

The “MORE SETTINGS” tab contains the ports that need to be forwarded for remote access
.
The SERVER PORT is responsible for the MOBILE APP and CLIENT SOFTWARE log-in.
The HTTP PORT is responsible for WEB BROWSER log-in.
The RTSP PORT is responsible for VIDEO/AUDIO STREAMING.
Units with older firmware have the RTSP PORT set to 554. A lot of cell phone carriers block incoming
data through port 554, which is why Hikvision recommends changing that port to 10554
SETTING UP NETWORK ACCESS

HIKVISION DS-7604NI-SE/P Specifications

General

Product color	Black
Channels quantity	4 channels
Playback resolutions supported	5MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Audio input	1
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	5
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
HDD capacity	1000 GB
HDD interface	Serial ATA
Maximum HDD capacity	4000 GB
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	2000 g
Dimensions (WxDxH)	445 x 290 x 45 mm
