HIKVISION DS-7608NI-K1 Quick Start Guide

Network Video Recorder Quick Start Guide
23
To shut down the NVR:
1. Enter the Shutdown menu.
Menu > Shutdown

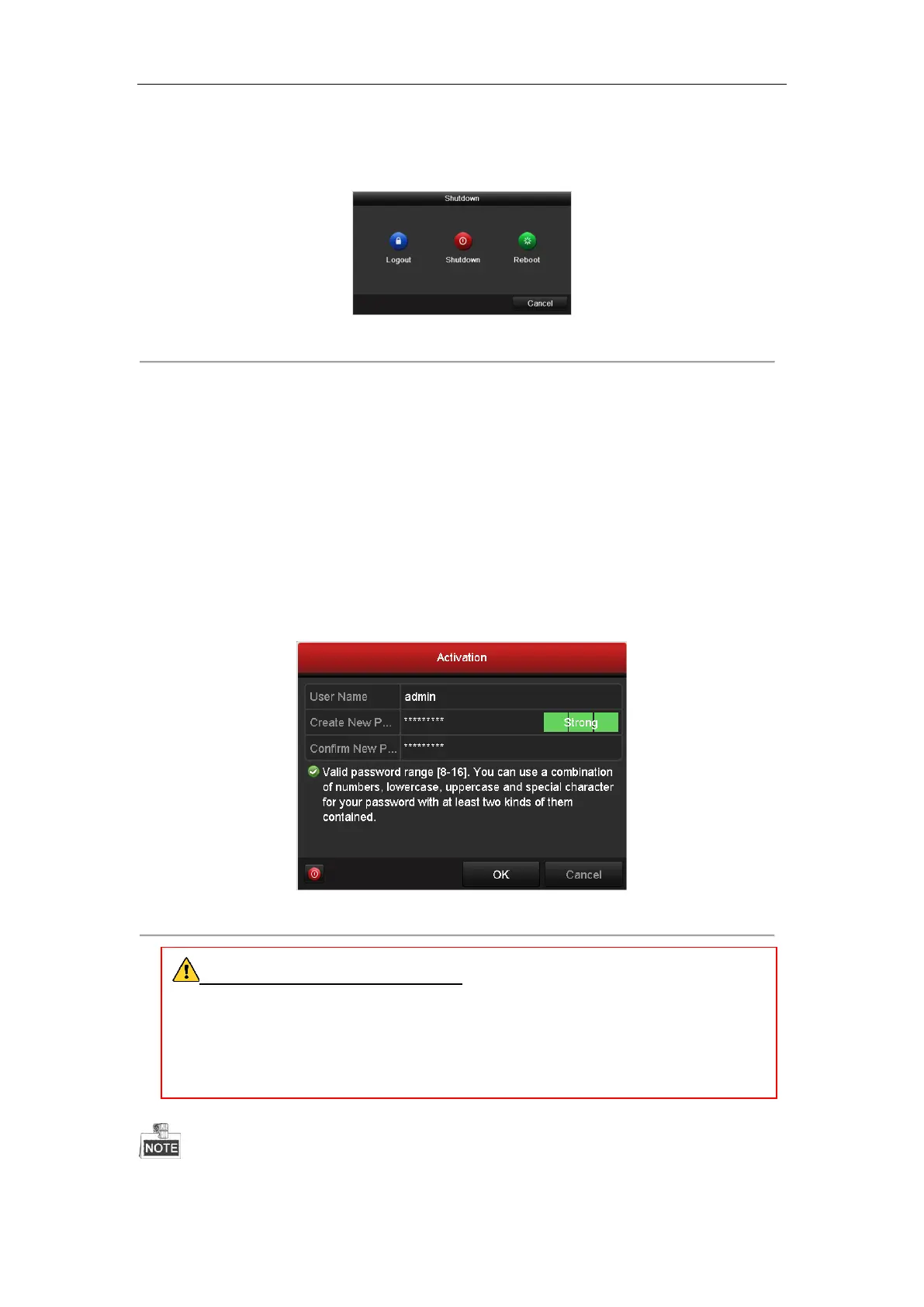

Figure 3. 2 Shutdown
2. Select the Shutdown button.
3. Click the Yes button.
3.3 Activating Your Device
Purpose:
For the first-time access, you need to activate the device by setting an admin password. No operation is allowed
before activation. You can also activate the device via Web Browser, SADP or client software.
Steps:
1. Input the same password in the text field of Create New Password and Confirm New Password.
Figure 3. 3 Set Admin Password
STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password
of your own choosing (Using a minimum of 8 characters, including at least three of the following
categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase
the security of your product. And we recommend you reset your password regularly, especially in the high
security system, resetting the password monthly or weekly can better protect your product.
2. Click OK to save the password and activate the device.
For the old version device, if you upgrade it to the new version, the following dialog box will pop up once the

HIKVISION DS-7608NI-K1 Specifications

General

Audio system	2-way
Video codecs	H.265/H.265+/H.264/H.264+/MPEG4
Input bandwidth	80 Mbit/s
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Supported resolutions	1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Output current	1.8 A
Output voltage	48 V
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	75 W
HDMI output	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Power over Ethernet (PoE) ports quantity	8
HDD capacity	0 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	6 TB
Number of HDDs installed	0
Wi-Fi	No
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	EN 301489-1, EN 301489-19, EN 301489-52, EN 303413, EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 62311:2008
Product color	Black
Rack capacity	1U

Weight and Dimensions

Depth	240 mm
Width	315 mm
Height	48 mm
Weight	1180 g
