HIKVISION DS-7608NI-Q1/8P Quick Start Guide

Network Video Recorder Quick Start Guide
26
 If the device is already activated, enter the user name and password in the login interface,
and click the Login button.

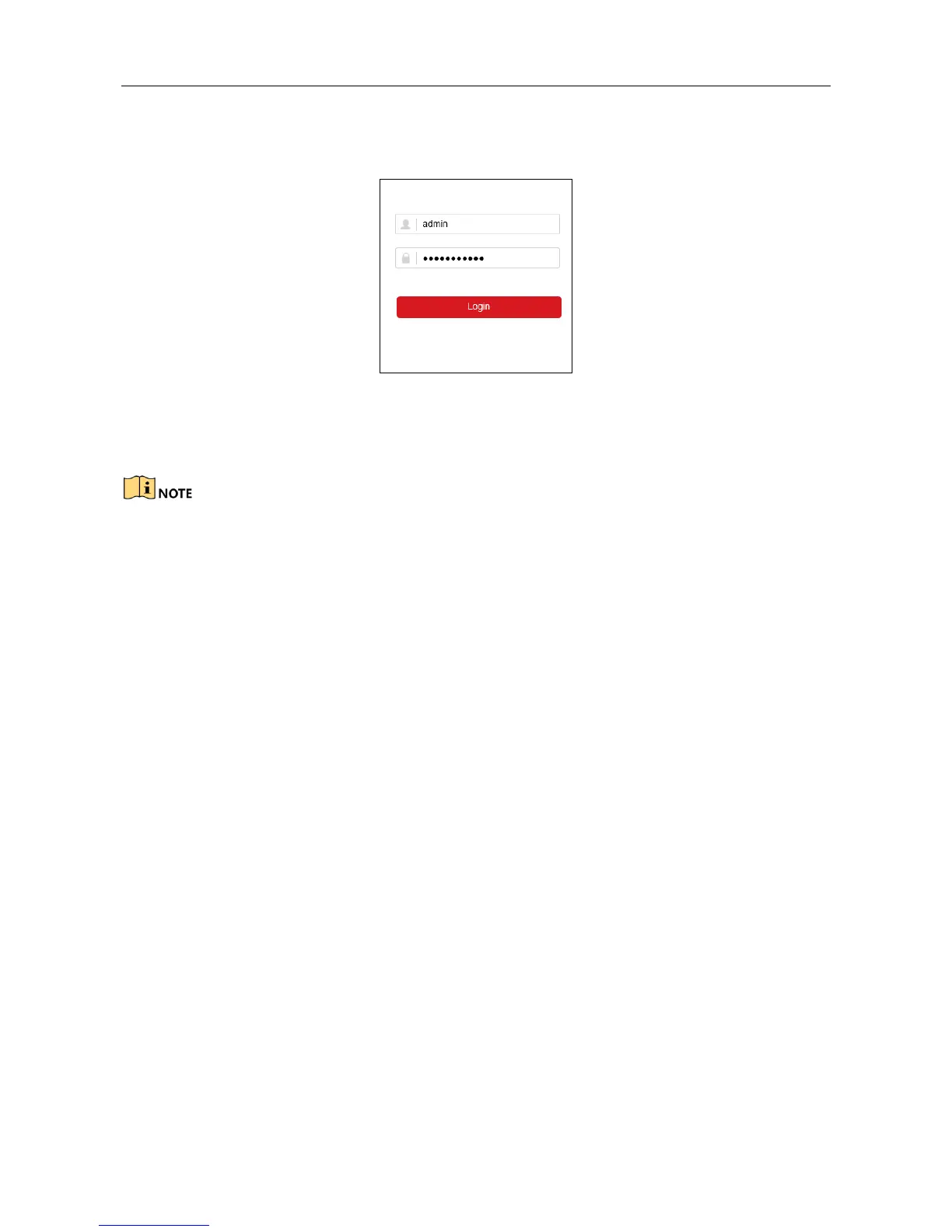

Figure 4-2 Login
Step 3 Install the plug-in before viewing the live video and managing the camera. Please follow the
installation prompts to install the plug-in.
You may have to close the web browser to finish the installation of the plug-in.
After login, you can perform the operation and configuration of the device, including the live view,
playback, log search, configuration, etc.
03041001081019

HIKVISION DS-7608NI-Q1/8P Specifications

General

Two-way talk	Yes
Input bandwidth	80 Mbit/s
Number of users	64 user(s)
Maximum resolution	4096 x 2160 pixels
Video input channels	8 channels
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
Rack capacity	1U
Audio RCA outputs	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100 Mbit/s
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power over Ethernet (PoE) ports quantity	8
Wi-Fi	No
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	10 W
Total Power over Ethernet (PoE) budget	75 W

Weight and Dimensions

Depth	240 mm
Width	320 mm
Height	48 mm
Weight	1000 g
