HIKVISION DS-7608NI-Q1/8P

Network Video Recorder Quick Start Guide
8
Table 1-2 Panel Description
DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series

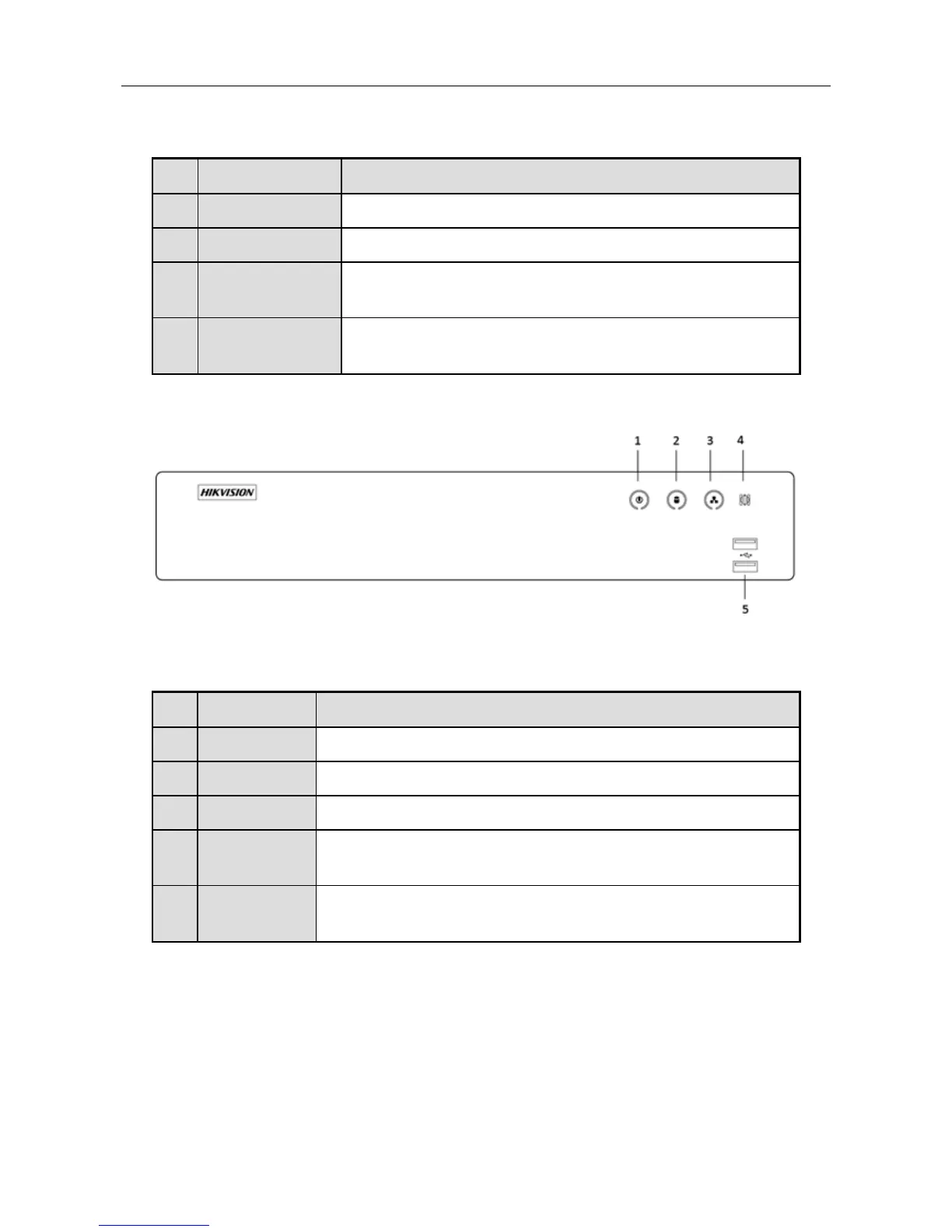

Figure 1-3 DS-7700NI-Q4 (/P) and DS-8600NI-Q8 Series
Table 1-3 Panel Description
No.
Name
Connections
1
POWER
Turns green when device is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers blue when network connection is functioning
properly.
4
USB Interface
Universal Serial Bus (USB) port for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
No.
Name
Connections
1
POWER
Turns white when device is powered up.
2
HDD
Flickers red when data is being read from or written to HDD.
3
Tx/Rx
Flickers white when network connection is functioning properly.
4
Infrared
Receiver
Receiver for IR remote control.
5
USB Interface
Universal Serial Bus (USB) port for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
