User Manual of Digital V
ideo Recorder
140

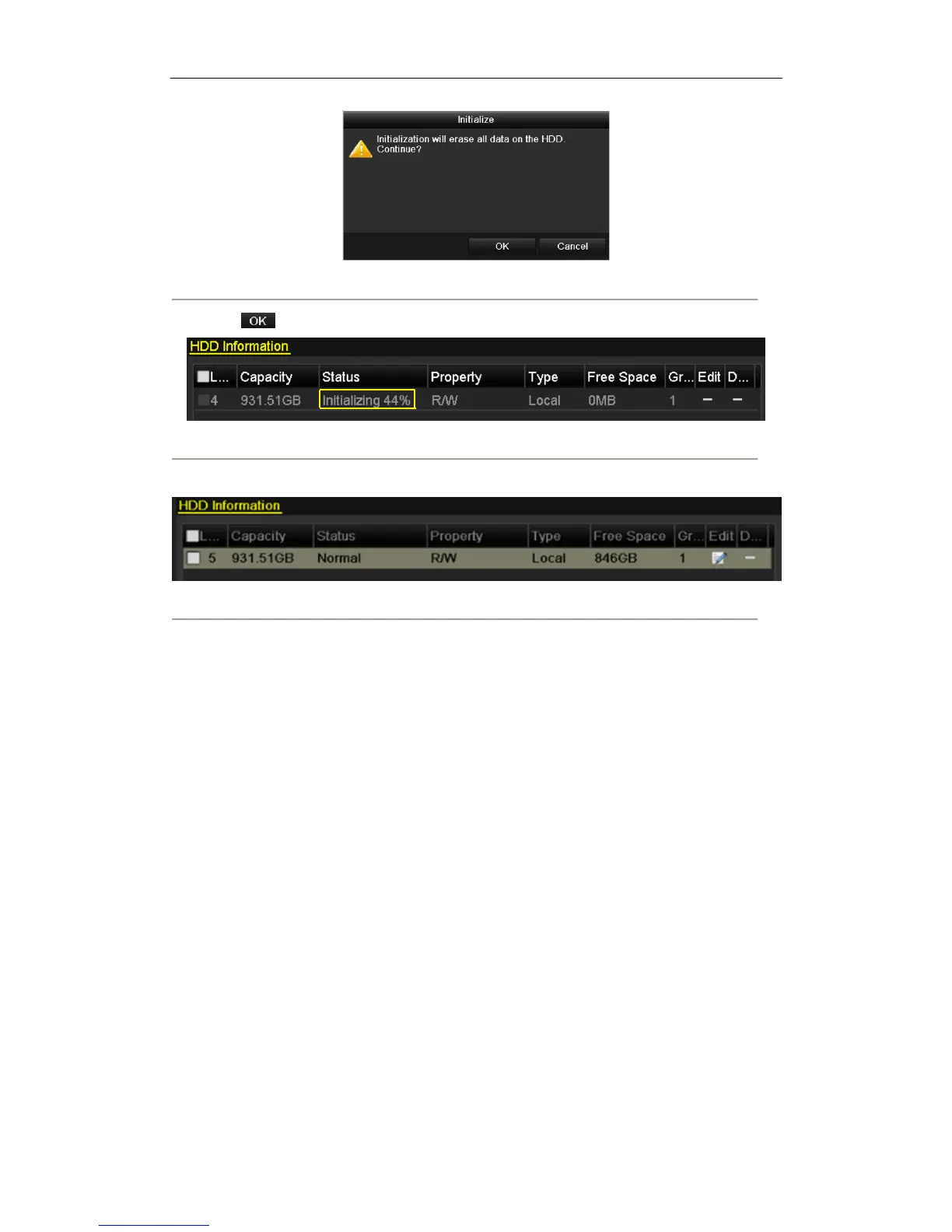

Figure 10. 3
C
onfirm Initialization
4.
Select
to start initialization.
Figure 10. 4
Sta
rt Initialization
5.
After the HDD has been initialized, the status of the HDD will change from
Uninitialized
to
No
rmal
.
Figure 10. 5
HDD Status
Changes to No
rmal
Note:
Initializing the HDD will erase all data on it.
