User Manual of Digital Video Recorder
19

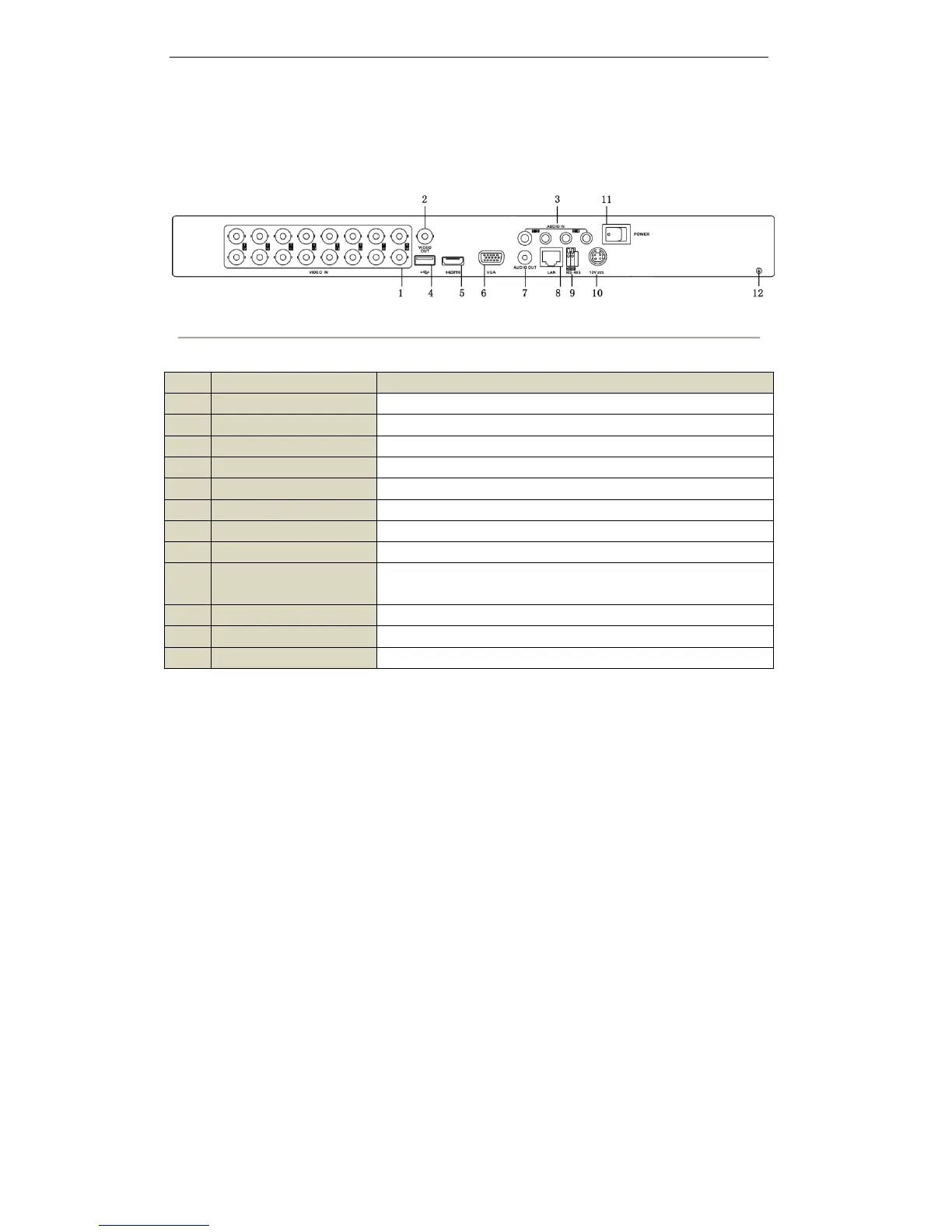

1.5 Rear Panel
Figure 1. 4 Rear Panel
Table 1. 5 Description of Rear Panel
BNC connector for analog video input.
BNC connector for video output.
RCA connector for audio input.
Connects USB mouse or USB flash memory devices.
DB15 connector for VGA output. Display local video output and menu.
RCA connector for audio output.
Connector for RS-485 devices. Connect the D+ and D- terminals to R+
and R- of PTZ receiver respectively.
Switch for turning on/off the device.
Ground (needs to be connected when device starts up).
