User Manual of Digital Video Recorder
53

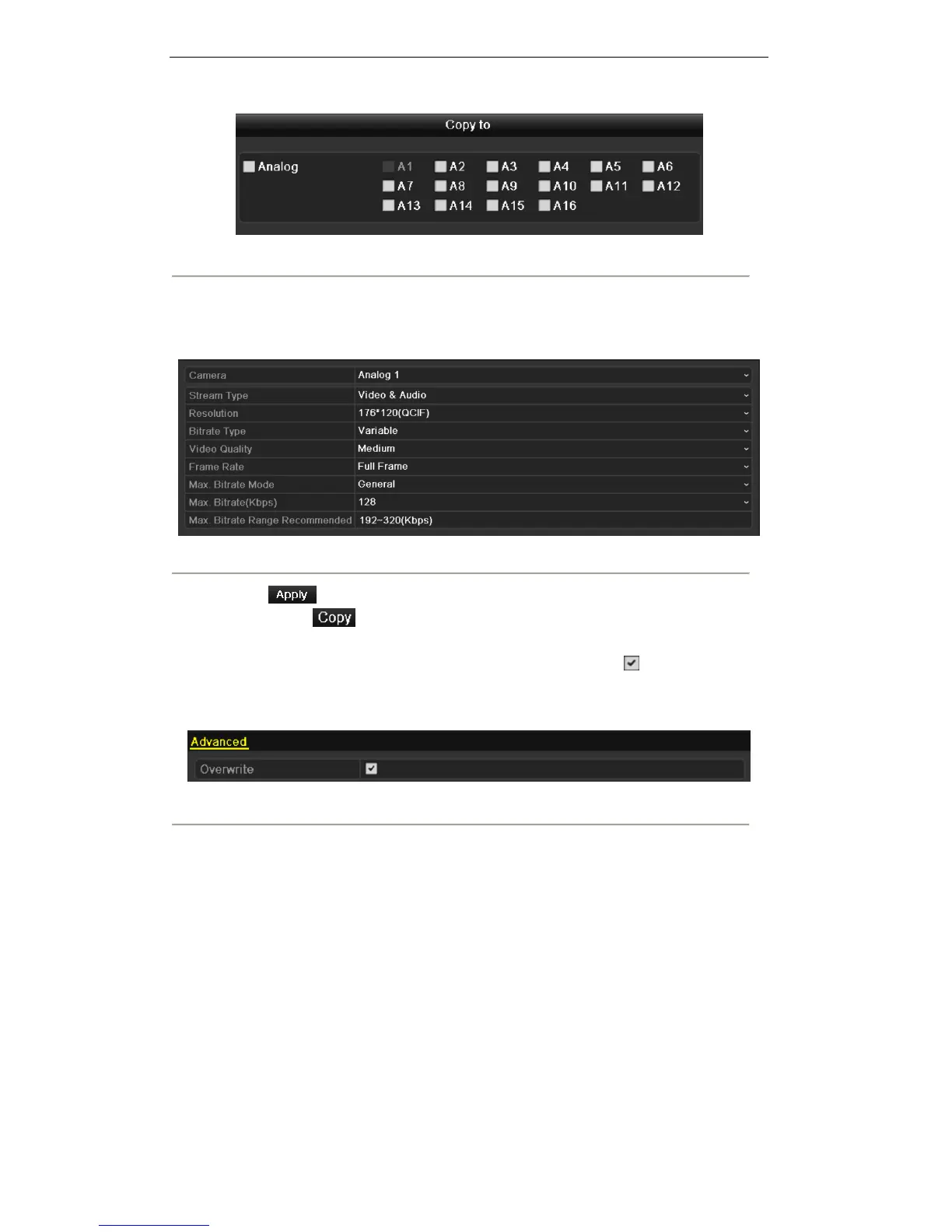

Figure 5. 5 Copy Camera Settings
3. Encoding Parameters for Sub-stream
1) Select Substream tab to set the parameters of sub-stream. Configure the stream type, resolution,
frame rate, etc.
Figure 5. 6 Sub-stream Encoding
2) Click to save the settings.
3) You can click to copy the settings to other analog channels, if the setting can also be used
for other analog channels.
4. Configure the overwrite mode of the HDD (Menu>Record>Advanced). Check checkbox to enable the
overwrite mode, and then the record files will be overwritten when the HDD becomes full. Otherwise, the
recording will stop when the HDD becomes full.
Figure 5. 7 Overwrite Mode
