5.9 Configuring HDD Group for Recording and Capture
Purpose:
You can group the HDDs and save the record files and captured pictures in certain HDD group.

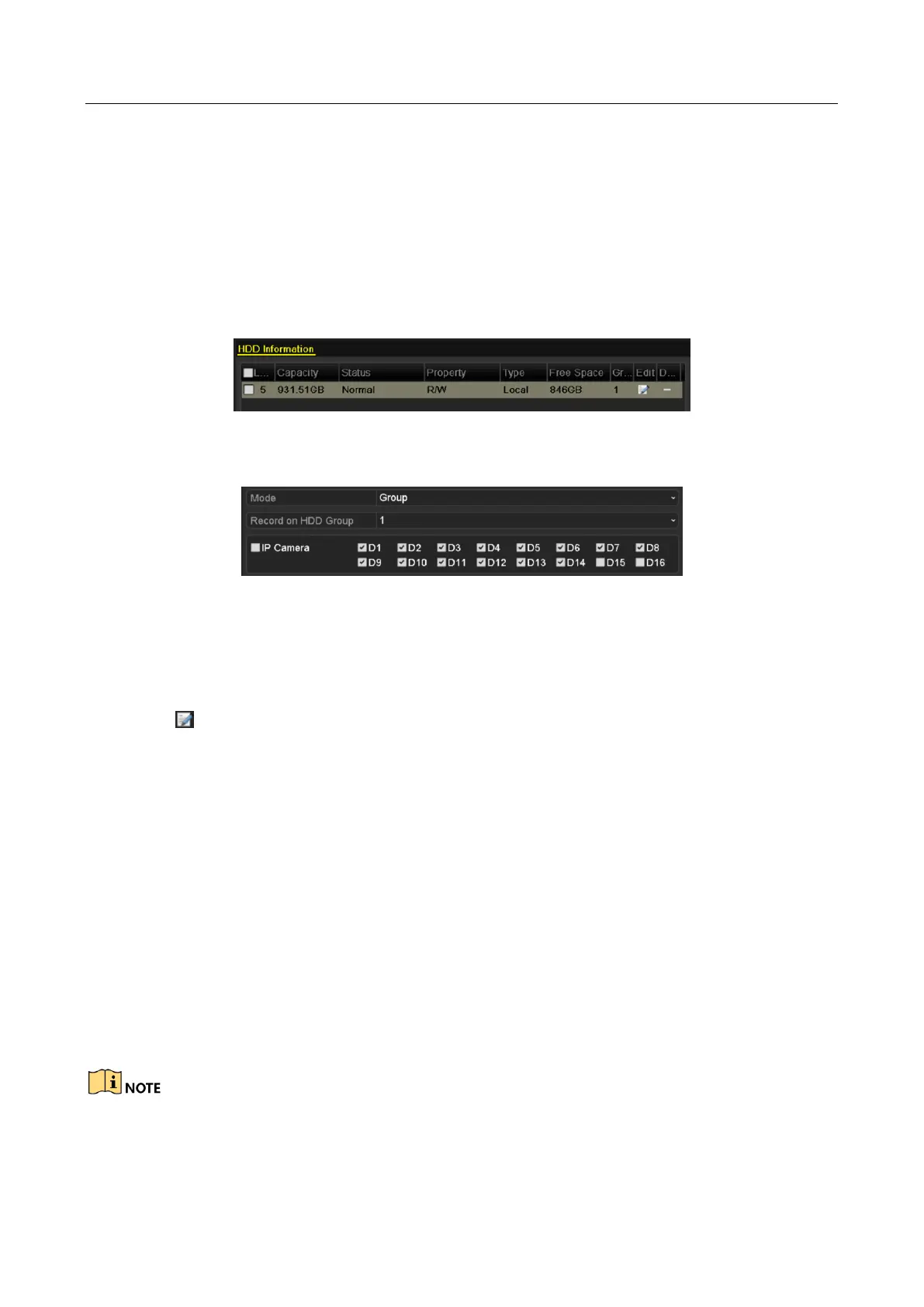

Step 1 Enter HDD setting interface.
Menu>HDD
Figure 5-27 HDD General
Step 2 Select Advanced on the left side menu.
Figure 5-28 Storage Mode
Check whether the storage mode of the HDD is Group. If not, set it to Group. For detailed
information, please refer to Chapter 14.4 Managing HDD Group.
Step 3 Select General in the left side menu
Step 4 Click to enter editing interface.
Step 5 Configuring HDD group.
1) Choose a group number for the HDD group.
2) Click Apply and then in the pop-up message box, click Yes to save your settings.
3) Click OK to back to the upper level menu.
4) Repeat the above steps to configure more HDD groups.
Step 6 Choose the Channels which you want to save the record files and captured pictures in the
HDD group.
1) Select Advanced on the left bar.
2) Choose Group number in the dropdown list of Record on HDD Group
3) Check the channels you want to save in this group.
4) Click Apply to save settings.
After having configured the HDD groups, you can configure the Recording and Capture settings
following the procedure provided in Chapter 5.2-5.7.

HIKVISION DS-7616NI-K2 Specifications

General

Input bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Output voltage	12 V
Power consumption (max)	40 W
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	2
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	1000 g
