3.3 Adjusting Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output
interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for
each channel, etc.
Step 1 Enter the Live View Settings interface.
Menu> Configuration> Live View

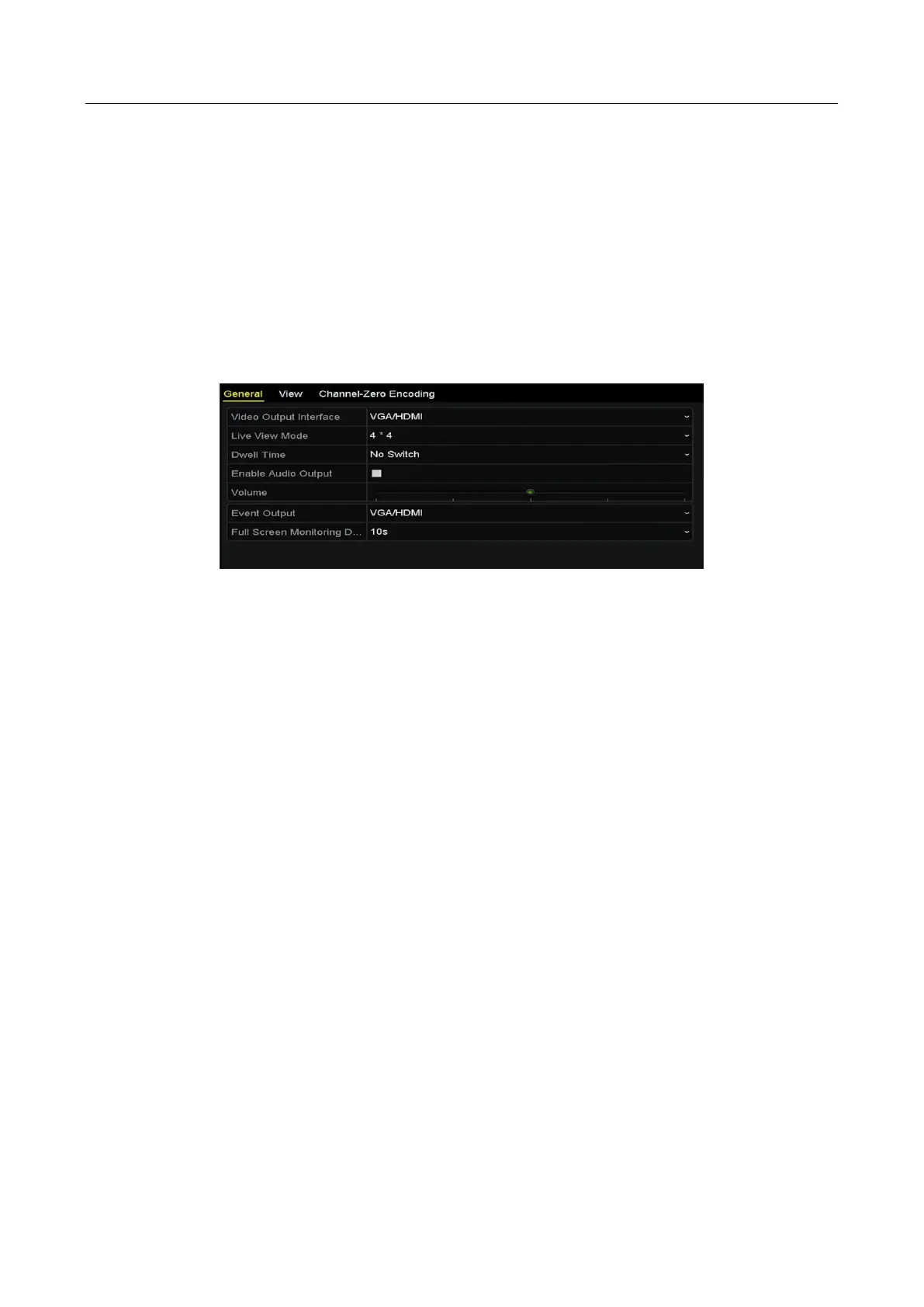

Figure 3-7 Live View-General
The settings available in this menu include:
 Video Output Interface: Designates the output to configure the settings for. The DS-9600NI
and DS-8600NI provide VGA/HDMI and VGA2/HDMI2, and DS-7600NI and DS-7700NI
provide the HDMI and VGA video outputs.
 Live View Mode: Designates the display mode to be used for Live View.
 Dwell Time: The time in seconds to dwell between switching of channels when enabling
auto-switch in Live View.
 Enable Audio Output: Enables/disables audio output for the selected video output.
 Volume: Adjust the volume of live view, playback and two-way audio for the selected output
interface.
 Event Output: Designates the output to show event video.
 Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
Step 2 Set cameras order.

HIKVISION DS-7616NI-K2 Specifications

General

Input bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Output voltage	12 V
Power consumption (max)	40 W
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	2
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	1000 g
