HIKVISION DS-7616NI-K2 User Manual

Network Video Recorder User Manual
255
16.6 Restoring Default Settings
Step 1 Enter the Default interface.
Menu > Maintenance > Default

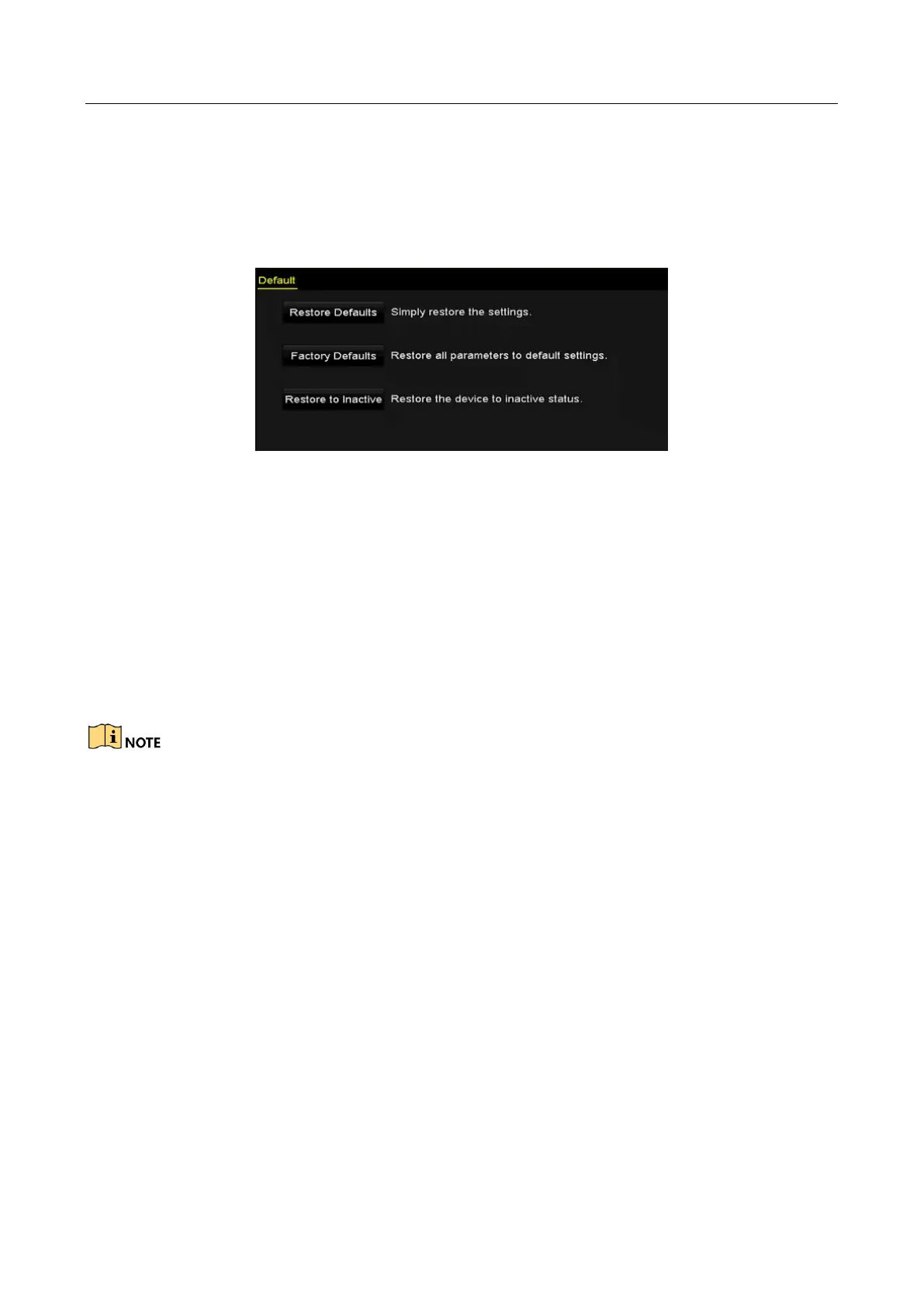

Figure 16-9 Restore Defaults
Step 2 Select the restoring type from the following three options.
Restore Defaults: Restore all parameters, except the network (including IP address, subnet
mask, gateway, MTU, NIC working mode, default route, server port, etc.) and user account
parameters, to the factory default settings.
Factory Defaults: Restore all parameters to the factory default settings.
Restore to Inactive: Restore the device to the inactive status.
Step 3 Click the OK button to restore the default settings.
The device will reboot automatically after restoring to the default settings.

HIKVISION DS-7616NI-K2 Specifications

General

Input bandwidth	160 Mbit/s
Maximum frame rate	30 fps
Maximum resolution	3840 x 2160 pixels
Alarm input channels	4
Video input channels	16 channels
Alarm output channels	1
Supported resolutions	3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
Video formats supported	H.264, H.264+, H.265, H.265+, MPEG4
HDMI output	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols	TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Output voltage	12 V
Power consumption (max)	40 W
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
HDD capacity	0 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Number of HDDs installed	0
Number of HDDs supported	2
Product color	Black
Rack capacity	1U
Wi-Fi	No

Weight and Dimensions

Depth	315 mm
Width	385 mm
Height	52 mm
Weight	1000 g
