HIKVISION DS-7716NI-E4/16P Quick Operation Guide

Quick Operation Guide of Network Video Recorder
17

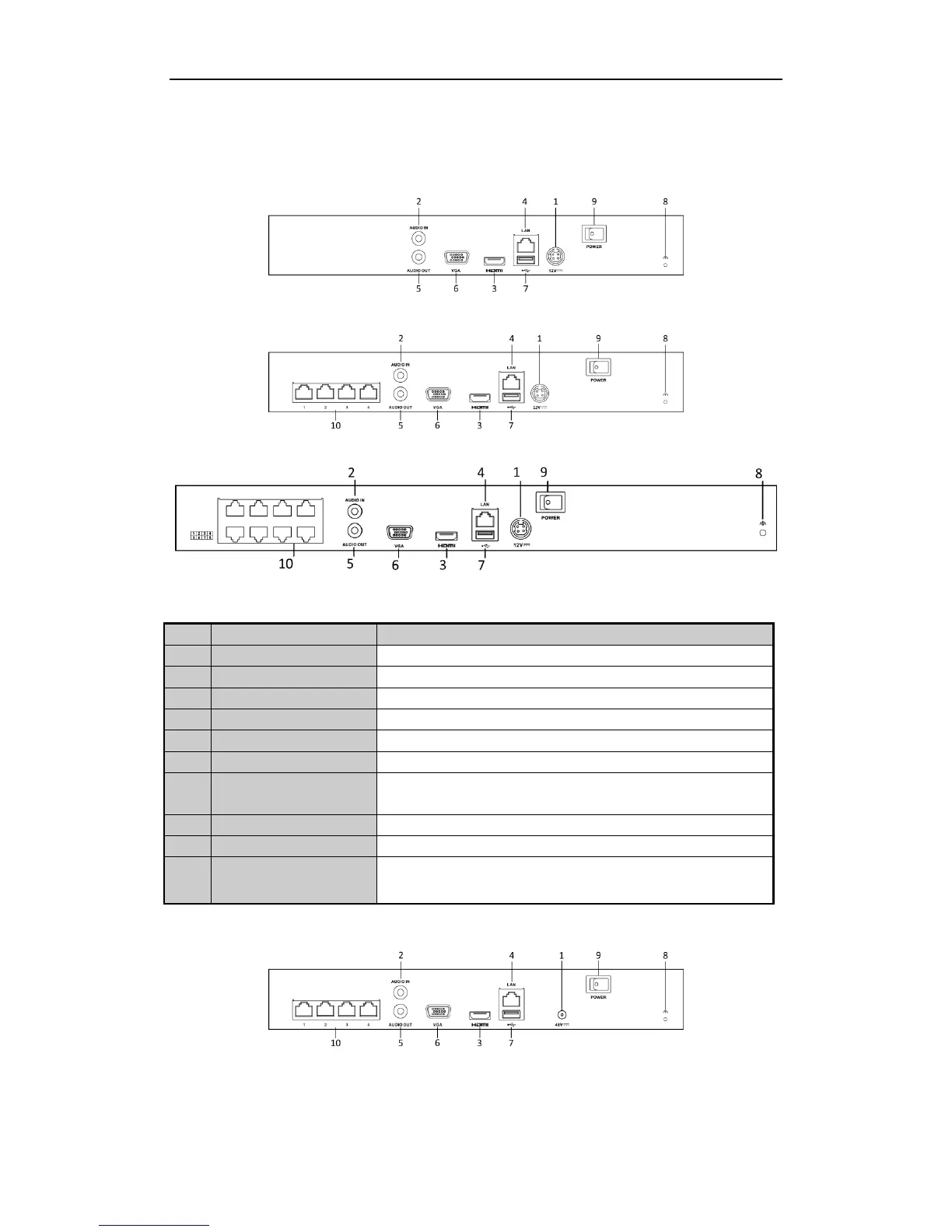

DS-7600NI-E1, DS-7600NI-SN, DS-7600NI-E1/4N, DS-7604NI-SN/N, DS-7608 &
7616NI-SN/N, DS-7600NI-E2 and DS-7600NI-E2/8N
DS-7600NI-E1/E2 and DS-7600NI-SN
DS-7600NI-E1/4N and DS-7604NI-SN/N
DS-7608 & 7616NI-SN/N and DS-7600NI-E2/8N
No.
Item
Description
1
Power Supply
DC 12V power supply.
2
Audio In
RCA connector for audio input.
3
HDMI Interface
HDMI video output connector.
4
LAN Network Interface
1 10 /100 /1000 Mbps self-adaptive Ethernet interface
5
Audio Out
RCA connector for audio output.
6
VGA Interface
DB9 connector for VGA output. Display local video output and menu.
7
USB Interface
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
8
Ground
Ground (needs to be connected when NVR starts up).
9
Power Switch
Switch for turning on/off the device.
10
Network Interfaces with
built-in switch function
Built-in switch network interfaces for the cameras. (Supported by
DS-7600NI-E1/4N, DS-7600NI-E2/8N and DS-7600NI-SN/N).
DS-7600NI-E1/4P, DS-7600NI-E2/8P and DS-7600NI-SN/P
DS-7600NI-E1/4P and DS-7604NI-SN/P

HIKVISION DS-7716NI-E4/16P Specifications

General

Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	16
Video input channels	16 channels
Alarm output channels	4
Supported resolutions	1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supported	H.264+
Audio RCA inputs	1
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Card reader integrated	No
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Product color	Black
Rack capacity	1.5U
HDD capacity	4 GB
HDD interface	Serial ATA
Maximum storage capacity	6 TB
Total installed storage capacity	16000 GB
AC input voltage	100 - 240 V
Power consumption (typical)	20 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	390 mm
Width	445 mm
Height	70 mm
Weight	4000 g
