Quick Operation Guide of Network Video Recorder
48
Steps:

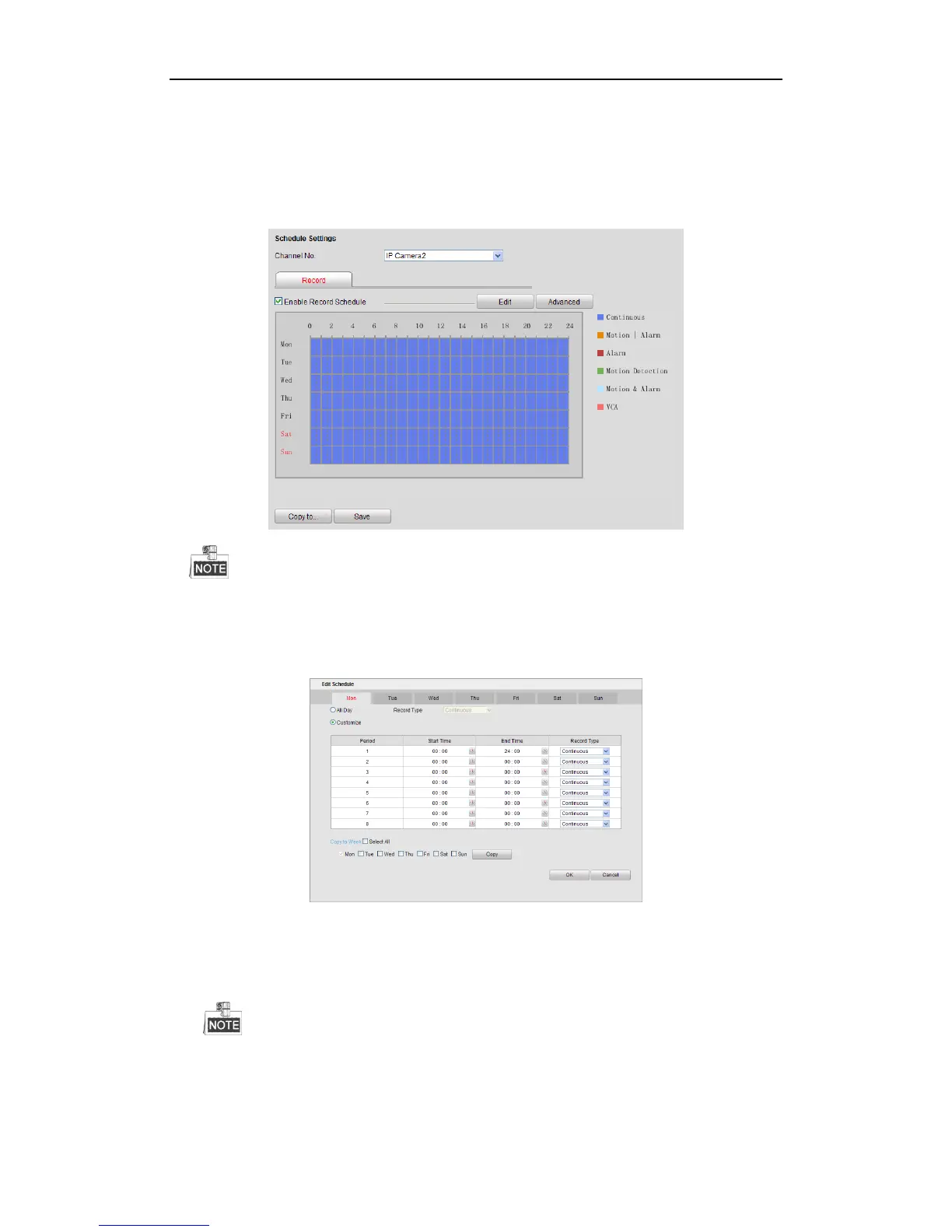

1. Click Remote Configuration> Camera Settings> Record Schedule to enter Record Schedule settings
interface.
2. Select the camera to configure the record schedule.
3. Check the checkbox of Enable Schedule to enable recording schedule.
The Alarm, Motion & Alarm, Motion | Alarm recording types are not supported by the DS-7100NI-SL(/W)
series NVR.
4. Choose the day in a week to configure scheduled recording.
5. Click Edit to edit record schedule.
1) Configure All Day or Customize Record:
If you want to configure the all-day recording, please check the All Day checkbox.
If you want to record in different time sections, check the Customize checkbox. Set the Start
Time and End Time.
Up to 8 segments can be configured and each segment cannot be overlapped.
2) Select a Record Type. The record type can be Continuous, Motion, Alarm, Motion & Alarm, Motion |
Alarm and VCA.

Table of Contents

Other manuals for HIKVISION DS-7716NI-E4/16P

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7716NI-E4/16P and is the answer not in the manual?

HIKVISION DS-7716NI-E4/16P Specifications

General IconGeneral
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Alarm input channels16
Video input channels16 channels
Alarm output channels4
Supported resolutions1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz
Video formats supportedH.264+
Audio RCA inputs1
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Card reader integratedNo
USB 2.0 ports quantity2
Ethernet LAN data rates10, 100, 1000 Mbit/s
Power over Ethernet (PoE)Yes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Product colorBlack
Rack capacity1.5U
HDD capacity4 GB
HDD interfaceSerial ATA
Maximum storage capacity6 TB
Total installed storage capacity16000 GB
AC input voltage100 - 240 V
Power consumption (typical)20 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth390 mm
Width445 mm
Height70 mm
Weight4000 g
