Network Video Recorder User Manual
113

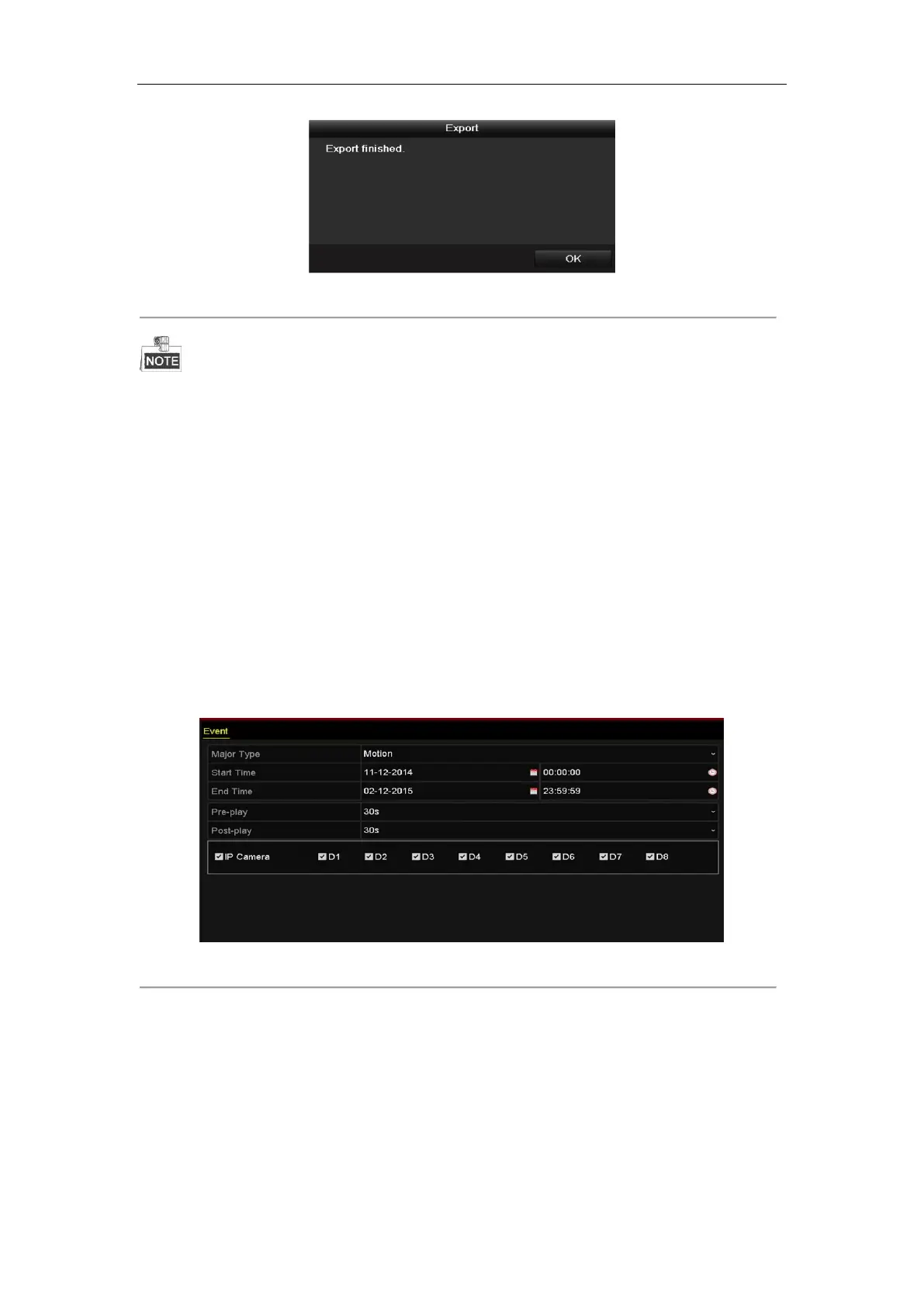

Figure 7. 8 Export Finished
The backup of video files using USB writer or SATA writer has the same operating instructions. Please refer to
steps described above.
7.1.3 Backing up by Event Search
Purpose:
Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), SATA writer
or eSATA HDD. Quick Backup and Normal Backup are supported.
Steps:
1. Enter Export interface.
Menu > Export > Event
2. Select the cameras to search.
3. Select the event type to alarm input, motion or VCA.
Figure 7. 9 Event Search for Backup
4. Set search condition and click Search button to enter the search result interface. The matched video files are
displayed in Chart or List display mode.
5. Select video files from the Chart or List interface to export.

Table of Contents

Other manuals for HIKVISION DS-7732NI-E4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7732NI-E4 and is the answer not in the manual?

HIKVISION DS-7732NI-E4 Specifications

General IconGeneral
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Alarm input channels16
Video input channels32 channels
Alarm output channels4
HDMI outputYes
Audio RCA inputs1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
HDD interfaceSerial ATA
Maximum storage capacity24 TB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)20 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth390 mm
Width445 mm
Height70 mm
Weight4000 g
