Network Video Recorder User Manual
155
You can select one NIC card as default route. And then the system is connecting with the extranet the data will be
forwarded through the default route.
Net-fault Tolerance Mode: The two NIC cards use the same IP address, and you can select the Main NIC to
LAN1 or LAN2. By this way, in case of one NIC card failure, the device will automatically enable the other
standby NIC card so as to ensure the normal running of the whole system.

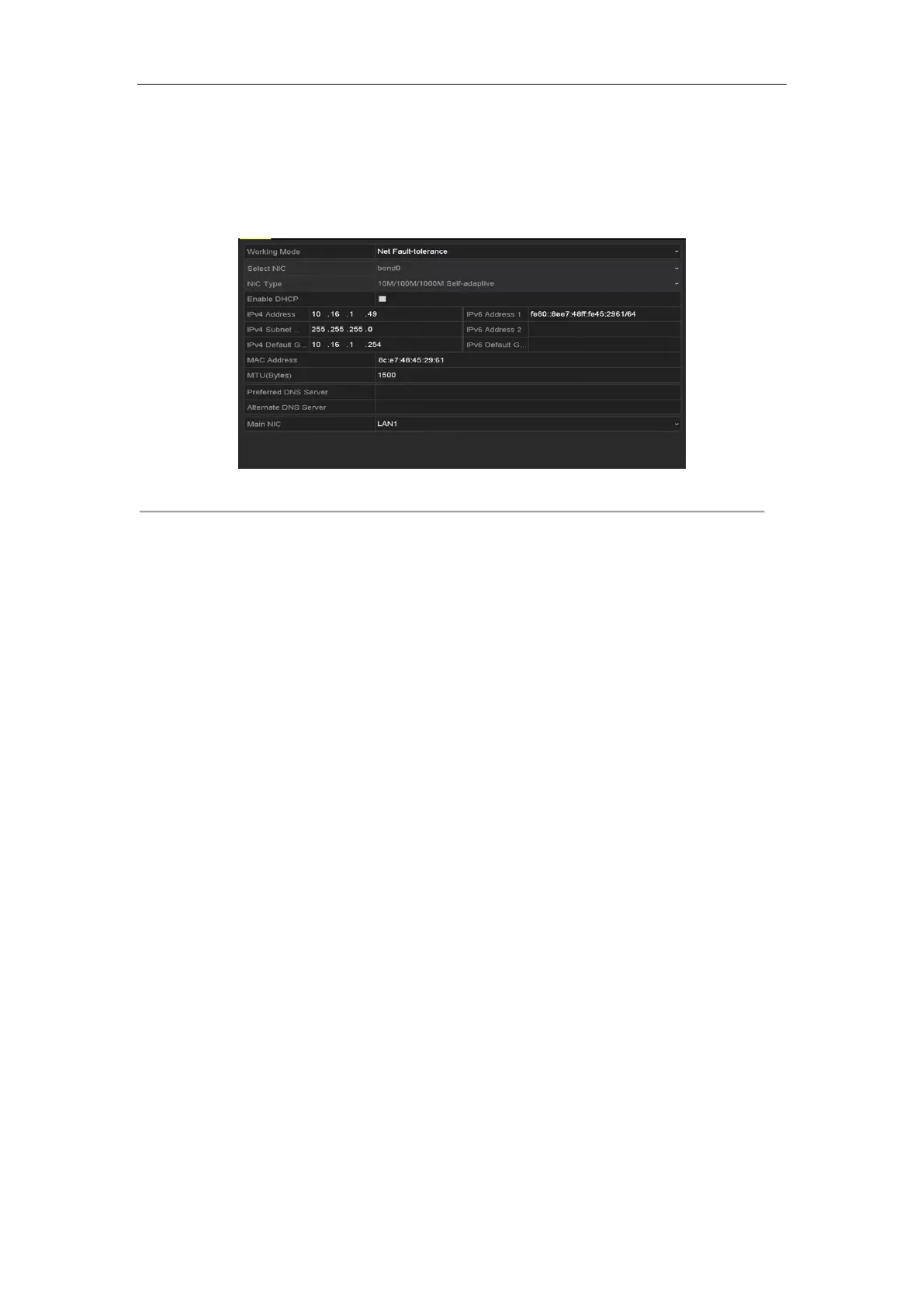

Figure 11. 2 Net Fault-tolerance Working Mode

Table of Contents

Other manuals for HIKVISION DS-7732NI-E4

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HIKVISION DS-7732NI-E4 and is the answer not in the manual?

HIKVISION DS-7732NI-E4 Specifications

General IconGeneral
Maximum frame rate60 fps
Maximum resolution1920 x 1080 pixels
Alarm input channels16
Video input channels32 channels
Alarm output channels4
HDMI outputYes
Audio RCA inputs1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports2
HDD interfaceSerial ATA
Maximum storage capacity24 TB
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (typical)20 W
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth390 mm
Width445 mm
Height70 mm
Weight4000 g
