HIKVISION DS-7732NI-K4/16P Quick Start Guide

Network Video Recorder Quick Start Guide
16
1.2.3 DS-7600NI Series
DS-7600NI-I2(/P) and DS-7600NI-K2 (/P)
Figure 1-9 DS-7600NI-I2 and DS-7600NI-K2 Series
Figure 1-10 DS-7600NI-I2/8P and DS-7600NI-K2/8P Series
The DS-7616NI-I2/16P and DS-7632NI-I2/16P provide 16 network Interfaces with PoE function.

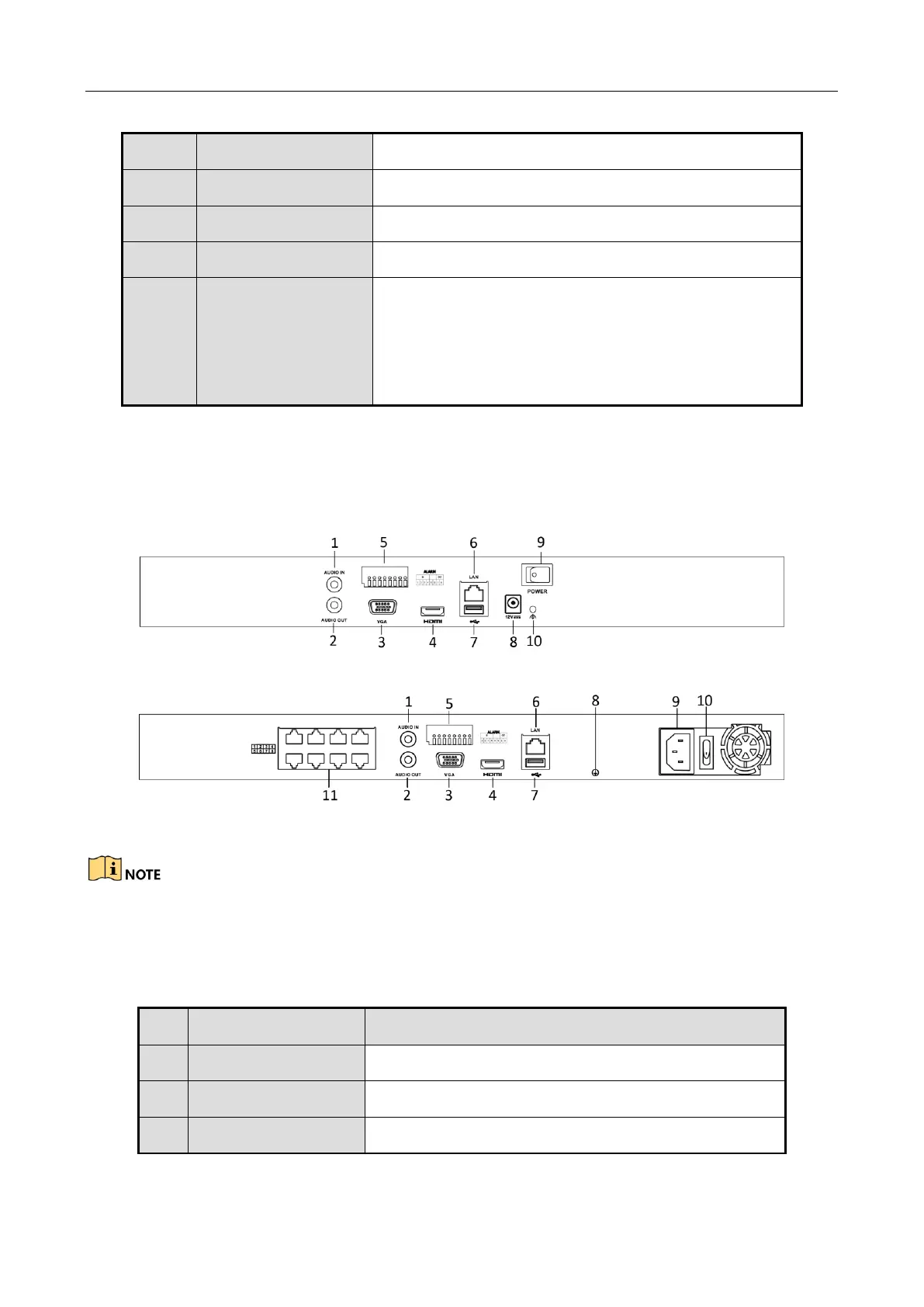

Panel Description
Figure 1-11 Panel Description
ALARM OUT
Connector for alarm output.
10
GROUND
Ground (needs to be connected when NVR starts up).
11
AC 100V ~ 240V
100V to 240VAC power supply.
12
Power Switch
Switch for turning on/off the device.
13
Network Interfaces
with PoE function
(supported by
DS-7700NI-I4/P and
DS-7700NI-K4/P)
Network interfaces for the cameras and to provide
power over Ethernet.
No.
Name
Description
1
Audio In
RCA connector for audio input.
2
Audio Out
RCA connector for audio output.
3
VGA Interface
DB9 connector for VGA output. Display local video

HIKVISION DS-7732NI-K4/16P Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.265, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
