HIKVISION DS-7732NI-K4/16P Quick Start Guide

Network Video Recorder Quick Start Guide
29
3.5 Enter Wizard to Configure Quick Basic Settings
The Setup Wizard can walk you through some important settings of the device. By default, the
Setup Wizard starts once the device has loaded.
Check the checkbox to enable Setup Wizard when device starts. Click Next to continue the setup
wizard. Follow the guide of the Setup Wizard to configure the system resolution, system date/time,
network settings, HDD management, record settings, etc.

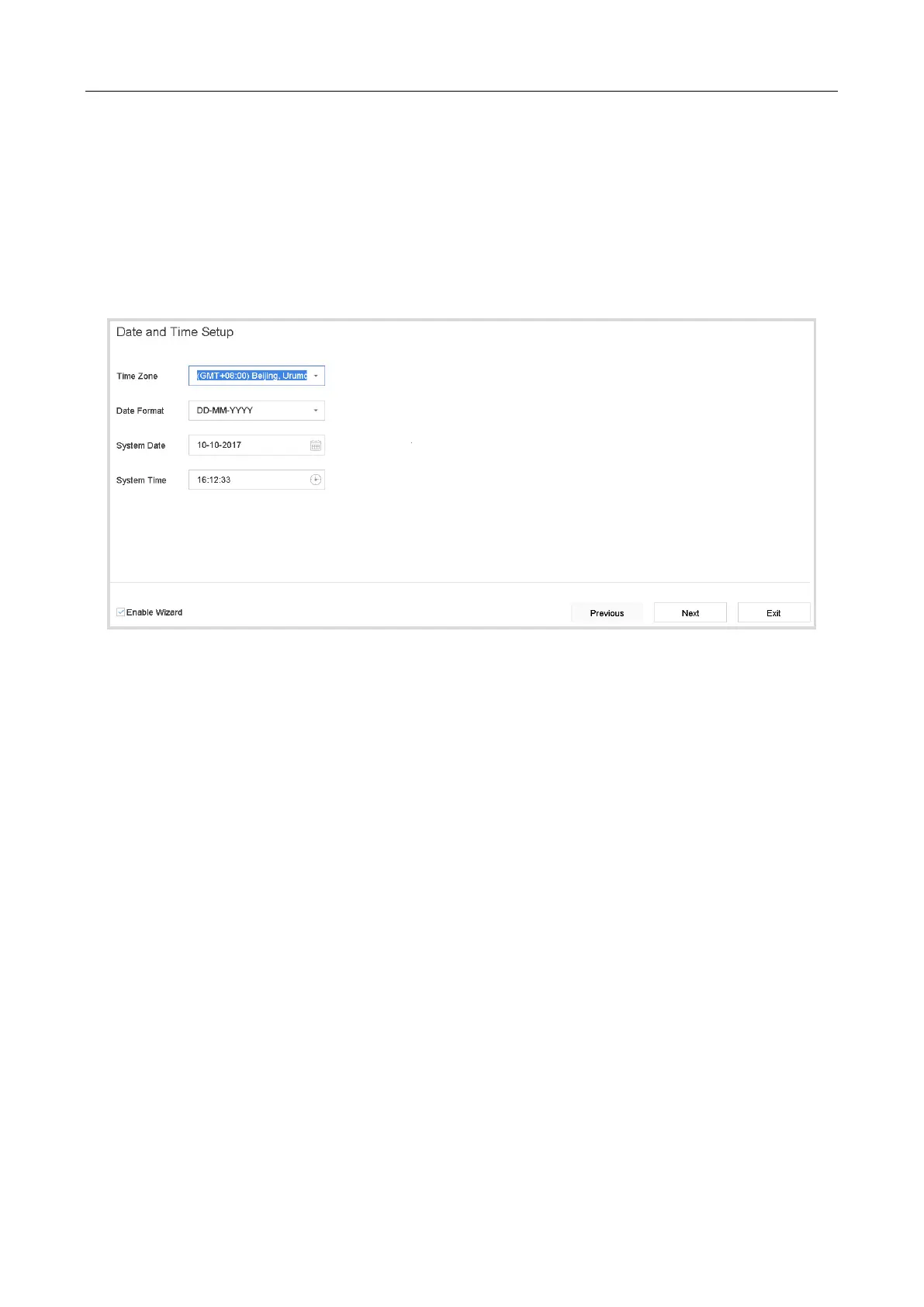

Figure 3-4 Wizard
3.6 Network Settings
Purpose:
Network settings must be properly configured before you operate device over network.
Step 1 Go to System > Network > TCP/IP.

HIKVISION DS-7732NI-K4/16P Specifications

General

Input bandwidth	256 Mbit/s
Output bandwidth	160 Mbit/s
Maximum resolution	4096 x 2160 pixels
Alarm input channels	16
Video input channels	32 channels
Alarm output channels	4
Supported resolutions	4096 x 2160, 3840 x 2160, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720
Audio formats supported	G.711 A-law, G.711 μ-law, G.726
Video formats supported	H.264, H.265, MPEG4
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Power over Ethernet (PoE)	Yes
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
HDD capacity	- GB
HDD interface	SATA
Maximum storage capacity	8 TB
Number of HDDs installed	0
Certification	FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
Product color	Black
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	20 W
Total Power over Ethernet (PoE) budget	200 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Wi-Fi	No

Weight and Dimensions

Depth	400 mm
Width	445 mm
Height	75 mm
Weight	5000 g
