HIKVISION DS-K1101M User Manual

10

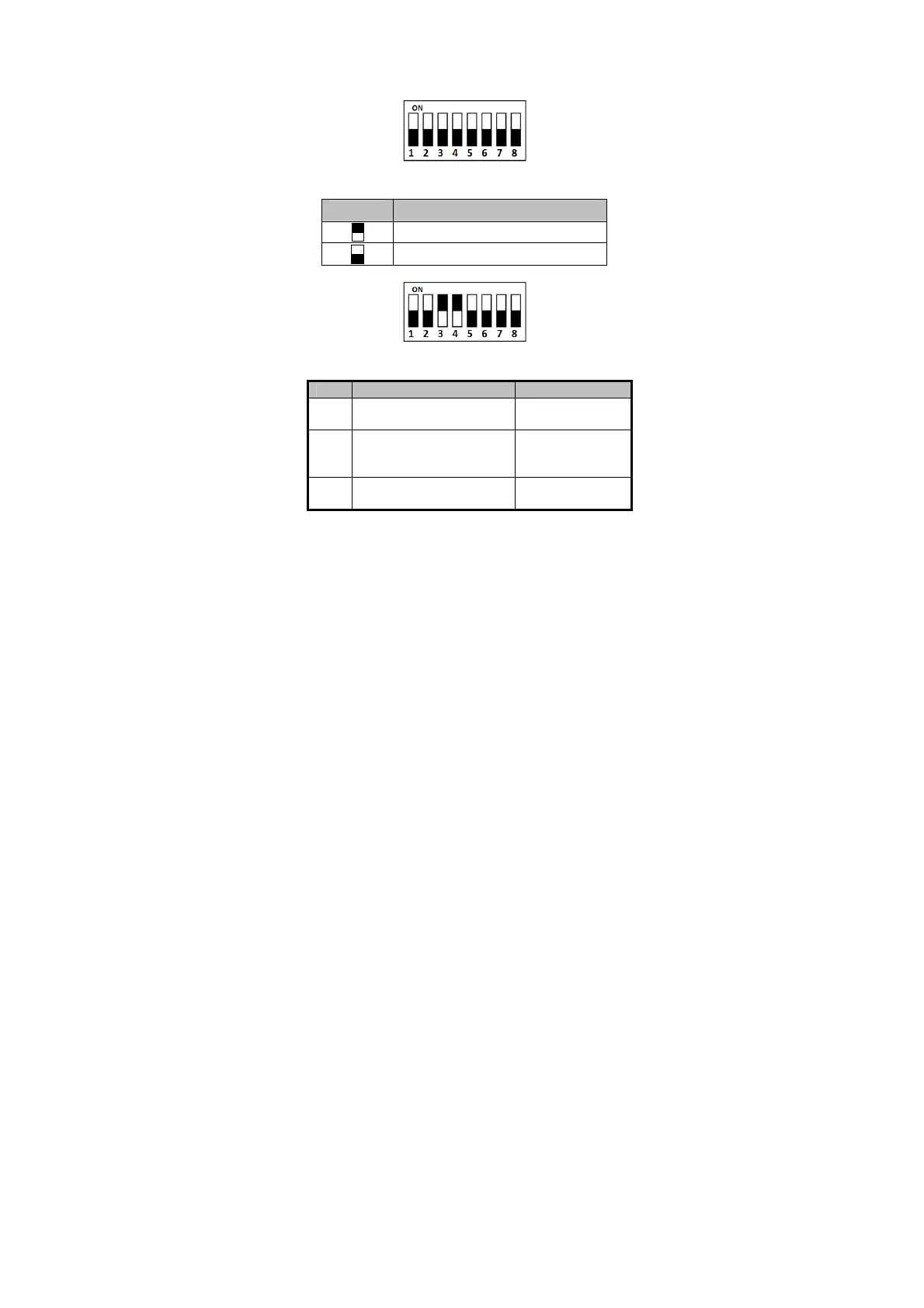

3.2 Introduction for DIP Switch
The DIP switch module is shown below. The No. of DIP switch
from left to right is 1 ~ 8.
Figure 3-2 DIP Switch Module
Table 3-1 Description of DIP Switch
Icon Description
Represent 1 in binary mode
Represent 0 in binary mode
For example, binary value of the following status is: 0000 1100.
Figure 3-3 DIP Switch Module
Table 3-2 Description of DIP Switch
No.
Description
DIP
Switch Status
1 ~ 4 Address of RS-485
1: 1
0: 0
5
Read card No. or file in card.
(Only available for CPU card
read
er.
)
1: read card No;
0: read file in card.
6
Wiegand protocol or RS-485
protocol.
1: Wiegand protocol;
0
: RS
-
485
p
rotocol.

HIKVISION DS-K1101M Specifications

General

Type	Basic access control reader
Certification	FCC, CE
Product color	Black, Silver
LED indicators	Status
Access code reader	-
Fingerprint reader	No
Authentication type	Access chip/card
Supported protocols	Mifare
RFID reading distance	50 mm
Access chip/card reader	Yes
International Protection (IP) code	IP64
Processor frequency	13.56 MHz
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
RS-485 ports	1

Weight and Dimensions

Depth	20.5 mm
Width	92.3 mm
Height	132 mm
Weight	140 g
