Fingerprint Access Control Terminal·User Manual
18
Setting Wiegand Parameters
Purpose:
You are able to set the Wiegand Direction (Send/Receive) and the Wiegand mode (Wiegand
26/Wiegand 34).
Steps:

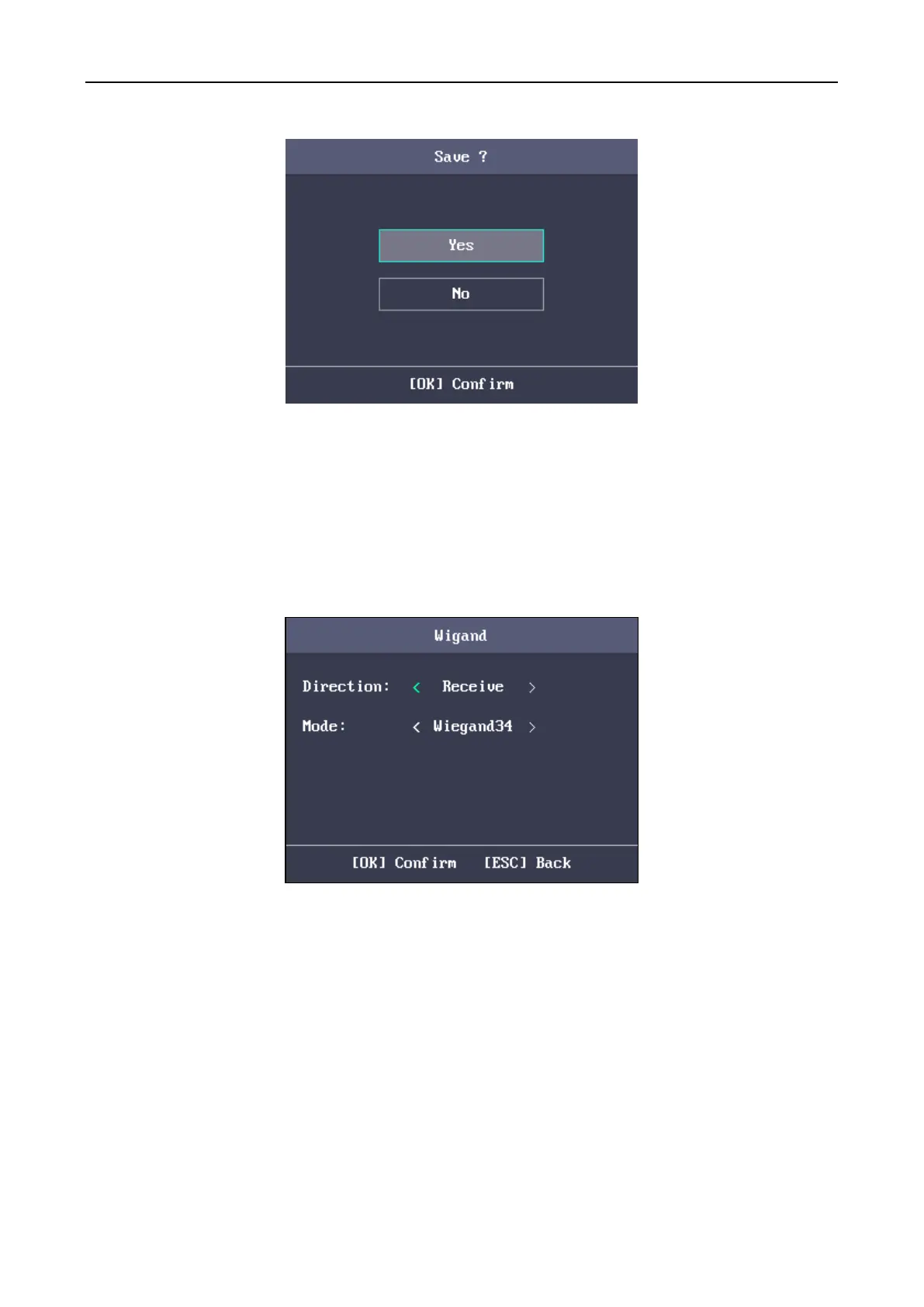

1. Move the cursor to Wiegand, and press the OK key to enter the Wieagand interface.
2. Edit the Wiegand parameters, including the Wiegand direction and the Wiegand mode.
Wiegand Direction:
If select “Send”, the terminal can connect to the access controller to upload the card No.
bia the Wiegand 26 or the Wiegand 34 mode.
If select “Receive”, the terminal can connect to the Wiegand card readers. No need to
configure the Wiegand mode. The default mode contains Wiegand 26/34 and the
Hikvision private Wiegand protocol.
Wiegand Mode:
Wiegand 26 and Wiegand 34 can be selected. The default Wiegand mode is Wiegand 34.
