HIKVISION DS-K1T804BEF User Manual

Chapter 3 Appearance Descripon
View the device appearance and the keypad's descripon.

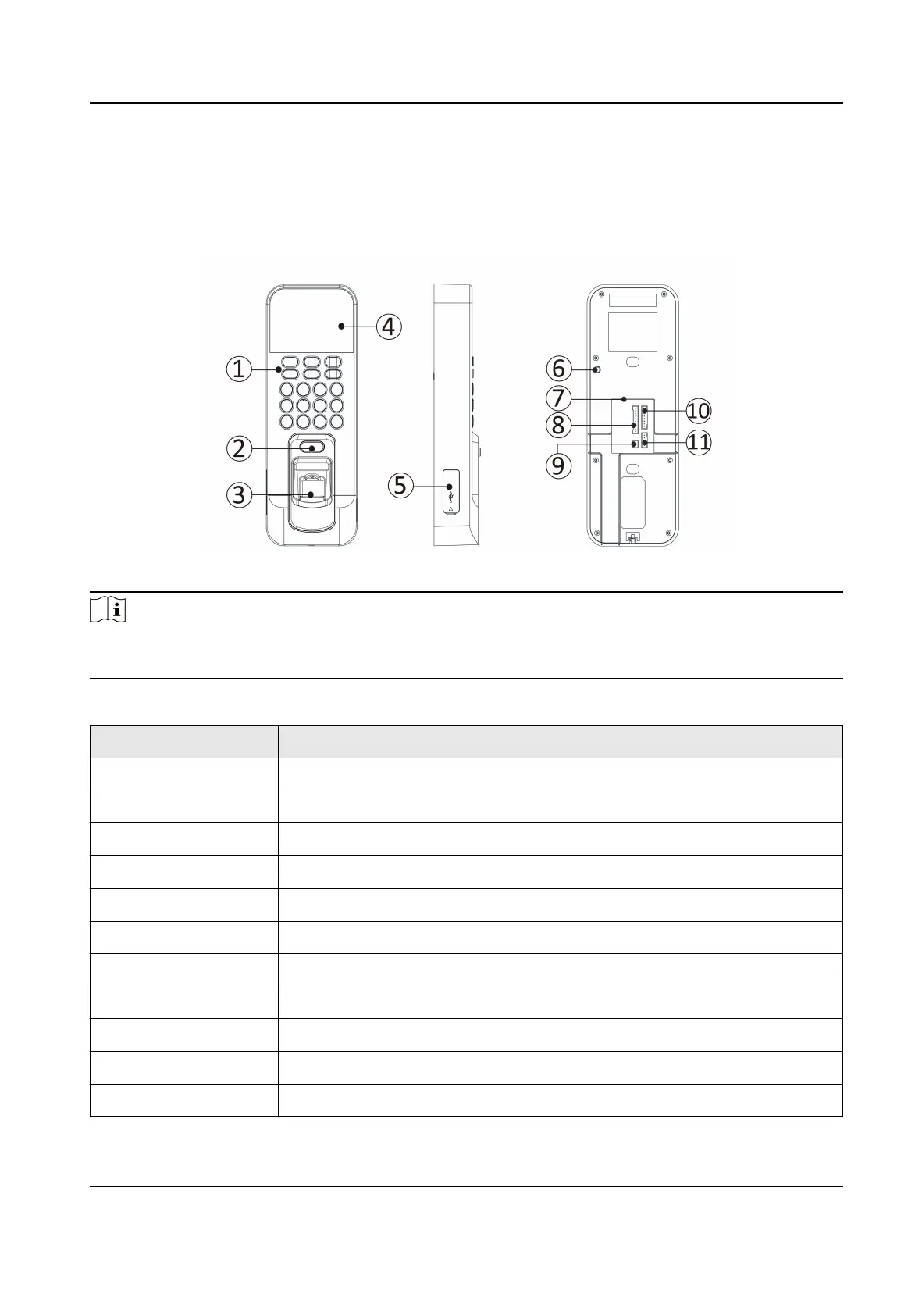

Figure 3-1 Device Appearance
Note
The pictures here are for reference only. Some models do not support card swiping funcon. For
details, refer to the actual product.
Table 3-1 Appearance Descripon
No. Descripon
1 Keypad
2 Door Bell Buon
3 Fingerprint Reading Module
4 2.4-inch LCD Display Screen Indicator
5 USB Interface/Reset Buon (Inside the Cover)
6 Tamper-proof Buon
7 Ethernet Port
8 RS-485/Wiegand Wiring Terminal
9 12V Power Interface
10 Door Lock Wiring Terminal
11 Alarm Wiring Terminal
DS-K1T804B Series Fingerprint Access Control Terminal User Manual
3

HIKVISION DS-K1T804BEF Specifications

General

Model	DS-K1T804BEF
Type	IP Access Controller
Camera	2 MP
Communication	TCP/IP, RS-485
Power Supply	12 VDC/2 A
Dimensions	135mm × 105mm × 25mm (5.31" × 4.13" × 0.98")
Operation System	Linux
Fingerprint recognition duration	< 1s
FAR (False Acceptance Rate)	≤ 0.001%
Fingerprint comparing mode	1:1, 1:N
Fingerprint capacity	3000
Reading frequency	13.56 MHz
Card type	Mifare card
Working humidity	10% to 90% (non-condensing)
Installation	Wall-mounted
Language	Multi-language support
Reader Interface	Wiegand
Operating Humidity	10% to 90% (non-condensing)
Card Reader	Built-in card reader
Operating Temperature	-10 °C to +55 °C (14 °F to +131 °F)
Event capacity	100000
Working temperature	-10°C to 55°C (14°F to 131°F)
Communication Interface	RS-485
Wiegand Signal	Wiegand 26/34
