Video Intercom Door Station·User Manual
36
7.4.4 Issuing Card
Purpose:
You cannot open door by swiping the card until you have issue the card.
You can issue the card both locally or remotely. For the detail information about issuing
card remotely, please refer to 9.6.3 Card Management.
2 methods of issuing card locally are available: issuing card via the main card, and
issuing card via the card activation password.
Issuing Card via Main Card: You can swipe card to issue it after swiping the main card in
advance.
Issuing Card via Password: You can swipe card to issue it after inputting the card
activation password in advance.
Press the numeric key 4 and 6 to enter the card issuing interface.

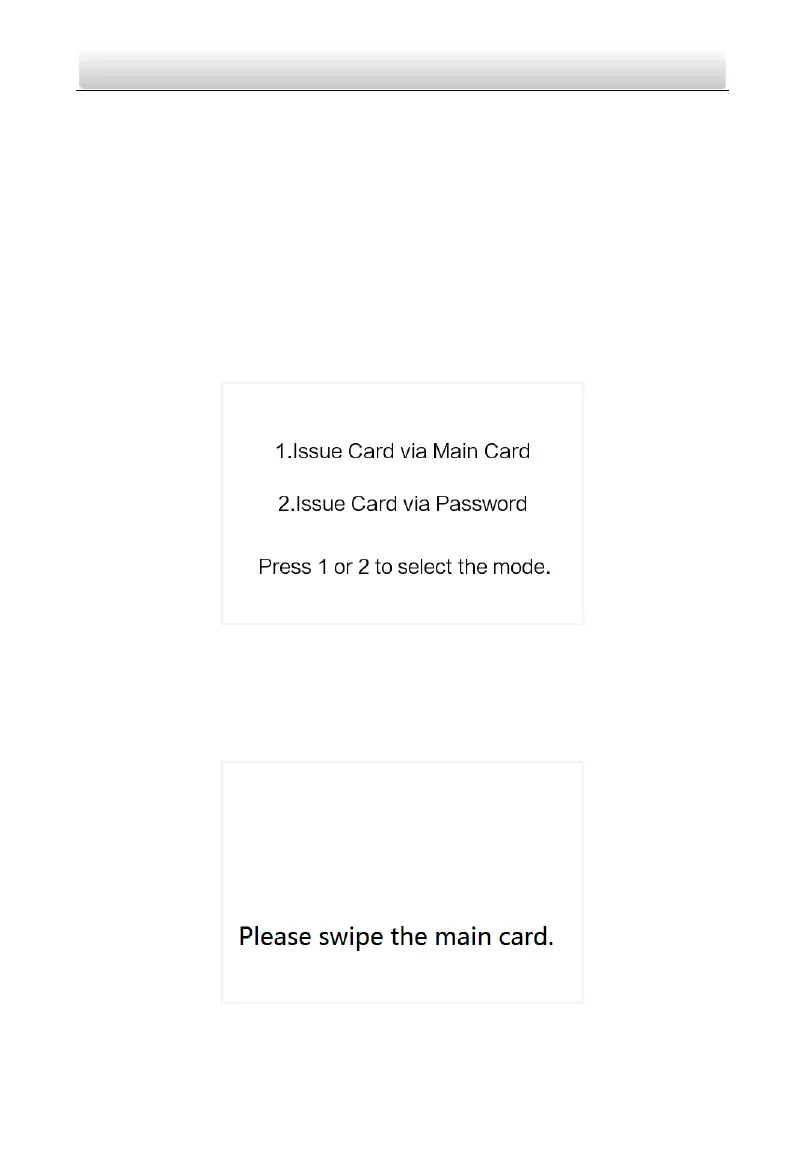

Figure 7-12 Card Issuing Interface
Issuing Card via Main Card
Steps:
1. On the card issuing interface, press the numeric key 1 to enter the main card swiping
interface.
Figure 7-13 Main Card Swiping Interface

HIKVISION DS-KD3002-VM Specifications

General

Operating system installed	Linux
Display diagonal	3.5 \
Display resolution	480 x 320 pixels
Display technology	LCD/TFT
Video formats supported	H.264
Megapixel	1.3 MP
Sensor type	CMOS
Maximum frame rate	30 fps
Supported video modes	720p
Maximum video resolution	1280 x 720 pixels
Proper use	Outdoor
Product color	Black, White
Placement supported	Vertical
Outdoor unit housing material	Aluminum
International Protection (IP) code	IP65
Indoor unit included	No
Outdoor unit included	Yes
Speakerphone	-
Certification	FCC, IC, CE, C-TICK, REACH, WEEE
Connectivity technology	Wired
Sustainability certificates	RoHS
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	100, 1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	1
Supported network protocols	TCP/IP, RTSP
Outdoor unit power type	DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90 %
Voice codecs	G.711u

Weight and Dimensions

Depth	55 mm
Width	124 mm
Height	357 mm
