Name Interface Descripon
RES Reserved
POWER 12 VDC DC 12 V Power Supply Input
2.2 Wiring Descripon
2.2.1 D-Series Door Lock Wiring

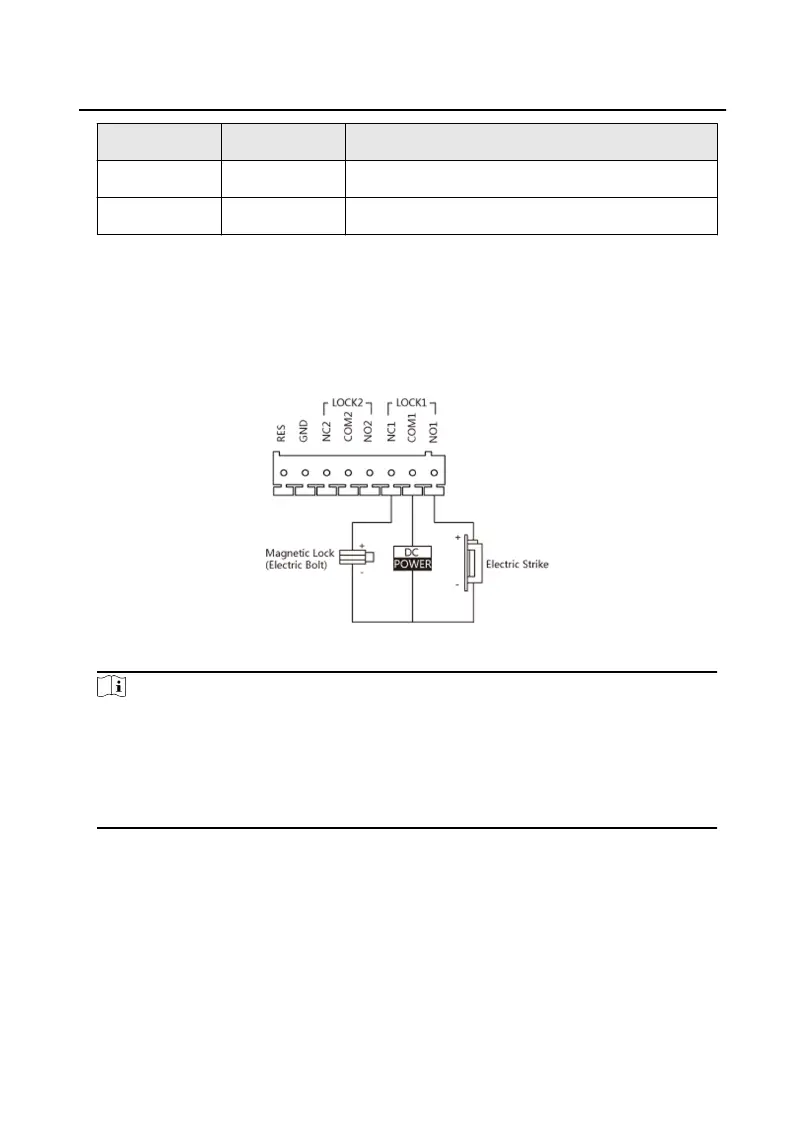

Figure 2-2 Door Lock Wiring
Note
•
Terminal NC1/COM1 is set as default for accessing electric bolt. Terminal NO1/
COM1 is set as default for accessing electric strike.
•
To connect electric lock in terminal NO2/COM2/NC2, it is required to set the
output of terminal NO2/COM2/NC2 to be electric lock with iVMS-4200client
soware.
2.2.2 D-Series Door Contact Wiring (8081 Series)
Video Intercom D Series Door Staon User Manual
7
