HIKVISION DS-KH8350-WTE1 User Manual

Video Intercom Demo Case·User Manual
5

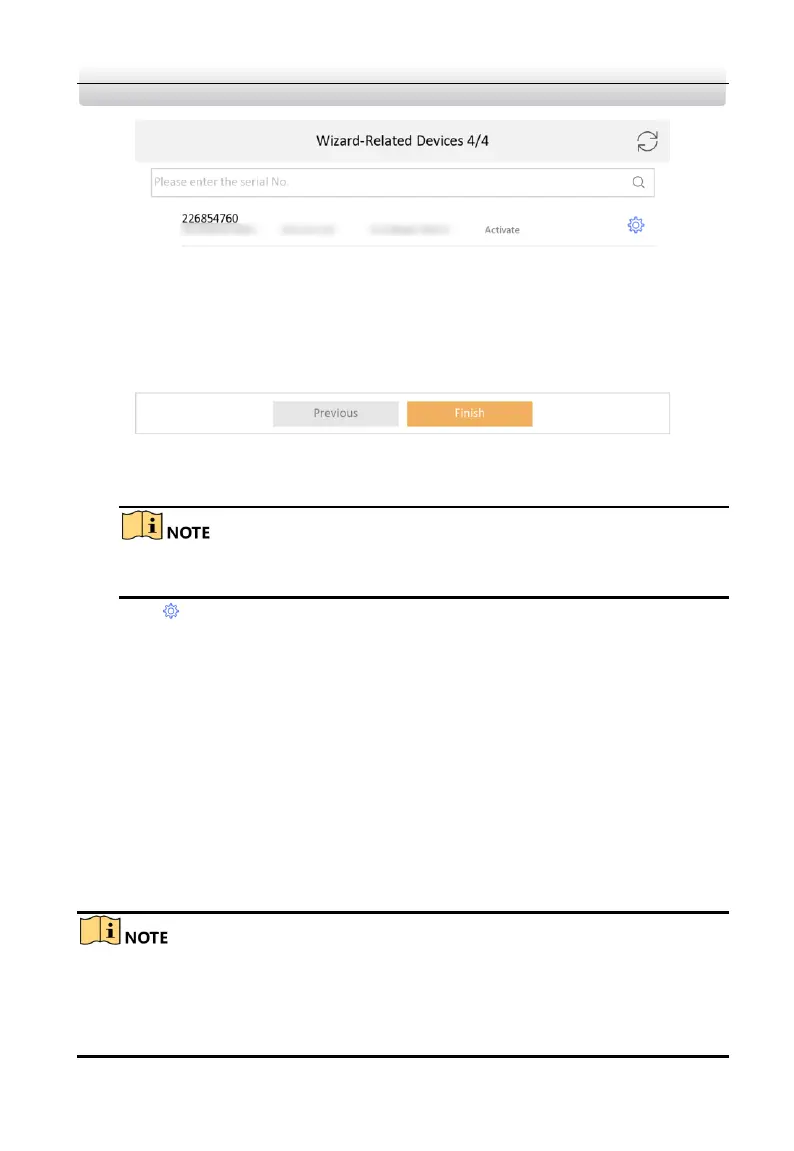

Figure 2-4 Wizard-Related Devices Settings
1). Tap the door station in the list to link.
If the door station is inactive, the system will pop up the dialog to activate the
door station.
2). Tap to pop up the Network Settings page.
3). Edit the network parameters of the door station manually or enable DHCP to get
the network parameters automatically.
4). Tap OK to save the settings.
5. Tap Finish to save the settings.
2.3 Configure Sub Module Address
You need to set the sub module address via DIP before installation.
Steps:
1. Remove the rubber cover on the sub module rear panel to expose the DIP switch.
2. Set the sub module address according to the DIP rules, and install the rubber cover
back.
Digit 1, 2, 3, 4 are used to coding the sub module address; Digit 5, 6, 7 are reserved;
Digit 8 is a resistance (120Ω) is you set it as on.
Valid sub module address range is 1 to 8. The No. should be unique for sub modules
that connected to the same main unit.

HIKVISION DS-KH8350-WTE1 Specifications

General

Product color	Black
Package weight	899 g
Indoor unit included	Yes
Outdoor unit included	No
Display diagonal	7 \
Display resolution	1024 x 600 pixels
Operating system installed	Linux
Voice codecs	G.711u
Number of speakers	1
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL, CB, RCM
Connectivity technology	Wired & Wireless
Maximum number of cameras supported	-
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, SIP, RTSP
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Power consumption	200 mA
Indoor unit power type	DC
Power consumption (typical)	7 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	355 g
Door station dimensions (WxDxH)	180 x 140 x 22.4 mm
