HIKVISION DS-KH8350-WTE1 User Manual

Video Intercom Demo Case·User Manual
1
1 Demo Case Overview
1.1 Devices Overview
The demo case displays 3 groups of indoor station and door station.
See Figure 1-1 for the default calling relationship among these video intercom devices.

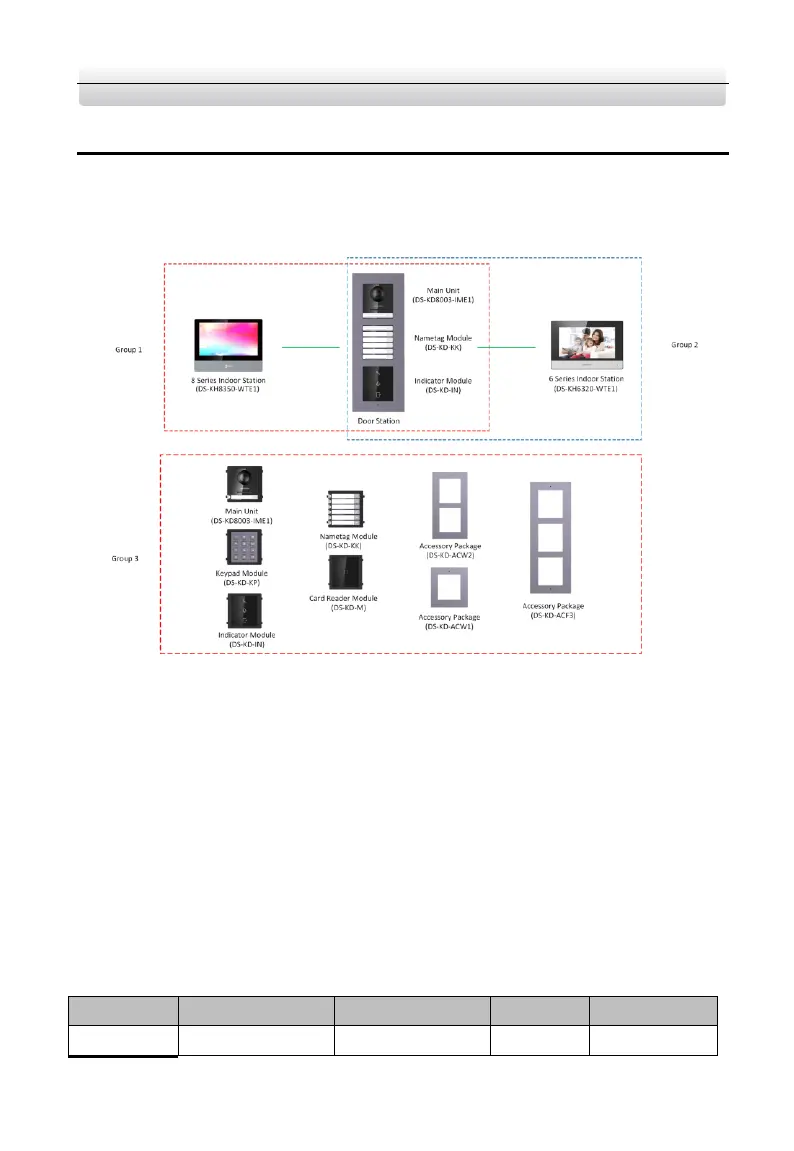

Figure 1-1 Intercom Application Diagram
1.2 Default Parameters
In the demo case, video intercom devices are divided into 3 groups by default.
 The default configuration password for network indoor stations is 888999.
 The default activation password of network video intercom devices in the demo
case is hik12345.
 For DS-KH8350-WTE1 indoor station, the default Microphone volume, Prompt
Sound Volume and Call Volume are 70%.
 For DS-KH6320-WTE1 indoor station, the default Microphone volume, Prompt
Sound Volume and Call Volume are 70%.
Refer to Table 1-1 to see the default parameters for each device.
Table 1-1 Device Information
Group No.
Device Type
Device Model
IP
Room No.
1
Indoor Station
DS-KH8350-WTE1
192.0.0.65
1

HIKVISION DS-KH8350-WTE1 Specifications

General

Product color	Black
Package weight	899 g
Indoor unit included	Yes
Outdoor unit included	No
Display diagonal	7 \
Display resolution	1024 x 600 pixels
Operating system installed	Linux
Voice codecs	G.711u
Number of speakers	1
Certification	FCC, IC, CE, C-TICK, ROHS, REACH, WEEE, UL, CB, RCM
Connectivity technology	Wired & Wireless
Maximum number of cameras supported	-
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, SIP, RTSP
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Power consumption	200 mA
Indoor unit power type	DC
Power consumption (typical)	7 W
Operating relative humidity (H-H)	10 - 90 %
Main monitor station operating temperature (T-T)	-10 - 55 °C

Weight and Dimensions

Weight	355 g
Door station dimensions (WxDxH)	180 x 140 x 22.4 mm
