HIKVISION DS-KV8402-IM User Manual

Video Intercom Door Station·User Manual
16

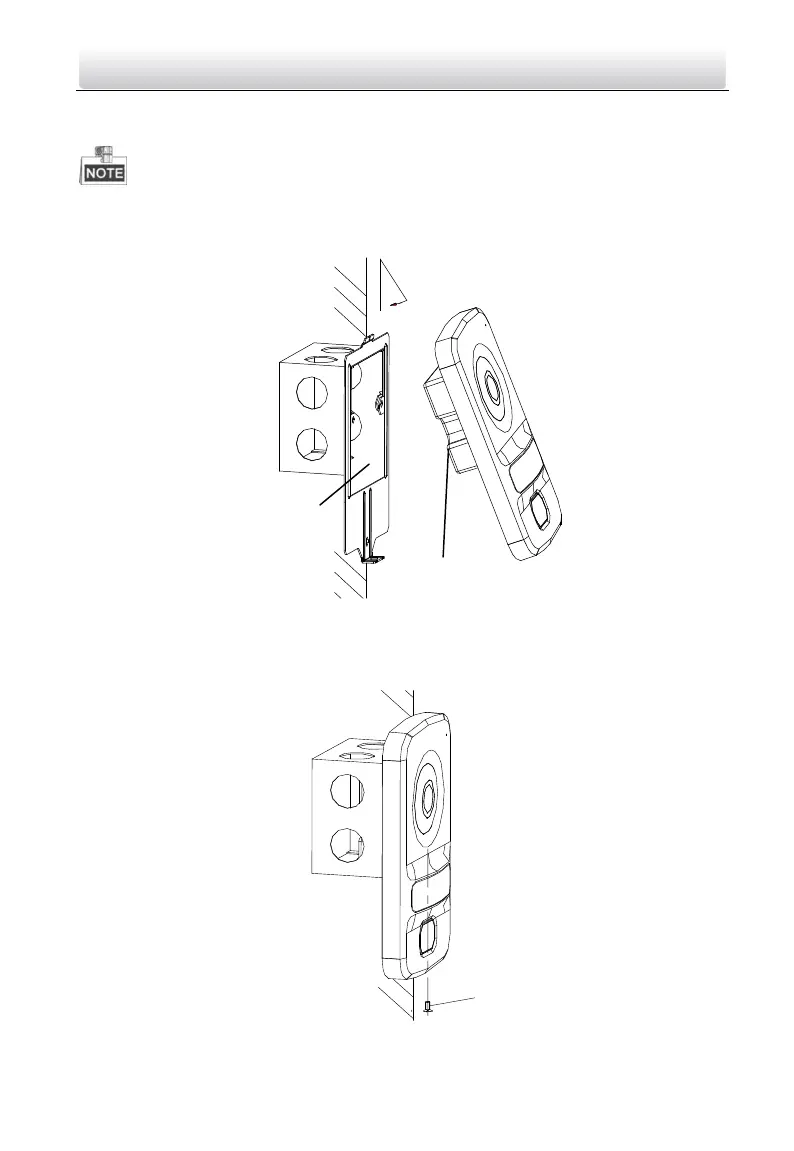

6. After installing the installation plate, install the door station by inserting the rear
component into the hollow area of the installation plate.
While inserting the door station into the installation plate, incline the device by 5~10°,
as shown in the figure below.
Hollow Area
Rear Component
Figure 5-8 Install the Door Station (DS-KV8102-XP)
7. Secure the door station by inserting the fixing screw according to the direction of the
arrow of the figure below.
KM3 Screw
Figure 5-9 Secure the Door Station (DS-KV8102-XP)

HIKVISION DS-KV8402-IM Specifications

General

Brand	HIKVISION
Model	DS-KV8402-IM
Category	Intercom System
Language	English
