Video Intercom Door Station·User Manual
22

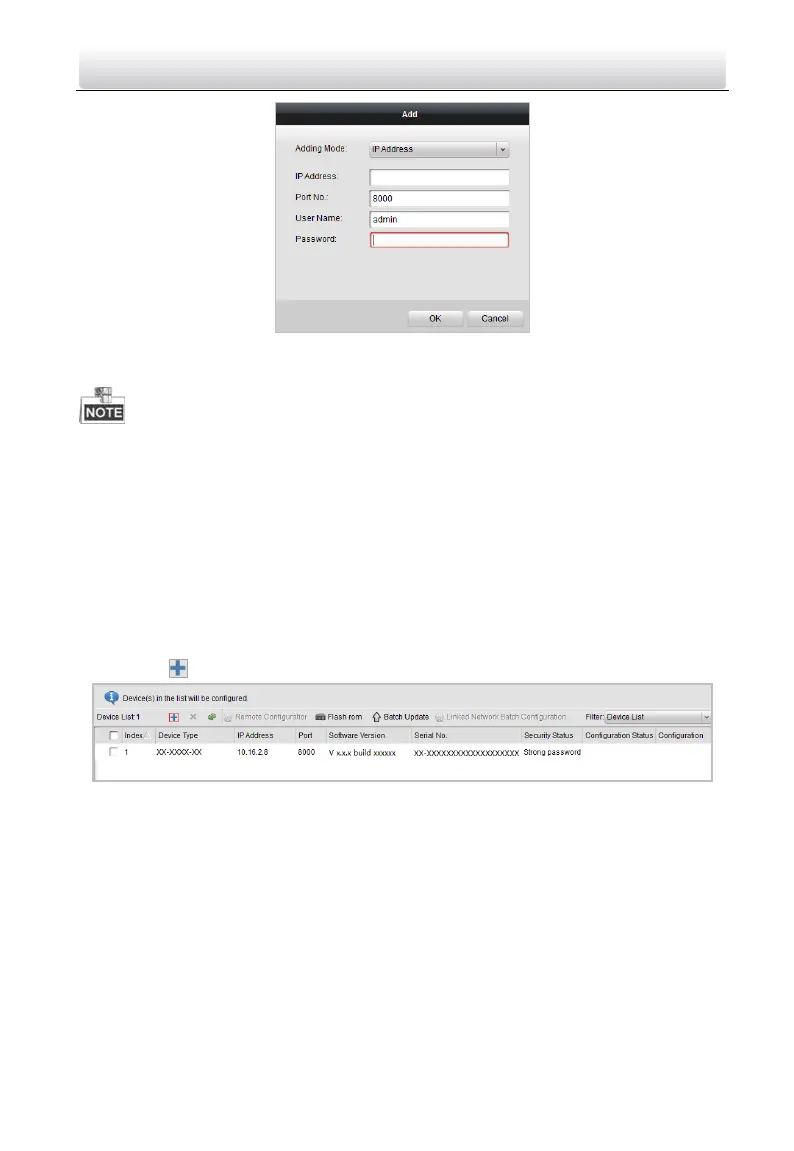

Figure 7-8 Adding by IP Address
4. Click the OK button to add the device to the device list.
You cannot add the device(s) to the device list if the user name and password are
not identical.
When you add devices by IP Address, IP Segment or Port No., the devices should
be online devices.
7.3.3 Adding by IP Segment
Purpose:
You can add many devices at once whose IP addresses are among the IP segment.
Steps:
1. Click the button to pop up the adding devices dialog box.
Figure 7-9 Adding Button
2. Select IP Segment in the adding mode drop-down list.
3. Set the Start IP Address and End IP Address.
4. Enter port No., user name, and password.
To Next Page
