4.3 Ceiling Mounng without Juncon Box
Steps
1.
Drill 4 screw holes on the ceiling according to the mounng template.
2.
Insert the plasc expansion sleeves into the screw holes, and x the mounng base with screws.
3.
Smooth the cables and turn the smoke detector clockwise
unl it snaps in place.

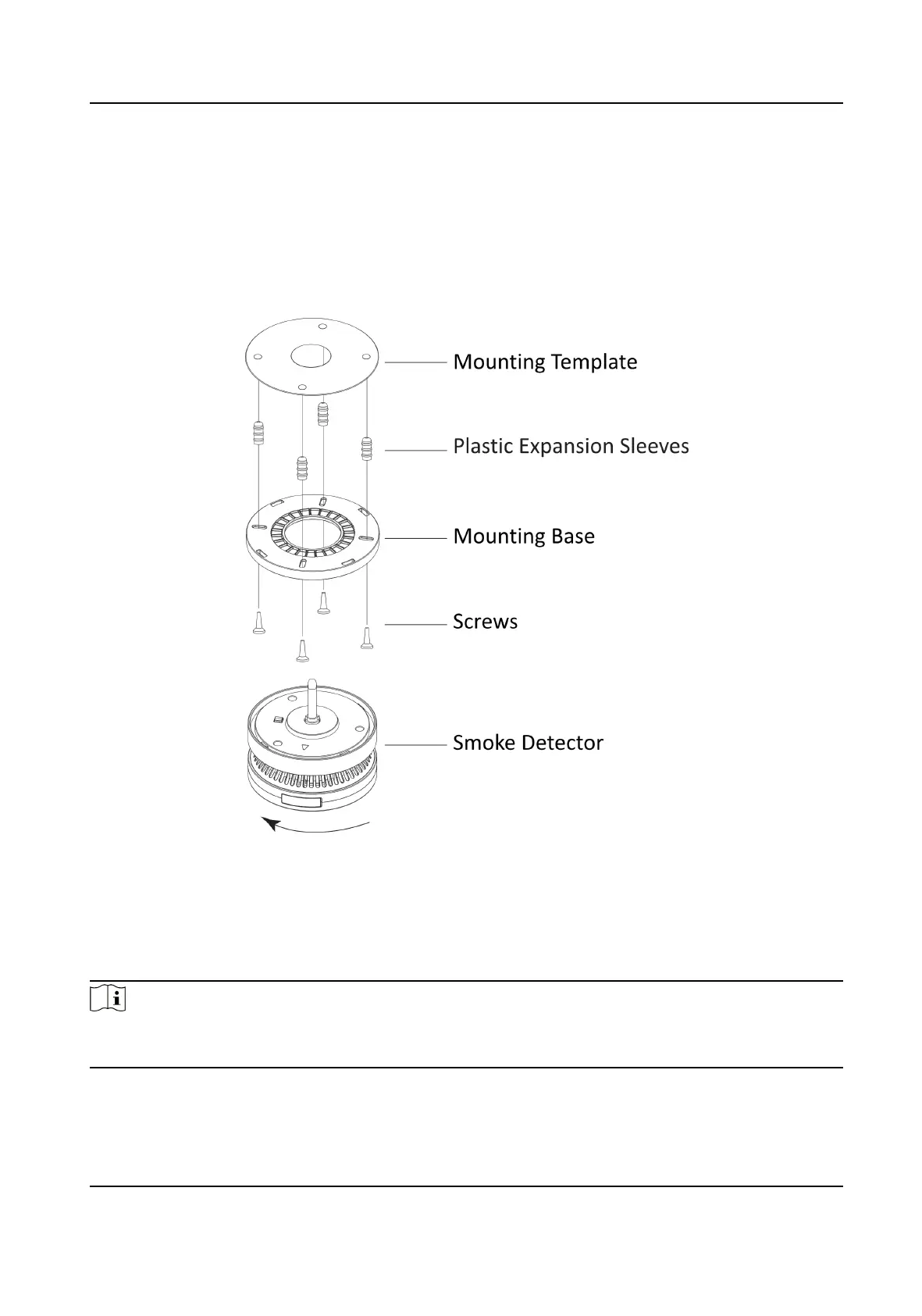

Figure 4-2 Installaon Illustraon
4.4 Ceiling
Mounng with Juncon Box
Steps
Note
Accessories that you need to prepare for installaon: Juncon box (Oponal). Ask our technique
supports and sales and purchase the juncon box.
1.
Drill 4 holes on the ceiling according to the mounng template.
2.
Insert the plasc expansion sleeves into the screw holes, and x the juncon box with screws.
