HIKVISION HiLook Series User Manual

Figure 2-18 Install the Trim Ring Back
11. Turn the trim ring clockwise to secure the camera.
Figure 2-19 Secure the Camera
2.2.2 Installation with Junction Box/Inclined Ceiling
Mount
Before you start:
 You need to purchase a junction box or inclined
ceiling mount in advance.
 Ceiling mounting with junction box and inclined
ceiling mount are similar. Following steps take
junction box as an example.
Steps:
1. Paste the drill template for junction box to the place
where you want to install the camera.
2. (Optional) For cement wall, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.

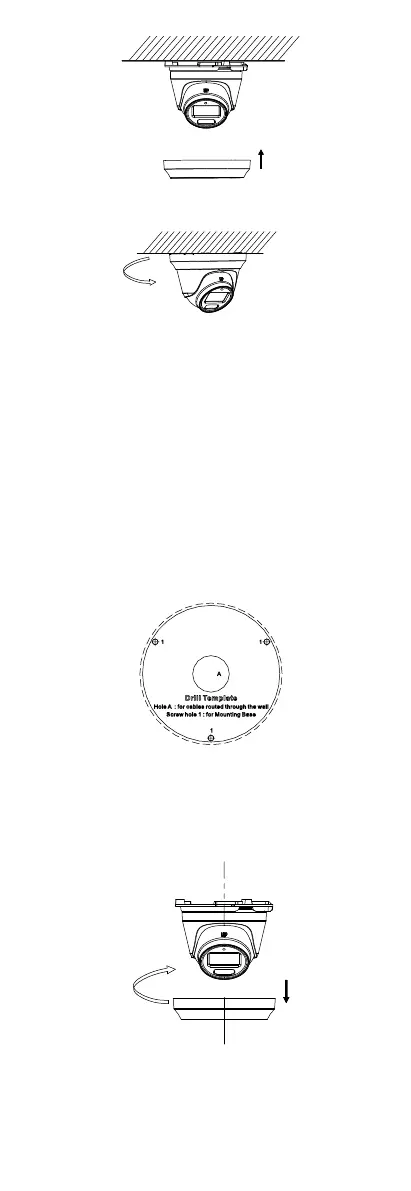

Figure 2-20 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the wall.
4. Turn the trim ring counterclockwise to remove it
from the camera.
Figure 2-21 Remove the Trim Ring
5. Take apart the junction box.
6. Fix the camera onto the junction box cover with
three PM4 × 10 screws.

HIKVISION HiLook Series Specifications

General

Power Supply	12 VDC
Video Compression	H.264/H.265
Analog Video Input	Depends on model
CVBS Input	Depends on model
Video Output	HDMI/VGA
Audio Compression	G.711
Audio Input	Depends on model
Audio Output	Depends on model
Two-Way Audio	Depends on model
Hard Disk	SATA
Capacity	Up to 10TB (depends on model)
Network Interface	RJ45 10M/100M
USB Interface	USB 2.0
Consumption	Depends on model
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Dimensions	Depends on model
Weight	Depends on model
HDTVI Input	Depends on model
AHD Input	Depends on model
HDCVI Input	Depends on model
IP Video Input	Depends on model
