The human operation region (ET region) should occupy 1/5 or above of the whole image.
The principle is that when a person is withdrawing cash, you can see the feet or body of the
person from the camera.

The operation panel detection region (DT region) should cover the important regions
including the card reader region, cash out region, keyboard, etc.
1.2 Typical Incorrect Installation of Panel Mode

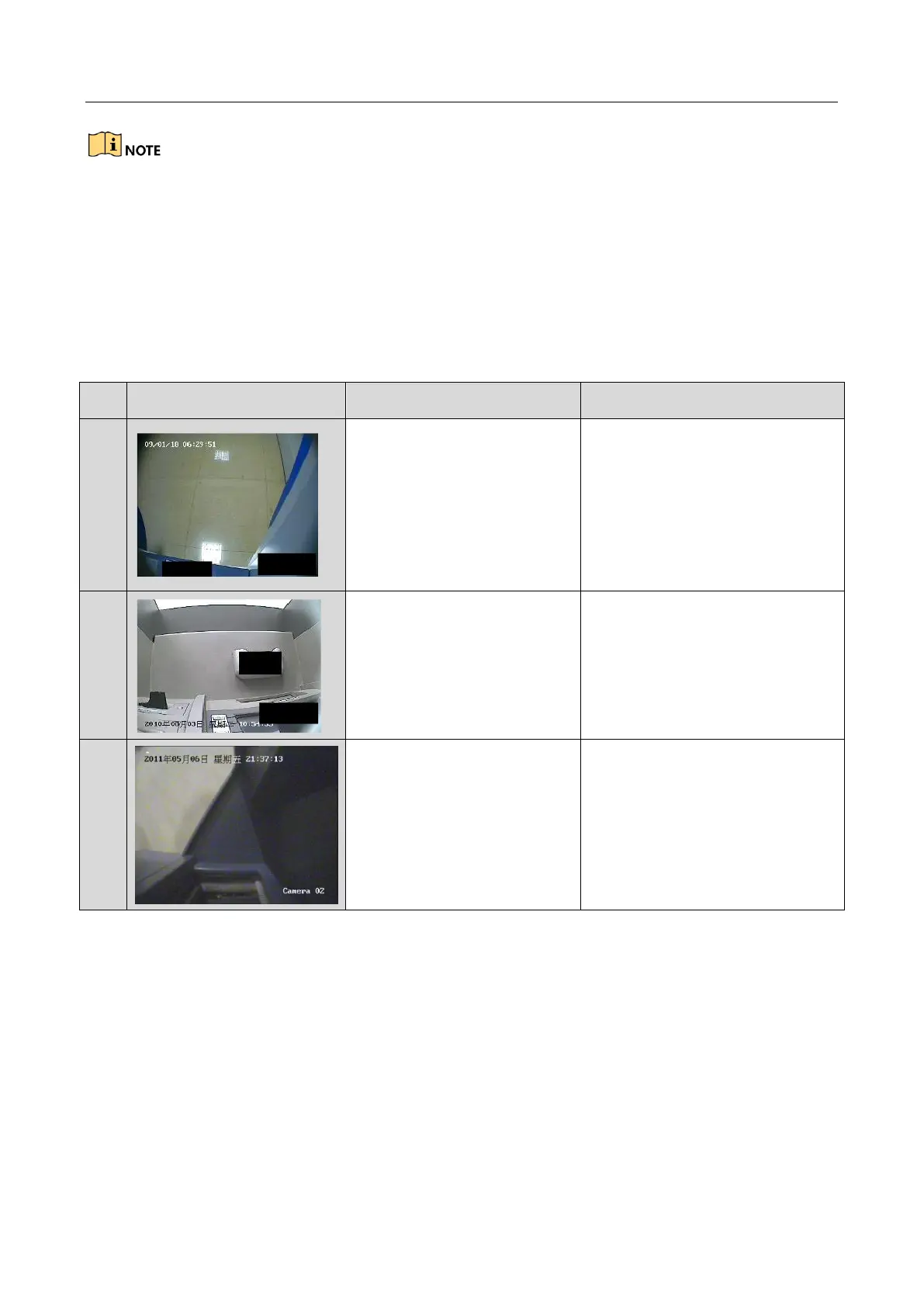

Table 1-1 Typical Incorrect Installation of Panel Mode
1.3 Camera Installation for Human Face Mode
In human face mode, the camera is used to monitor the facial characteristics of the ATM operator.
The installation requirements are as below.
 The camera should monitor the front of the human face clearly for 24 hours, and the human
face should be in the center of the monitoring filed.
 The proportion of the human face width and height in the image should be in the range of
0.15 × 0.15 to 0.55 × 0.55. The optimum human face size in CIF resolution should be in the
No.
Problems
Suggestions
1
The operation panel
detection region (DT region)
is too small in the image.
The camera cannot monitor
the events such as sticking
scrip and installing scanner
effectively.
Reinstall the camera to enlarge
the monitoring region of the
operation panel.
2
The human operation region
(ET region) is too small.
Reinstall the camera to enlarge
the monitoring region of human
operation.
3
The camera for monitoring
the cash out region is
installed on the side of the
region, which does not
conform to the panel
detection conditions.
The video of cash out does not
fit for the sticking scrip
detection. It is recommended to
install a camera above the ATM
panel to monitor the panel for
sticking scrip detection.
