HIKVISION iDS-TCV500-BI User Manual

Network Traffic Camera • User Manual
14

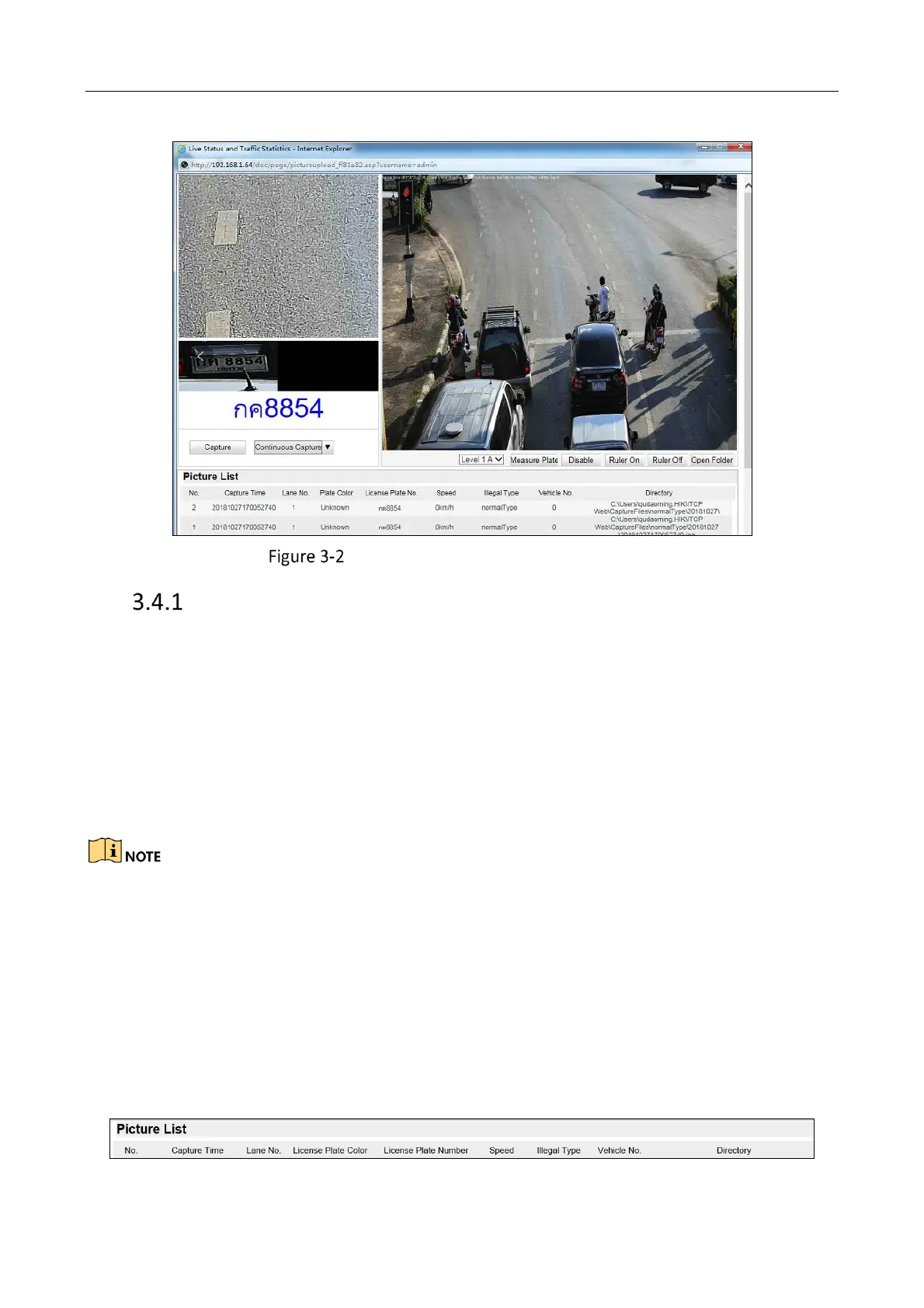

Real-Time Status and Traffic Flow Statistics
Scene Shot Area
 Arm the device.
− Level 1 Arming: The device is allowed to connect to only one data storage device for image,
video and information uploading. It is recommended that when you
develop products, that is, if you use SDK, level 1 arming is the only option.
− Level 2 Arming: The device is allowed to connect to three data storage devices for image
and information uploading, such as PC, platform and terminal server.
− Disarming: The device is not allowed to connect to any data storage devices.
Level 2 Arming is recommended for debugging. Because when the device is running, Level 1
Arming cannot be activated.
 Measure Plate: Measure the pixel of the captured license plate. You can click Disable to
disable the function.
 Ruler On: Enable ruler to measure the length of the captured license plate. You can click Ruler
Off to disable the function.
 Open Folder: Open the folder that saves the captured pictures.
 Capture: Click Capture to capture the picture, and the captured pictures will be listed in the
Picture List.

HIKVISION iDS-TCV500-BI Specifications

General

Card reader integrated	Yes
Maximum memory card size	128 GB
Maximum resolution	2464 x 2056 pixels
Image quality adjustment	Saturation, Brightness, Contrast, Sharpness, DNR
Video compression formats	H.264, H.265
Placement supported	Outdoor
Signal-to-Noise Ratio (SNR)	60 dB
Number of users	32 user(s)
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Focus	Motorized/Manual
Minimum illumination	0.001 lx
Housing material	Aluminum
International Protection (IP) code	IP66
