HIKVISION iDS-TCV500-BI User Manual

Network Traffic Camera • User Manual
37

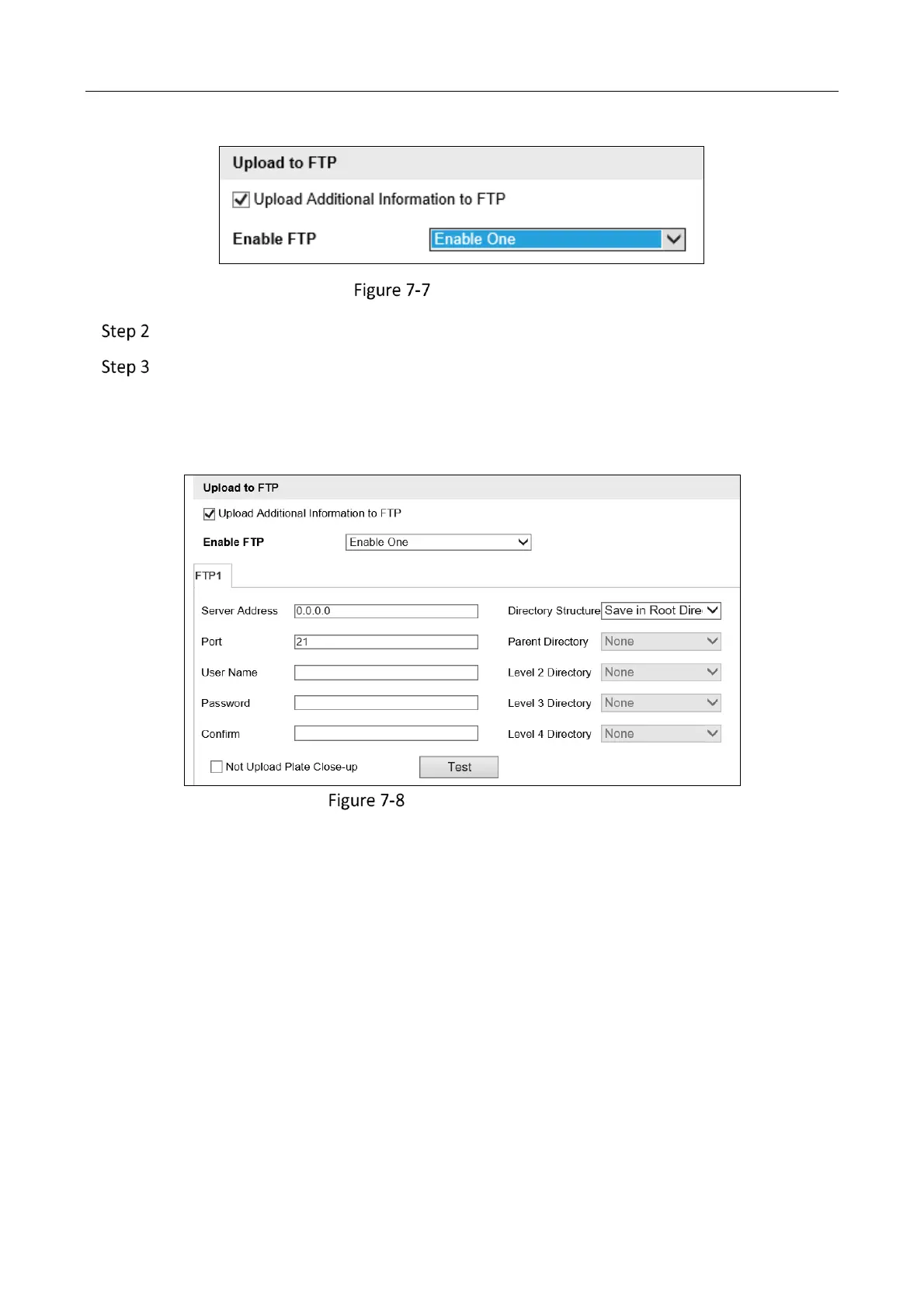

FTP Configurations
Enable Upload Additional Information to FTP to enable the uploading function.
Select the FTP uploading mode.
 Disable: No data will be uploaded to FTP.
 Enable One: Data can be uploaded to one FTP server.
1) Select Enable One.
Upload to One FTP Server
2) Set the FTP server parameters, including Server Address, Port, User Name, and
Password.
3) Select the Directory Structure to save the files. Save in Root Directory, Save in Parent
Directory, and Save in Level 2/3/4 Directory are selectable.
4) Select the content in different directories. For the Parent Directory, you can select
Device Name, Device No., and Device IP Address. For the Level 2/3/4 Directory, you
can select Camera Name, Camera No., Device IP Address, etc.
5) (Optional) Check Not Upload Plate Close-up, the close-up of the license plate will not
be uploaded to the FTP server.
 Enable Two: Data can be uploaded to two FTP servers.
1) Select Enable Two.

HIKVISION iDS-TCV500-BI Specifications

General

Card reader integrated	Yes
Maximum memory card size	128 GB
Maximum resolution	2464 x 2056 pixels
Image quality adjustment	Saturation, Brightness, Contrast, Sharpness, DNR
Video compression formats	H.264, H.265
Placement supported	Outdoor
Signal-to-Noise Ratio (SNR)	60 dB
Number of users	32 user(s)
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Focus	Motorized/Manual
Minimum illumination	0.001 lx
Housing material	Aluminum
International Protection (IP) code	IP66
