HIKVISION iDS-TCV500-BI User Manual

Network Traffic Camera • User Manual
68

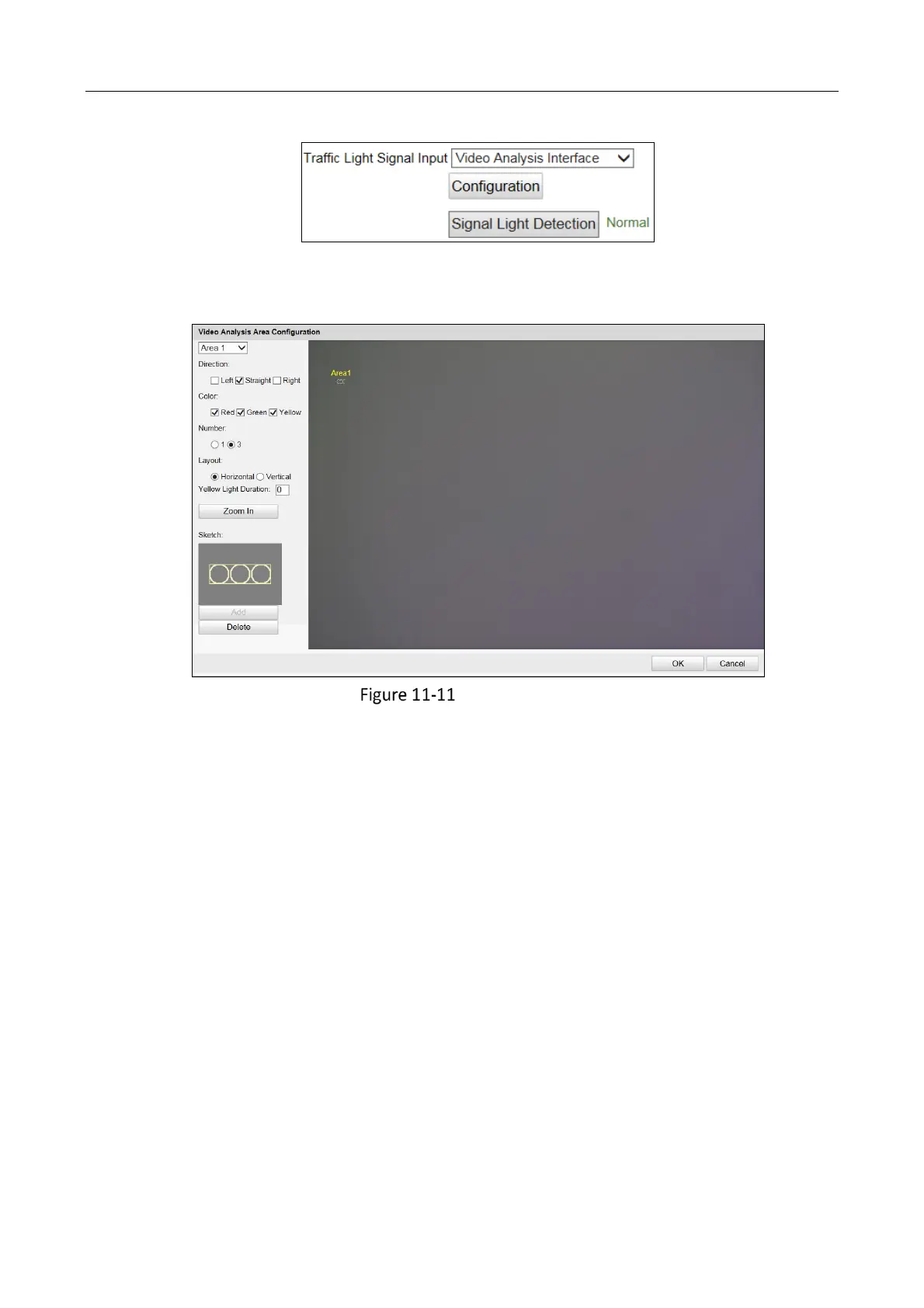

Figure 1-1 Video Analysis Interface Configuration
1) Click Configuration to enter the page below.
Video Analysis
2) Select Region.
3) Set the parameters according to the actual conditions.
− Signal Lamp Guidance: It refers to the driving direction represented by the signal lights in
the detection area.
− Signal Lamp Color: You can select signal lamp color.
− Signal Lamp Number: You can select one or three light(s).
− Light Direction: You can select horizontal or vertical light direction.
− Zoom In: Click it and a red frame will appear on the right area. Click the red frame to zoom
in.
− Yellow Light Duration: You can select yellow light duration.
− Add Traffic Light: After setting signal light guidance, signal lamp color number of lights
and light direction, you can click Add Traffic Light to add it in the area.
− Delete Current Traffic Light: Click it to delete the traffic light.
4) Click OK to save the settings.
 Network Mode

HIKVISION iDS-TCV500-BI Specifications

General

Card reader integrated	Yes
Maximum memory card size	128 GB
Maximum resolution	2464 x 2056 pixels
Image quality adjustment	Saturation, Brightness, Contrast, Sharpness, DNR
Video compression formats	H.264, H.265
Placement supported	Outdoor
Signal-to-Noise Ratio (SNR)	60 dB
Number of users	32 user(s)
Supported network protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Focus	Motorized/Manual
Minimum illumination	0.001 lx
Housing material	Aluminum
International Protection (IP) code	IP66
