HIKVISION iVMS-4200 User Manual

Network Camera User Manual
86

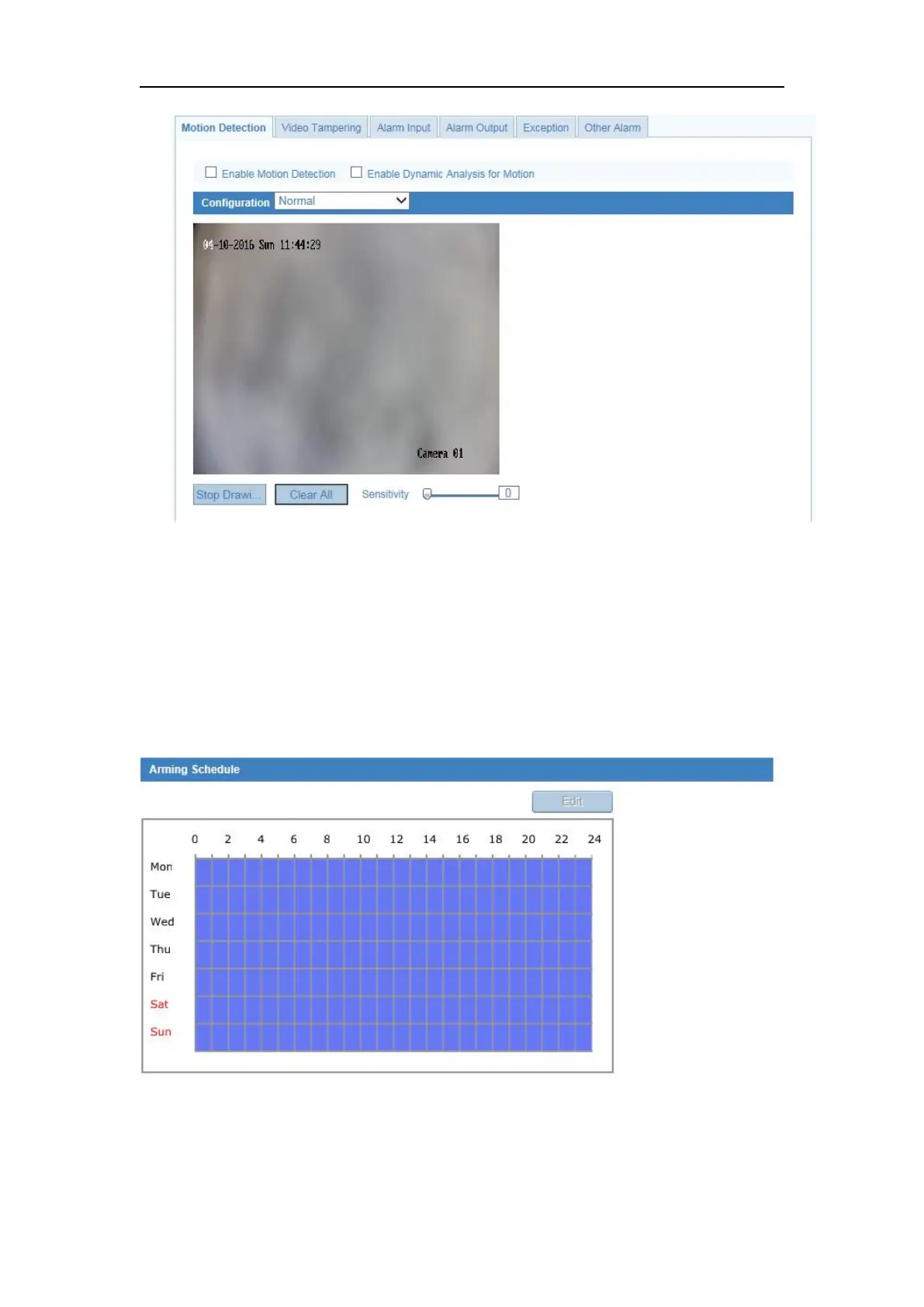

Figure 11-1 Enable Motion Detection
4. Click Draw Area. Click and drag the mouse on the live video to draw a motion
detection area. Click Stop Drawing to finish drawing one area.
5. (Optional) Click Clear All to clear all of the areas.
6. (Optional) Move the slider to set the sensitivity of the detection.
Task 2: Set the Arming Schedule for Motion Detection
Figure 11-2 Arming Schedule
Note: time period, you can adjust the time period to the desired time by either
moving the time bar or input the exact time period.

HIKVISION iVMS-4200 Specifications

General

Max. Number of Devices	256
Supported OS	Windows
Compatible Devices	Hikvision IP Cameras, DVRs, NVRs
Features	Alarm Management
Multi-Screen Display	Yes
Remote Access	Yes
Storage Options	NAS
Language Support	Multiple languages
