Network Camera User Manual
98
1. Enter the Intrusion Detection settings interface, Configuration > Advance
Configuration >Smart Event>Intrusion Detection.

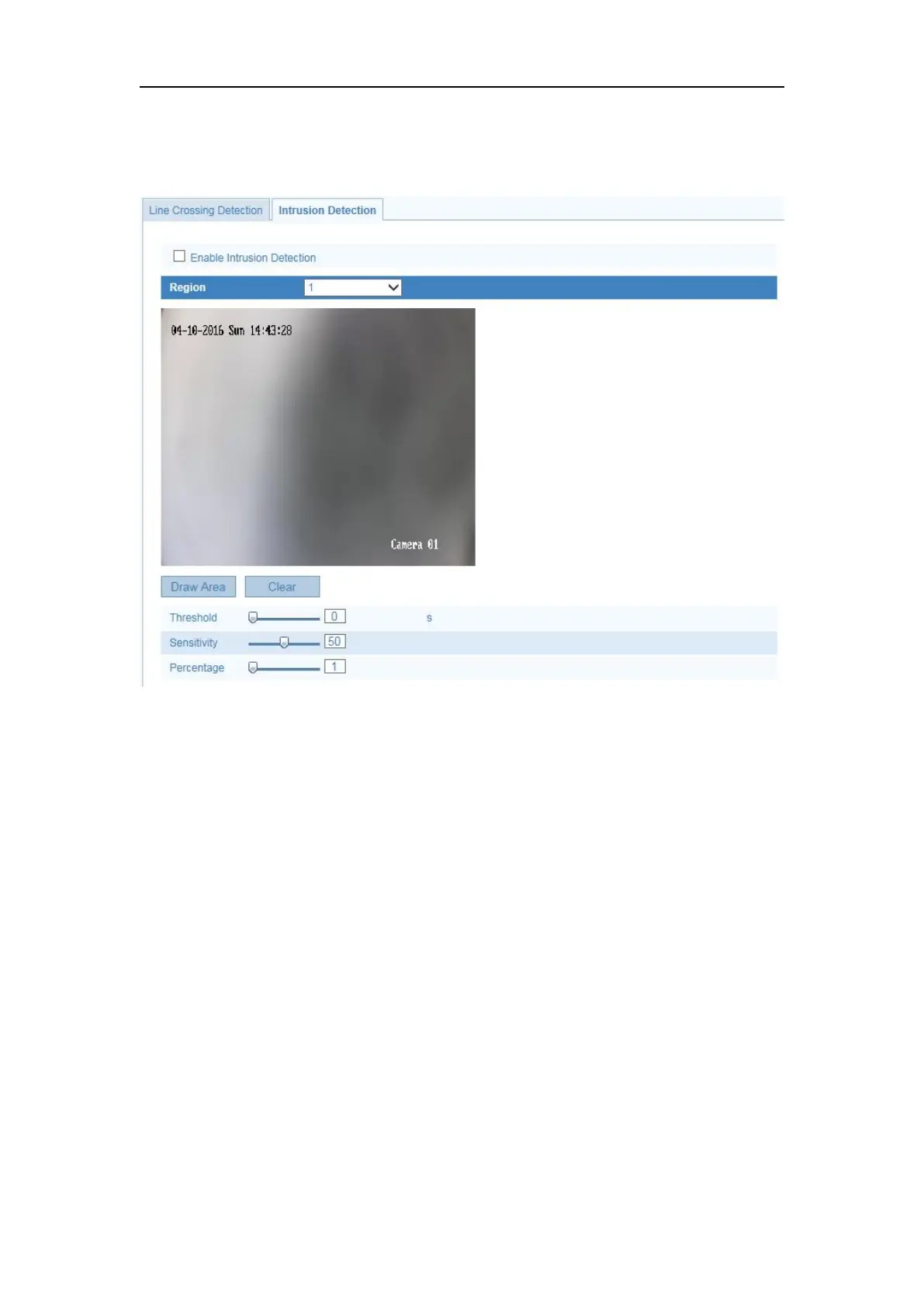

Figure 12-2 Intrusion Detection
2. Check the checkbox of Enable Intrusion Detection to enable the function.
3. Select the region from the drop-down list for detection settings.
4. Click Area Settings tab and click Draw Area button to start the region drawing.
5. Click on the live video to specify the four vertexes of the detection region, and
right click to complete drawing.
6. Set the time threshold, detection sensitivity and object percentage for intrusion
detection.
Threshold: Range [0s-10s], the threshold for the time of the object loitering in
the region. If you set the value as 0, alarm is triggered immediately after the
object entering the region.
Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the
object which can trigger the alarm. When the sensitivity is high, a very small
