Chapter 1 Introduction | Hillstone
Hillstone SG-6000 E-Series Hardware Reference Guide
SG-6000-E5960, SG-6000-E5760 and SG-600-E5660 have the same front panel.
The front panel consist of 4 Gigabit Ethernet ports, 4 SFP ports, 1 USB port, 1 HA
port, 1 Management port, 1 Console port, 1 Auxiliary port, 1 CLR button, 4 general
expansion slots and several LED indicators. The standard power supply for SG-
6000-E5960/E5760 is dual power supplies, and the product with single power
supply is also available.

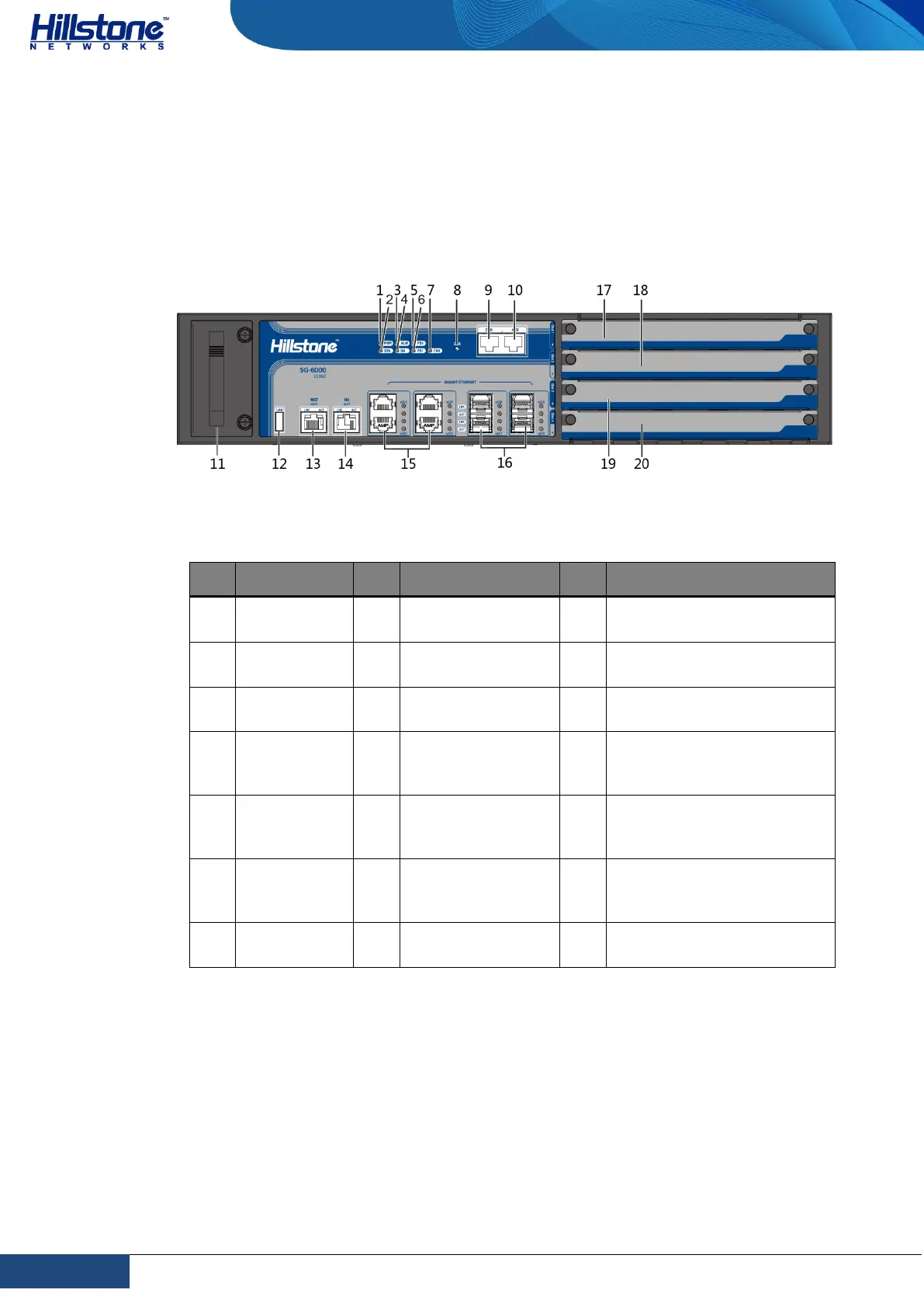

Figure 1-3：SG-6000-E5960 Front Panel
Table 1-3: SG-6000-E5960 Front Panel Description
No.
Label
No.
Label
No.
Label
1
PWR: Power
LED
8
CLR: CLR button
15
e0/2 - e0/5: Gigabit
Ethernet ports
2
STA: Status
LED
9
CON: Console
port
16
e0/6 - e0/9: SFP ports
3
ALM: Alarm
LED
10
AUX: Auxiliary
port
17
Slot 1: General expansion
slot
4
HA: HA
status LED
11
Fan tray
18
Slot 2: General expansion
slot (not for storage
expansion module)
5
PS0: Power
supply PS0
LED
12
USB: USB port
19
Slot 3: General expansion
slot (not for storage
expansion module)
6
PS1: Power
supply PS1
LED
13
MGT (e0/0):
Management port
20
Slot 4: General expansion
slot (not for storage
expansion module)
7
FAN: Fan
LED
14
HA (e0/1): HA
port
-
-
SG-6000-E5568, SG-6000-E5560, SG-6000-E5268, SG-6000-E5260, SG-6000-
E5168 and SG-6000-E3965 have the same front panel. The front panel consists of 4
Gigabit Ethernet ports, 4 SFP ports, 2 SFP+ ports, 1 USB port, 1 Console port, 1
Auxiliary port, 1 Management port, 1 HA port, 1 CLR button, 4 general expansion
slots, 1 fan tray, and some LED indicators.
Figure 1-4: SG-6000-E5560 Front Panel
