Chapter 1 Introduction | Hillstone
Hillstone SG-6000 E-Series Hardware Reference Guide
Table 1-14: Back Panel Description of SG-6000-E1600
No.
Label
No.
Label
No.
Label
1
DC POWER: DC
power interface
3
CON: Console port
5
e0/0 - e0/8: Gigabit
Ethernet port
2
CLR: CLR button
4
USB: USB port
6
Security keyhole
SG-6000-E1100 (WLAN version) uses the power adapter. The back panel of SG-
6000-E1100 (WLAN version) has 1 power supply socket, 1 Console port, 1 CLR
button, 9 Gigabyte Ethernet ports, 1 USB port, 1 grounding screw, 1 security
keyhole, and 2 SMA connectors for WLAN antennas. Figure 1-15 illustrates the back
panel of this model.

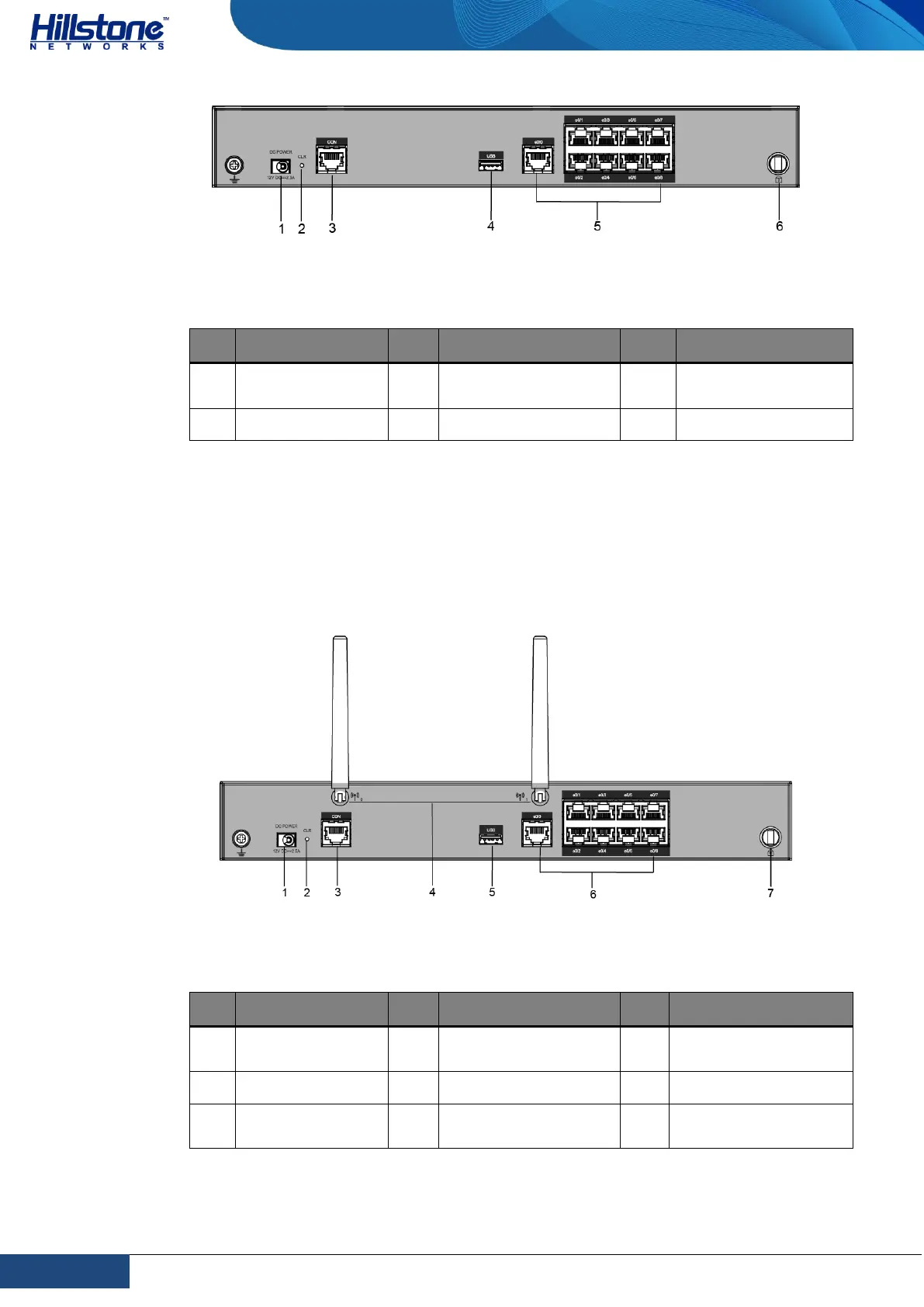

Figure 1-19: SG-6000-E1100 (WLAN version) Back Panel
Table 1-15: Back Panel Description of SG-6000-E1100 (WLAN version)
No.
Label
No.
Label
No.
Label
1
DC POWER: DC
power interface
4
SMA connectors for
WLAN antennas
7
Security keyhole
2
CLR: CLR button
5
USB: USB port
-
-
3
CON: Console
port
6
e0/0 - e0/8: Gigabit
Ethernet port
-
-
