Chapter 1 Introduction | Hillstone
Hillstone SG-6000 E-Series Hardware Reference Guide
Table 1-5: SG-6000-E3960 Front Panel Description
No.
Label
No.
Label
No.
Label
1
PWR: Power
LED
6
CON: Console
port
11
e0/0 - e0/5: Gigabit
Ethernet ports (e0/0 and
e0/1 supports the
Bypass function)
2
STA: Status
LED
7
AUX: Auxiliary
port
12
e0/6 - e0/9: SFP ports
3
ALM: Alarm
LED
8
USB: USB port
13
xe0/10 – xe0/11: SFP+
ports
4
HA:HA status
LED
9
MGT:
Management port
14
Slot 1: General
expansion slot
5
CLR: CLR
button
10
HA: HA port
15
Slot 2: General
expansion slot (not for
storage expansion
module)
SG-6000-E3668, SG-6000-E3662, SG-6000-E3660, SG-6000-E2868 and SG-6000-
E2860 have the same front panel. The front panel consists of 6 Gigabit Ethernet
ports, 4 SFP ports, 1 USB port, 1 Console port, 1 Auxiliary port, 1 Management
port, 1 HA port, 1 CLR button, 2 general expansion slots and several LED indicators.

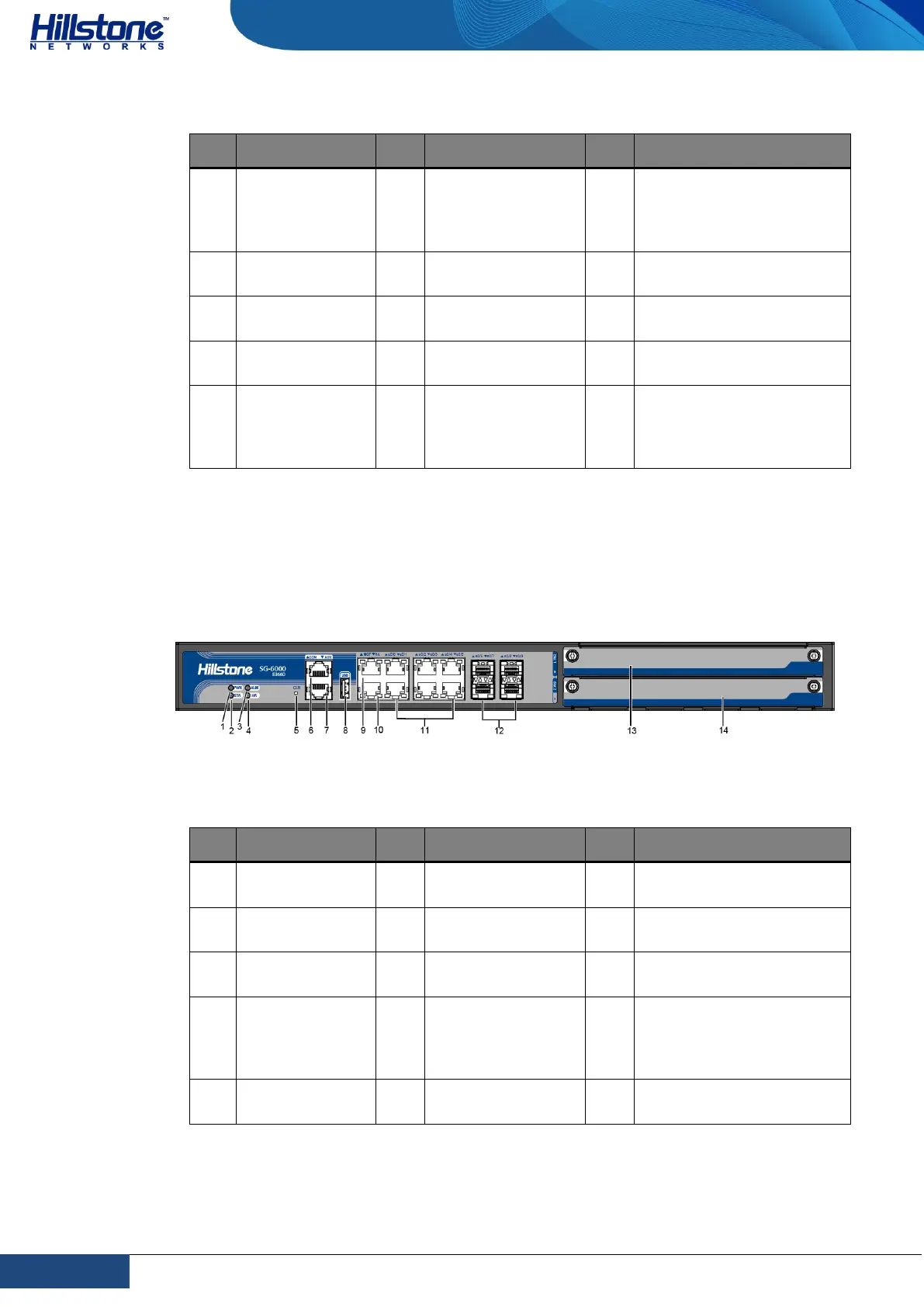

Figure 1-6: Front Panel of SG-6000-E3662
Table 1-6: SG-6000-E3662 Front Panel Description
No.
Label
No.
Label
No.
Label
1
PWR: Power
LED
6
CON: Console
port
11
e0/0 - e0/5: Gigabit
Ethernet ports
2
STA: Status
LED
7
AUX: Auxiliary
port
12
e0/6 - e0/9: SFP ports
3
ALM: Alarm
LED
8
USB: USB port
13
Slot 1: General
expansion slot
4
HA: HA status
LED
9
MGT:
Management port
14
Slot 2: General
expansion slot (not for
storage expansion
module)
5
CLR: CLR
button
10
HA: HA port
-
-
