Chapter 5 Hardware Maintenance and Replacement | Hillstone
Hillstone SG-6000 E-Series Hardware Reference Guide

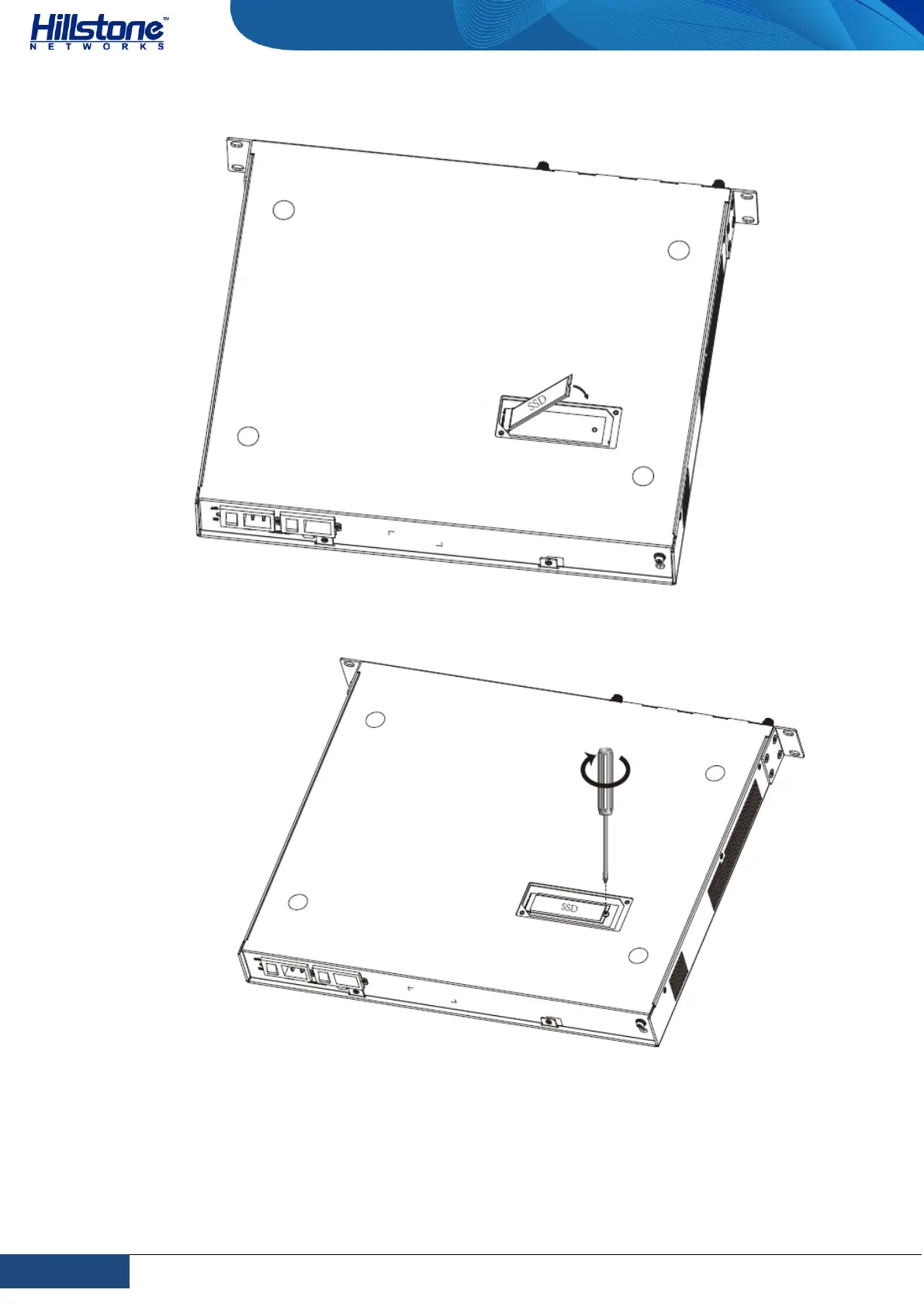

Figure 5-4: Placing the Hard Disk Module
5. Use the screw in the hard disk module package to fix the hard disk module.
Figure 5-5: Fixing the Hard Disk Module
6. Use a screwdriver to re-install the blank panel into the hard disk slot.
