Chapter 1 Introduction | Hillstone
Hillstone SG-6000 E-Series Hardware Reference Guide

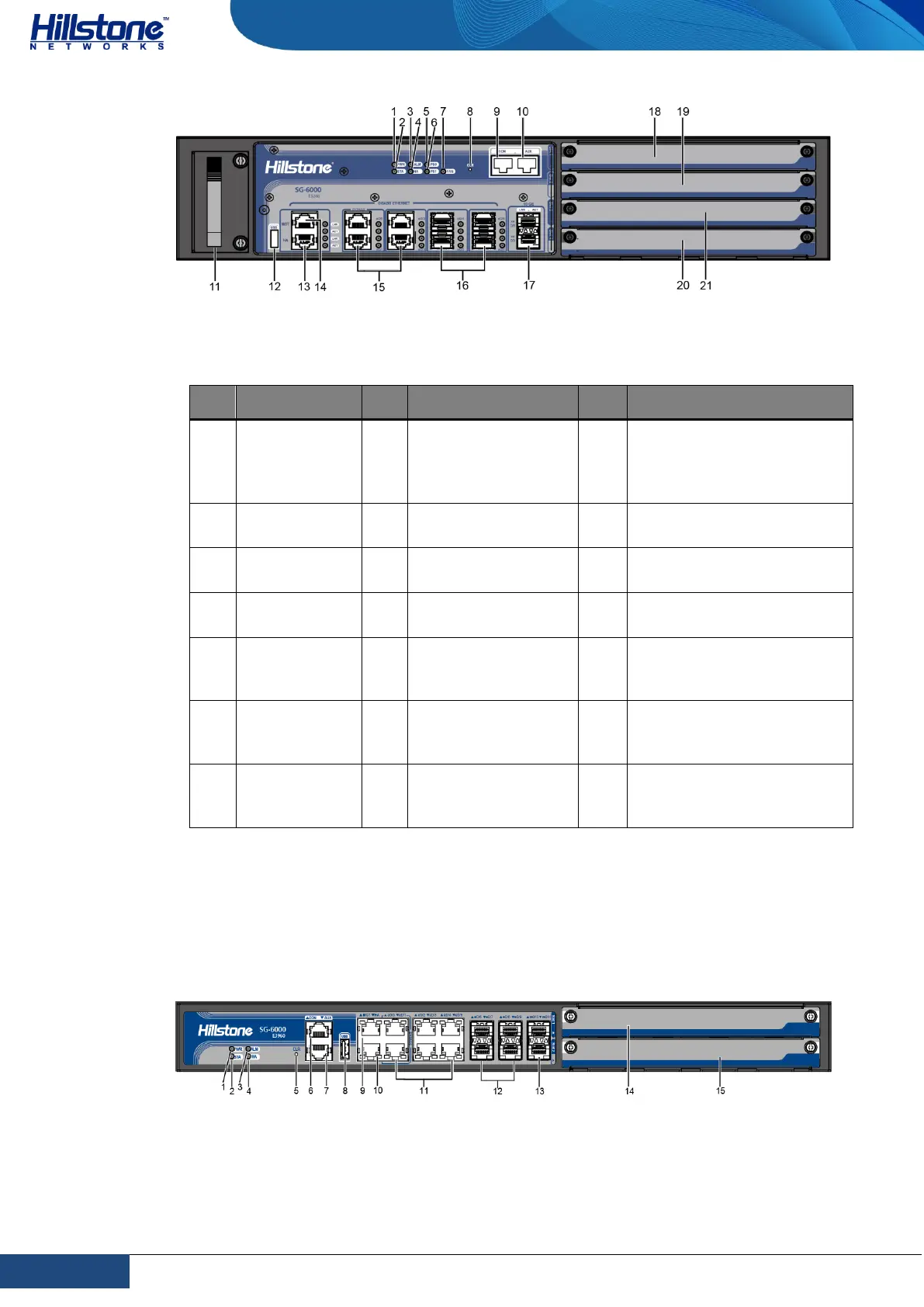

Table 1-4: SG-6000-E5560 Front Panel Description
No.
Label
No.
Label
No.
Label
1
PWR: Power
LED
8
CLR: CLR button
15
e0/ - e0/3: Gigabit
Ethernet ports (e0/2 and
e0/3 support the Bypass
function)
2
STA: Status
LED
9
CON: Console port
16
e0/4 - e0/7: SFP ports
3
ALM: Alarm
LED
10
AUX: Auxiliary port
17
xe08 - xe09: SFP+ ports
4
HA: HA
status LED
11
Fan tray
18
Slot 1: General expansion
slot
5
PS0: Power
supply PS0
LED
12
USB: USB port
19
Slot 2: General expansion
slot (not for storage
expansion module)
6
PS1: Power
supply PS1
LED
13
HA: HA port
20
Slot 3: General expansion
slot (not for storage
expansion module)
7
FAN: Fan LED
14
MGT: Management
port
21
Slot 4: General expansion
slot (not for storage
expansion module)
The front panel of SG-6000-E3968 and SG-6000-E3960 consists of 6 Gigabit
Ethernet ports, 4 SFP ports, 2 SFP+ ports, 1 USB port, 1 Console port, 1 Auxiliary
port, 1 Management port, 1 HA port, 1 CLR button, 2 general expansion slots and
several LED indicators.
Figure 1-5: Front Panel of SG-6000-E3960
