Hilti C7 Original Operating Instructions

English 5
The LED lights up red
LED does not light up.
No power supply or the charger is defective.
Unplug the supply cord from the power outlet and then plug the
supply cord into the power outlet again.
If the LED still does not light up, contact Hilti Service.

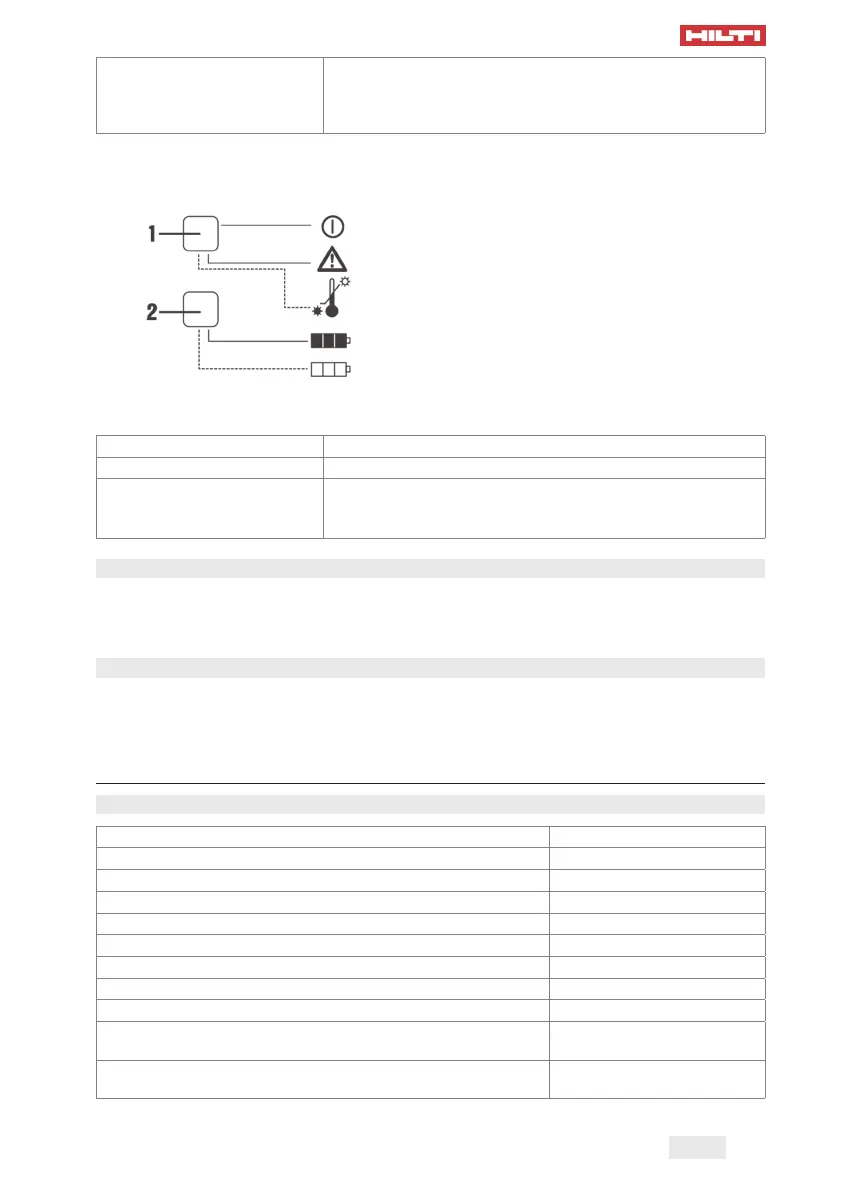

Charge state indicator (2)
LED flashes green The battery will be charged.
LED lights up green The battery is fully charged.
LED does not light up. The battery is not correctly plugged in or is defective.
Remove the battery and insert it again in the battery compartment.
If the LED still does not light up, contact Hilti Service.
3.3 Intended use
The product described is a battery charger for Hilti Li-ion batteries of the type B 7. It is designed to be
connected to power outlets providing an AC voltage (alternating current) of 220 to 240 volts.
The batteries approved for use with this product can be found in the technical data.
3.4 Items supplied
Charger, operating instructions.
Other system products approved for use with this product can be found at your local Hilti Store or at:
www.hilti.group.
4 Technical data
4.1 Product properties
Cooling
Cooling by convection
Mains (AC) voltage
220 V …240 V
AC frequency
50 Hz …60 Hz
Battery
Liion
Output voltage
7.2 V
Output power
12.6 W
Supply cord length
≈ 2 m
Weight
0.775 kg
Dimensions (L x W x H)
152 mm x 102 mm x 58 mm
Control
Electrical charging monitoring
and control via microcontroller
Protection class
Protection class II (double insu-
lated)
Printed: 03.12.2018 | Doc-Nr: PUB / 5069444 / 000 / 02
