Hilti SCW 22-A Manual

*2153714*
2153714 English 7
3 Description

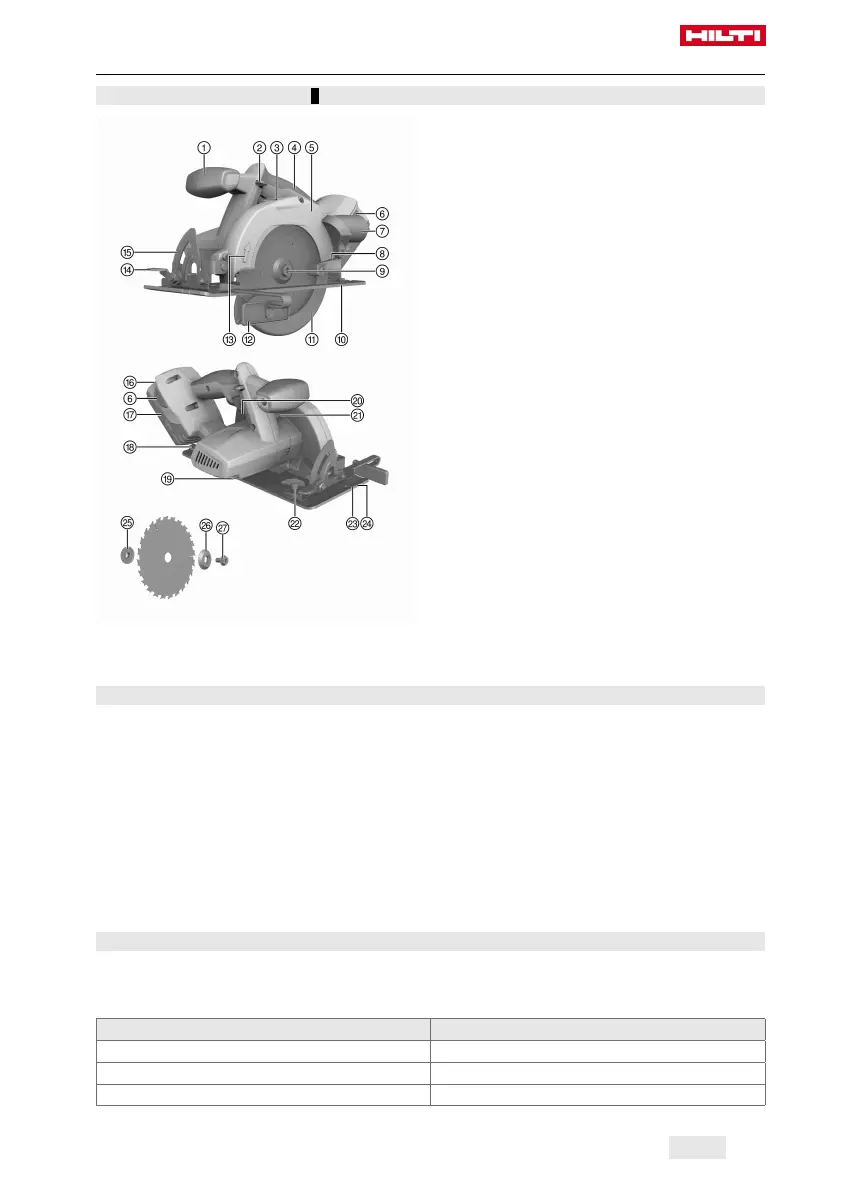

3.1 Overview of the product 1
@
Auxiliary grip
;
Switch-on interlock
=
On/off switch
%
Grip
&
Guard
(
Release buttons with additional function
(charge status display activation)
)
Hose connector (chip deflector)
+
Pivoting guard operating lever
§
Arbor
/
Base plate
:
Pivoting guard
∙
Fence
$
Direction-of-rotation arrow
£
Clamping lever for cutting angle adjustment
|
Cutting angle scale
¡
Charge state and fault display
Q
Battery
W
Clamping lever for cutting depth adjustment
E
Hex key
R
Cutting depth scale
T
Spindle lock button
Z
Clamping screw for fence
U
45° cutting line indicator
I
0° cutting line indicator
O
Mounting flange
P
Clamping flange
Ü
Clamping screw
3.2 Intended use
The product described is a cordless circular saw. It is designed for sawing wood or wood-like materials,
plastics, drywall panel, gypsum fiber board and composite materials.
The circular saw is equipped with a removable connector for an optional vacuum cleaner / dust removal
hose. This connector is designed to fit standard suction hoses. In order to connect the vacuum cleaner hose
to the saw, use of a suitable adapter may be necessary.
▶ The use of saw blades not in compliance with the given specification (e.g. diameter, speed of rotation,
thickness) or the use of cutting and grinding discs or blades made from high-alloy steel (HSS steel) is not
permissible. Sawing metals is not permissible.
▶ Do not use the product to cut tree branches or trunks.
▶ Use only Hilti Liion batteries from the B 18 / B 22 series with this product.
▶ Use only Hilti battery chargers of the C4/36 series with these batteries.
3.3 Liion battery display
The charge status of the Li-ion battery and malfunctions of the power tool are indicated by the display on
the Liion battery. The charge status of the Liion battery is displayed after pressing one of the two battery
release buttons.
Status Meaning
4 LEDs light. Charge status: 75 % to 100 %
3 LEDs light. Charge status: 50 % to 75 %
2 LEDs light. Charge status: 25 % to 50 %

Hilti SCW 22-A Specifications

General

Blade diameter	165 mm
Idle speed (max)	4000 RPM
Cutting depth (45º)	42 mm
Cutting depth (90º)	57 mm
Sound pressure level	93 dB
Vibration level (wood cutting)	1.2 m/s²
Product color	Black, Red
Country of origin	Germany
Dust extraction port	Yes
Power source	Battery
Diamond disc	-
Battery included	No
Quantity per shipping (inner) case	1 pc(s)

Weight and Dimensions

Package depth	898 mm
Package width	5400 mm
Package height	2000 mm
Package weight	1345 g
